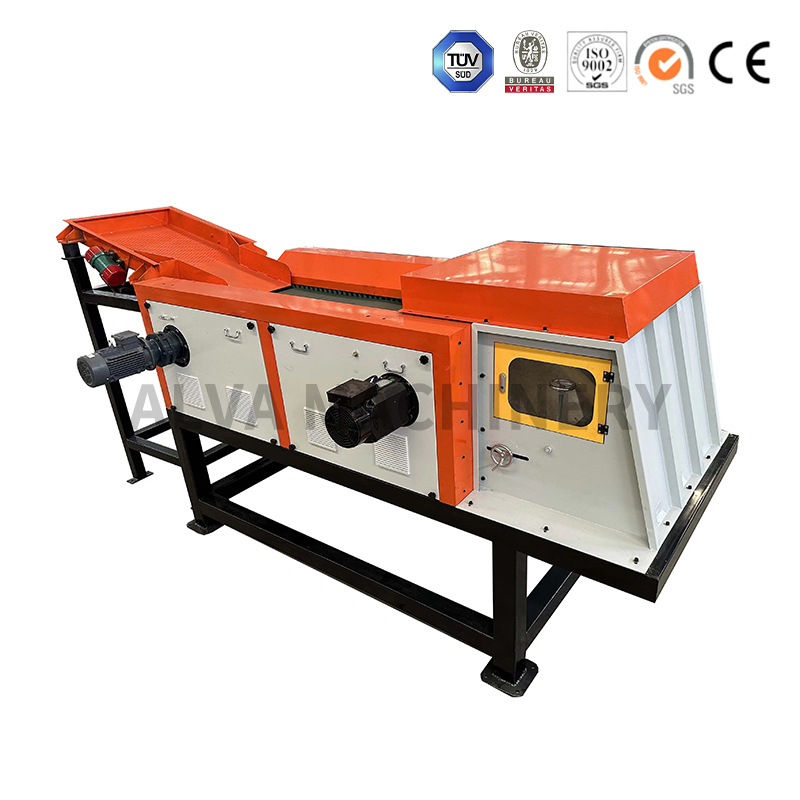

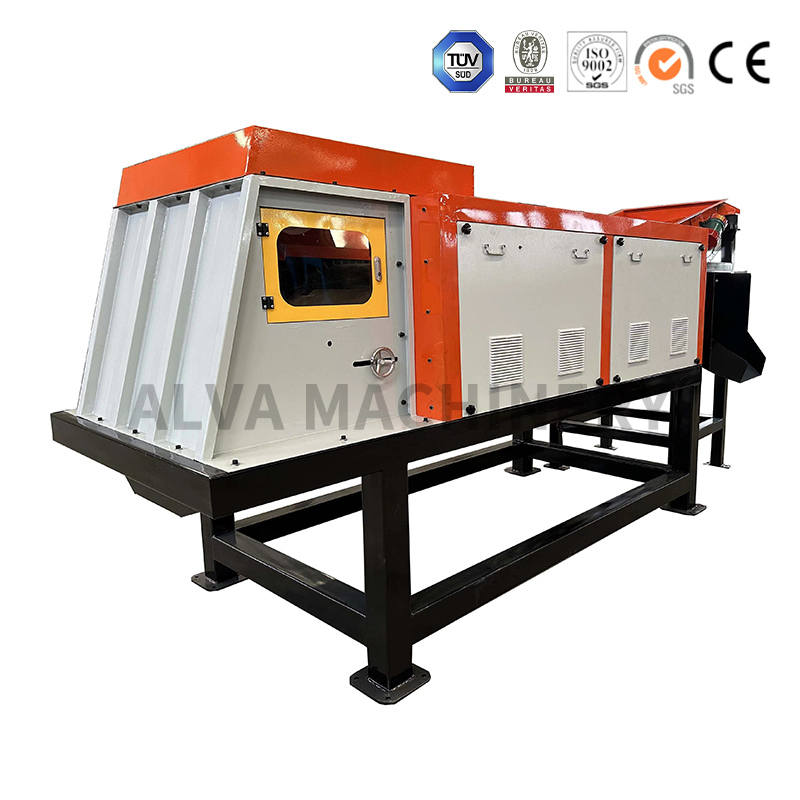

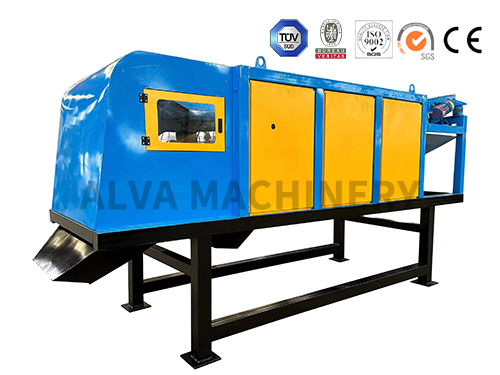

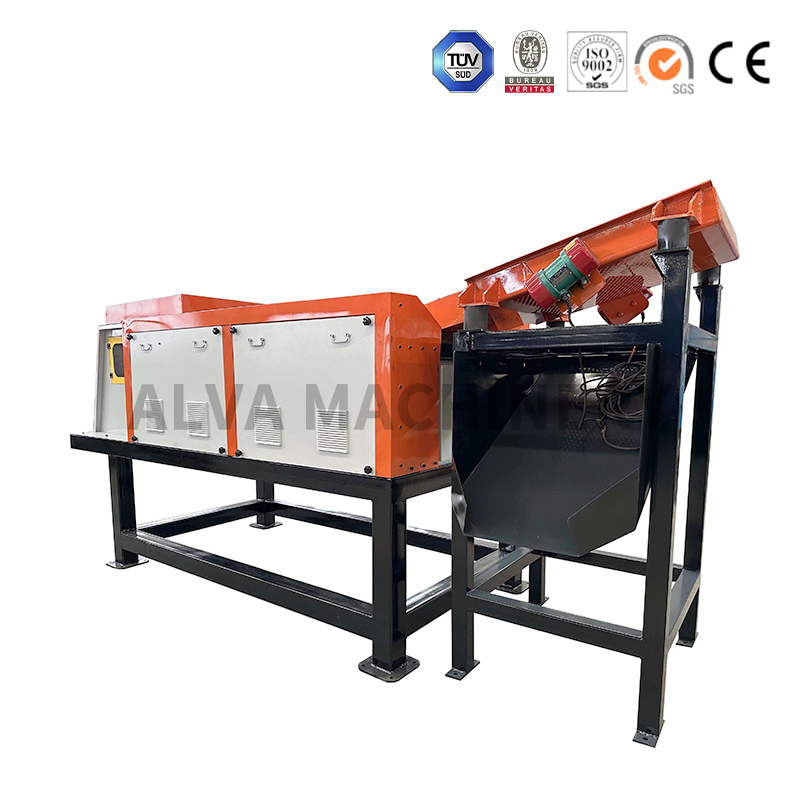

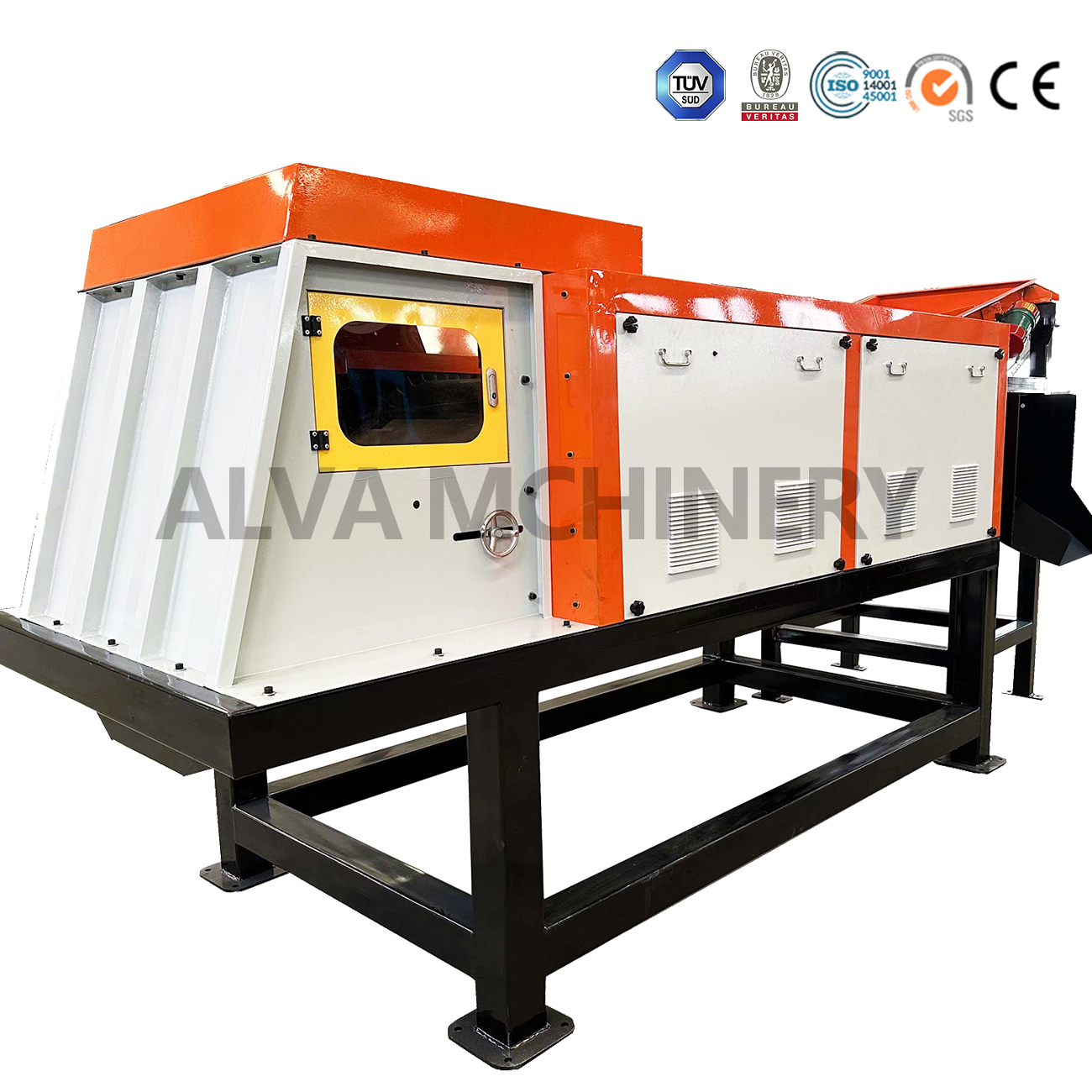

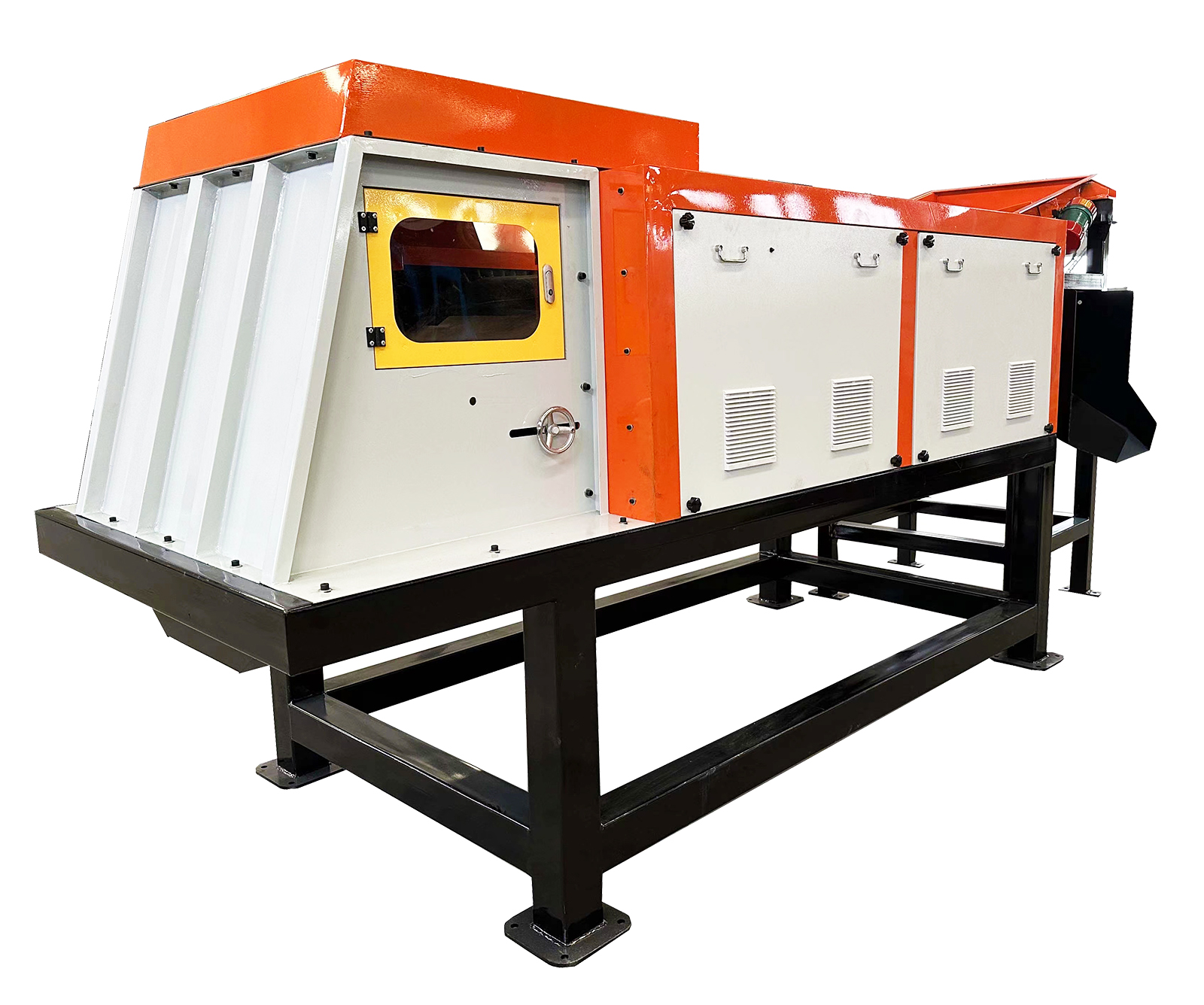

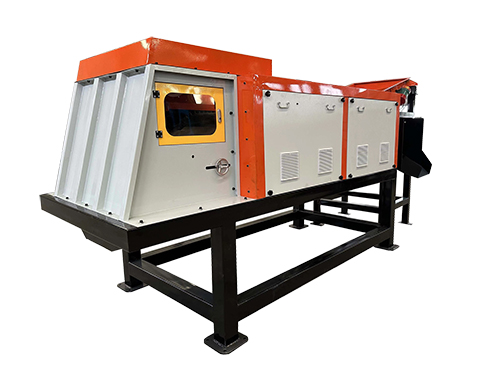

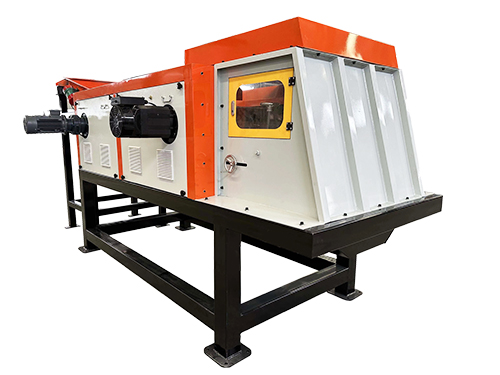

Eddy current sorter is a kind of equipment that realizes material classification and separation by using eddy current effect. It induces eddy current in the conductor material through alternating magnetic field, and realizes the separation of materials with different conductive properties by using the interaction between the reverse electromagnetic field generated by eddy current and the primary magnetic field. The equipment is widely used in waste recycling, metal recycling and other fields. The working principle of the eddy current sorter is based on the eddy current effect. The eddy current sorter uses an electromagnet to generate an alternating magnetic field, the frequency and strength of which can be adjusted according to different application requirements. The sensor is mounted on the workbench and is used to detect the eddy current generated by the material. The sensor sends the detected signal to the control system for processing. The control system classifies and separates the materials according to the signals from the sensors. According to the strength and characteristics of the eddy current, the control system can determine the types of different materials and separate them through the appropriate device. The separated material is collected into the appropriate container for subsequent processing and utilization.
| Quantity: | |
|---|---|
Technical Parameter
| Model | Feed Belt | Energy Consumption | Load Bearing | External Dimensions | |||||
| Feed Width (mm) | Feed Length | Feed Size | Capacity (r/b) | Motor Power (w) | Weight (kg) | L (Length, m) | W (Width, m) | H (Height, m) | |
| TLFX(A)-5 | 300 | 1500mm | >1m r | 6 | 5.9 | 730 | 4600 | 1.123 | 1.2 |
| TLFX(A)-6 | 400 | 1500mm | >1m r | 10 | 5.9 | 895 | 4600 | 1.223 | 1.2 |
| TLFX(A)-6.5 | 400 | 1500mm | >1m r | 15 | 5.9 | 950 | 4600 | 1.423 | 1.2 |
| TLFX(A)-8 | 600 | 1500mm | >1m r | 20 | 5.9 | 1225 | 4600 | 1.623 | 1.2 |
| TLFX(A)-10 | 800 | 1500mm | >1m r | 25 | 6.3 | 1555 | 4600 | 1.823 | 1.2 |
| TLFX(A)-12 | 1000 | 1500mm | >1m r | 30 | 7 | 1875 | 4600 | 2.023 | 1.2 |
| TLFX(A)-14 | 1200 | 1500mm | >1m r | 35 | 8.8 | 2275 | 4600 | 2.223 | 1.2 |
| TLFX(A)-16 | 1400 | 1500mm | >1m r | 40 | 10 | 2850 | 4600 | 2.423 | 1.2 |
| TLFX(A)-17 | 1500 | 1500mm | >1m r | 45 | 10 | 3150 | 4600 | 2.523 | 1.2 |
| TLFX(A)-20 | 1800 | 1500mm | >1m r | 50 | 10.7 | 3650 | 5000 | 2.823 | 1.2 |
| TLFX(A)-22 | 2000 | 1500mm | >1m r | 55 | 13 | 4500 | 5000 | 3.023 | 1.2 |
Honor Display
 |  |  |  |  |  |
 |  |  |  |  |  |
Product Uses
It is mainly used for sorting non-ferrous metals such as copper and aluminum in industrial waste and domestic waste. Domestic waste incineration slag, domestic waste, paper tailings, waste glass recycling, wood chips, scrap metal recycling, electronic waste recycling, waste plastic recycling.
Product Operate Guide
First check the components and circuits of the equipment, evenly feed after starting, observe the operation during operation, stop after the job, and finally check and maintain.
Customer Communication
 |  |  |  |  |  |
 |  |  |  |  |  |
 |  |  |  |  |  |
Packaging & Shipping
 |  |  |
 |  |  |
 |  |  |
FAQ
Q1: Do you customize products for customers?
A1: Yes, we can customize and produce crushing machinery according to customers' requirements or drawings.
Q2: How about the quality of your products?
A2: We can provide you with samples for quality inspection. If you order, we guarantee the same quality as the sample. If there is a quality problem, we can sign an agreement and let our company perform the duties.
Q3: How can we trust your factory?
A3: We suggest that you come to our factory to see the goods, verify the real situation of the products, and learn more about our factory.
Q4: Why do prices change so often?
A4: The price depends on the latest prices of raw materials.
Q5: What about contract signing?
A5: If you are satisfied with the product and our service, you can sign a contract with us, pay a deposit, and then we will produce the machine as soon as possible. If you are far away, we can sign the contract by fax. We will ensure the quality of products and accessories complete.
Q6: What about delivery?
A6: When the product is ready, it will be delivered to you after full payment. Technical guidance will be provided.
