Metal Crusher

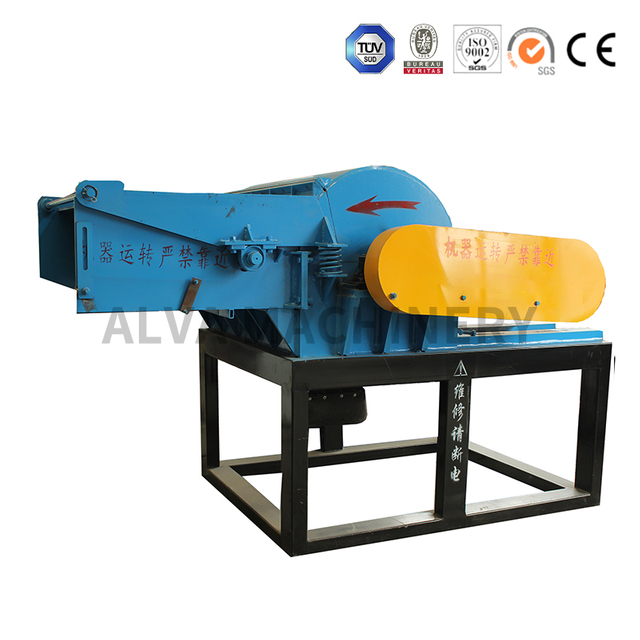

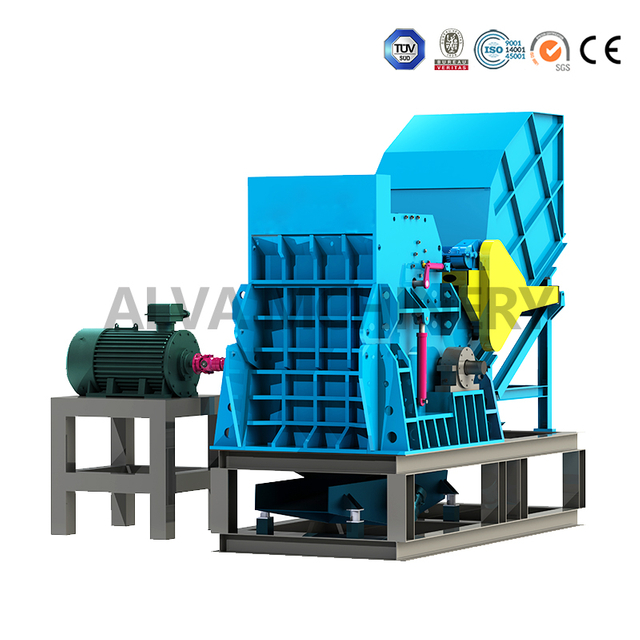

A classic example of Alva's small-scale metal shredder, the Model 80 Metal Shredder is designed for small and medium-sized recycling companies and individual businesses. It's suitable for shredding lightweight metal materials such as scrap cans, paint cans, and thin metal sheets. Equipped with a 7.5kW high-efficiency motor and a feed port measuring 200×250mm, it can achieve a crushing capacity of 0.5-1 ton per hour. The crushed material maintains a uniform particle size of 20-50mm, meeting the needs of subsequent packaging, recycling, or smelting pre-processing. The compact design of the entire machine, measuring only 1.2×0.8m, requires no complex foundation construction and can be operated and maintained by a single person. Equipped with wear-resistant manganese steel hammers and an automatic material removal device, it effectively reduces equipment wear and downtime, making it an ideal choice for launching a metal recycling business at a low cost.

Metal crusher, also known as metal crusher, is a machine for crushing waste metal materials, mainly composed of crusher blade group, bearing box, box bracket, feeding system, power system, electrical control system, etc., through the supporting conveyor, host, unloader, sorting machine to form a complete production line. Metal crusher can deal with various types of metal waste, including cans, paint buckets, waste household appliances, bicycles, auto parts, waste metal furniture, cable and wire, metal pressing block, aluminum profiles, iron sheet, copper products, etc., can remove metal magazines, separate and purify different broken materials, can also choose the appropriate crushing mode according to the nature of the material, Control the size of the broken material to meet different needs.

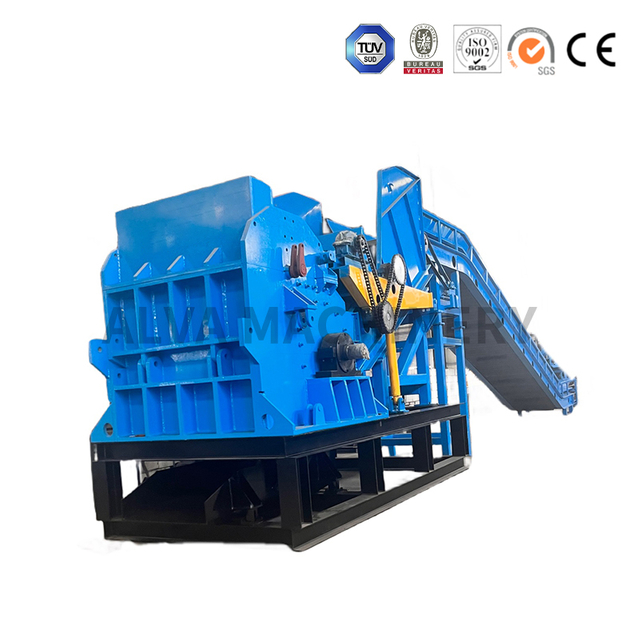

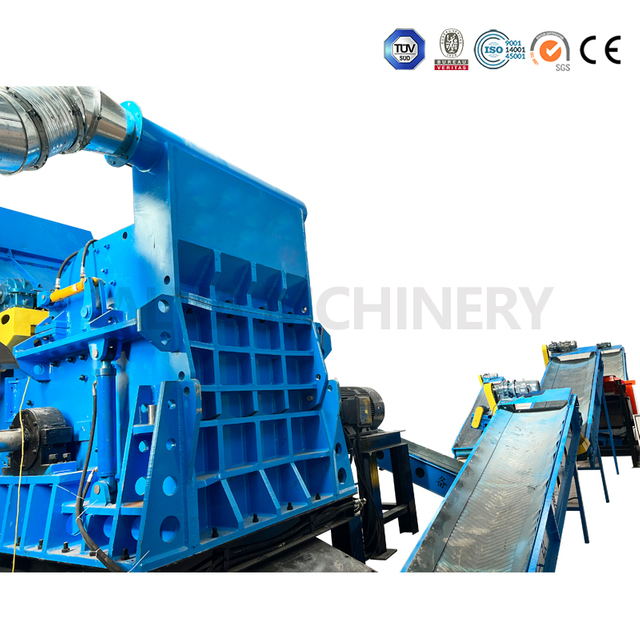

The 132 metal shredder caters to small and medium-sized industrial crushing needs, suitable for crushing medium-hardness metal materials such as scrap steel, automotive wheels, and thick-walled steel pipes. Equipped with a 15-22kW dual-motor drive system and an upgraded feed port size of 300×350mm, the crushing capacity is increased to 1-3 tons per hour. The hammer head is constructed of high-chromium alloy and reinforced through a special heat treatment process, achieving a hardness exceeding HRC58. This allows for efficient crushing of scrap steel materials under 6mm thick. The innovative "dual-chamber crushing + grading screening" structure meets the pre-processing standards of most metal recycling plants. It also features an intelligent overload protection device that automatically shuts down the machine if it encounters unbreakable hard objects, significantly enhancing operational safety and equipment life.

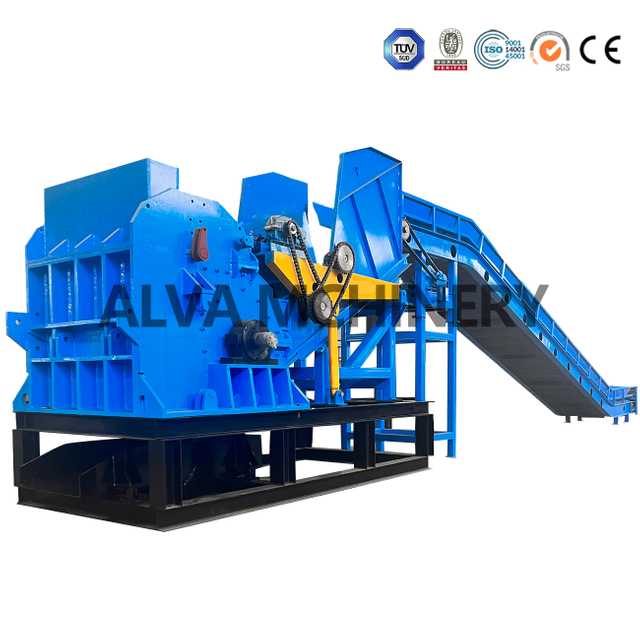

Scrap steel crushers are generally used to crush scrapped cars, scrapped home appliances, old bicycles and motorcycles, and car shells in batches. The scrap steel materials processed by the scrap steel crusher have high volume specific gravity, high purity, few impurities, and high economic value. The crushed materials can be directly re-melted by the steel mill, with low energy consumption, high output, and very high comprehensive economic benefits.
The scrap steel crusher can separate the rust, paint and other surface dirt on the surface of the scrap steel during crushing, and then under the action of the magnetic separation device, the non-ferrous metals, plastics, rubber and other non-metallic wastes mixed in the scrap steel are piled separately. Not only can pure crushed steel be obtained, but also non-ferrous metals can be recycled through manual selection.

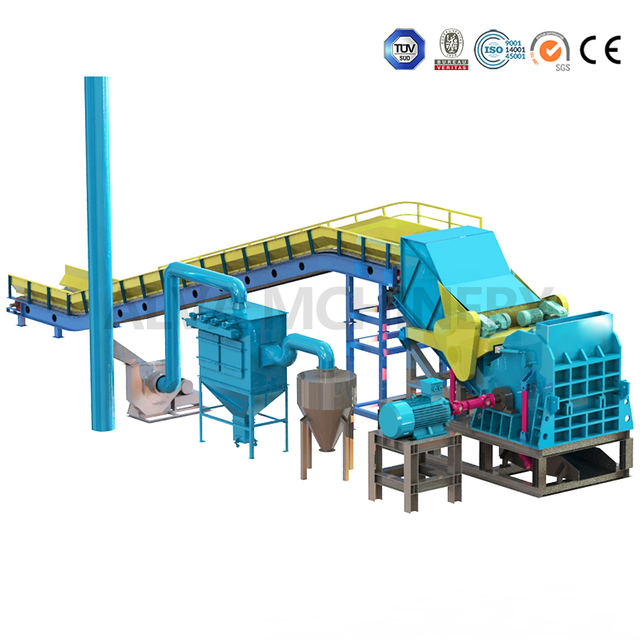

The 200 metal shredder is designed for medium-sized batch crushing applications and is widely used in small and medium-sized scrap steel recycling centers and foundries for metal recycling. It efficiently crushes medium-thick metal materials such as scrap steel plates, bearing seats, and motorcycle frames. Equipped with a 30-45kW motor and a feed port measuring 400×450mm, it boasts a stable crushing capacity of 3-5 tons per hour. The crushing chamber features a multi-tooth liner design and 12 sets of reversible hammers, achieving a multi-step crushing process of "impact-compression-shearing." Even 10mm thick steel plates can be crushed into shape in one operation. The machine features a hydraulic cover opening, allowing for hammer replacement and chamber cleaning in just 30 minutes, ensuring both efficient production and environmental protection.

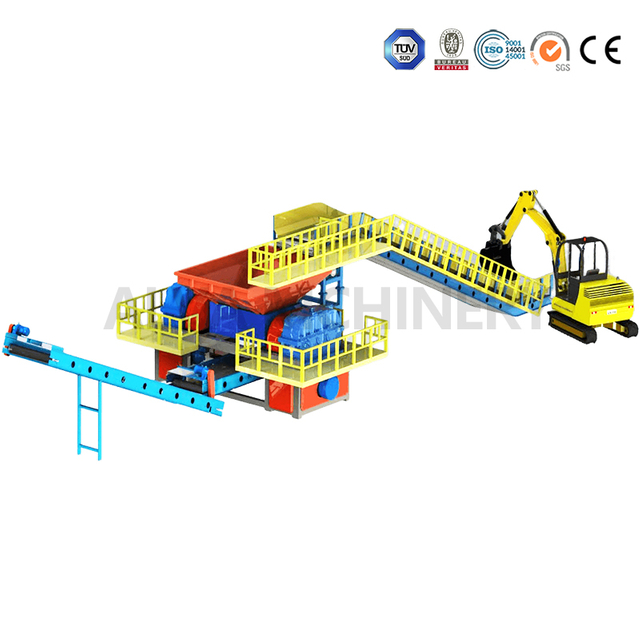

The 315 metal shredder is Alva's mid-sized, industrial-grade workhorse, designed for regional scrap recycling centers and steel mill waste processing plants. It's suitable for crushing heavy metal materials such as automobile hulls, machine tool beds, and large pipes. Equipped with a high-power 55-75kW motor and an expanded feed port size of 500×600mm, it can crush 5-8 tons of material per hour. For scrap materials under 15mm thick, the crushed particle size can be adjusted to 30-80mm using a screen, meeting feed standards for blast furnace smelting or electric furnace reuse. The 315 features a one-piece welded frame, offering a 40% increase in load-bearing strength compared to conventional models. Combined with an intelligent temperature control system and automatic lubrication replenishment system, it can operate continuously 24 hours a day, with an overall equipment failure rate of less than 0.5%.

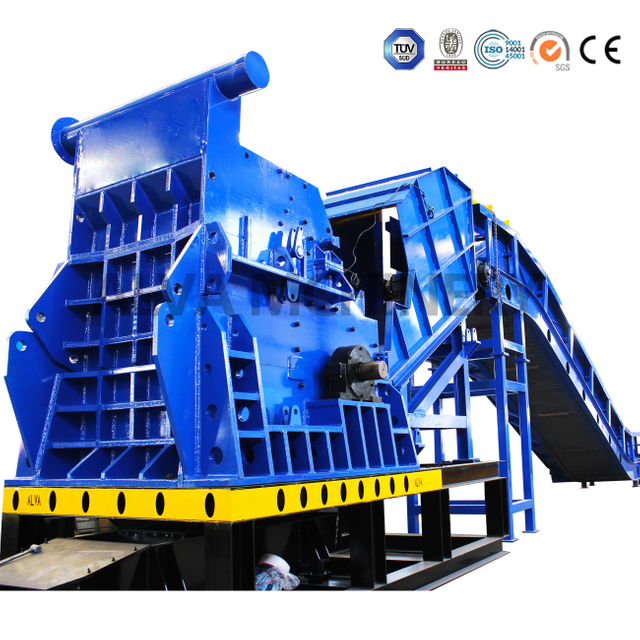

Aluminum scrap crusher is a kind of heavy-duty machinery that is specialized in crushing and recycling various kinds of waste aluminum, aluminum alloy, aluminum scrap, aluminum profiles, and aluminum doors and windows. The application of aluminum scrap crusher provides convenience for the crushing, processing and transportation of aluminum scrap, and greatly improves the recycling efficiency of aluminum scrap. With the continuous improvement of the national economy, the consumption of aluminum scrap resources in various industries has been expanding year by year, and the demand for the production and recycling of aluminum scrap resources has also increased. Aluminum scrap crusher is helping to promote the recycling of aluminum scrap materials.

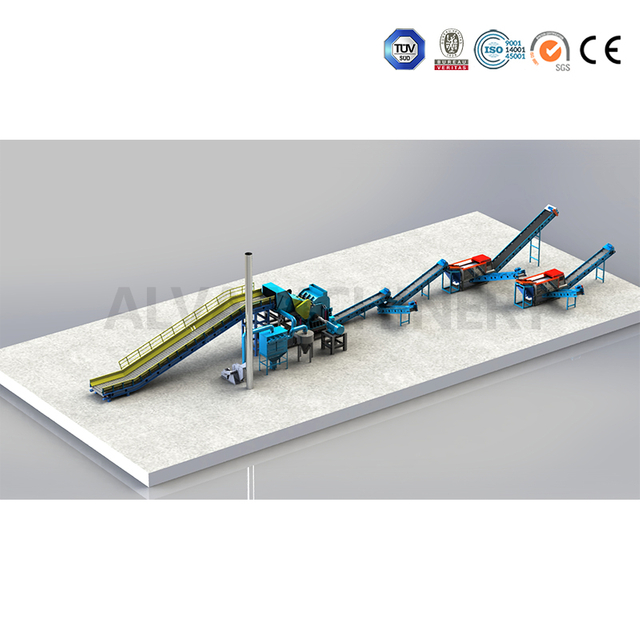

The 630 metal shredder is designed for large-scale crushing applications and is suitable for the batch crushing needs of large-scale scrap steel processing bases and scrapped vehicle dismantling centers. It can efficiently process ultra-heavy metal materials such as entire vehicle frames, large steel structures, and thick-walled pressure vessels. Equipped with a 110-160kW dual-motor drive system and an inlet size of 800×900mm, it has a crushing capacity of 10-15 tons per hour. Its "tapered" crushing chamber design and 20 sets of high-wear-resistant alloy hammers can easily crush steel plates up to 20mm thick and steel pipes up to 300mm in diameter. Equipped with a hydraulic pusher and an intelligent monitoring system, the machine monitors chamber pressure and motor load in real time, automatically adjusting the feed rate. Combined with a heavy-duty crawler-type discharge conveyor, it achieves integrated crushing and conveying operations, significantly improving production efficiency.

The 750 metal shredder is a medium-sized machine designed by Alva for high-capacity production. It serves steel groups and large-scale recycling companies, specializing in the large-scale crushing of bulk metal materials such as scrap steel, scrap iron, and end-of-life equipment. Equipped with a 185-220kW motor and a feed port measuring 900×1000mm, it boasts a crushing capacity of 15-20 tons per hour. Its hammers utilize a tungsten carbide alloy inlay process, extending their service life by 2-3 times compared to conventional hammers. It efficiently crushes heavy scrap materials under 25mm thick. Its innovative "integrated crushing and magnetic separation" structure simultaneously separates metallic and non-metallic impurities during the crushing process, achieving a purification rate exceeding 99%. Combined with a remote intelligent control system, it enables real-time monitoring of the equipment's operating status and provides fault warnings, meeting the intelligent production needs of modern factories.

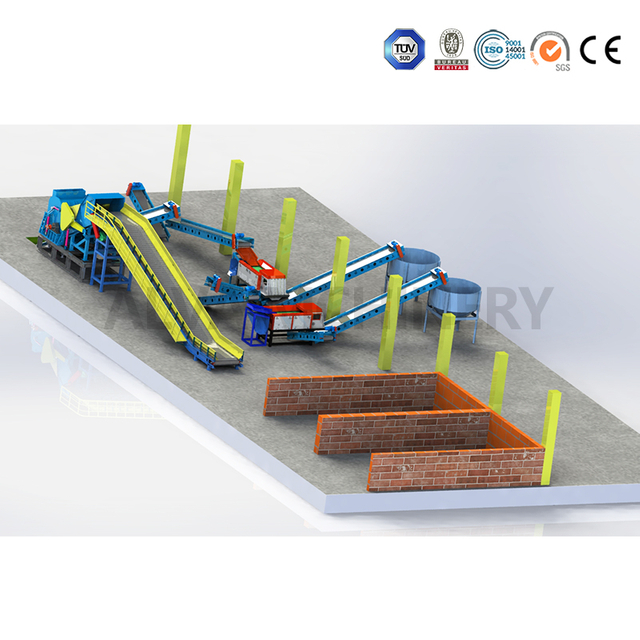

The Model 900 metal shredder, a benchmark for large-scale crushing equipment in Alva, is designed specifically for large-scale recycling parks and steel complexes. It meets the demands of annual processing capacity of tens of thousands of tons of metal scrap, including scrapped train carriages, large bridge steel structures, and thick-walled boilers. Equipped with a 250-315kW high-power motor and a feed opening measuring 1200×1500mm, it boasts a crushing capacity of 20-30 tons per hour. The crushing chamber is welded from high-strength manganese steel with a compressive strength of 1200MPa. The hydraulically adjustable discharge opening allows for flexible control of the finished product size between 50 and 150mm. The equipment is equipped with multiple safety features, including infrared human presence detection, hydraulic overload relief, and motor overheating protection. Its modular design standardizes the replacement of wearing parts and equipment maintenance, ensuring continuous production stability.

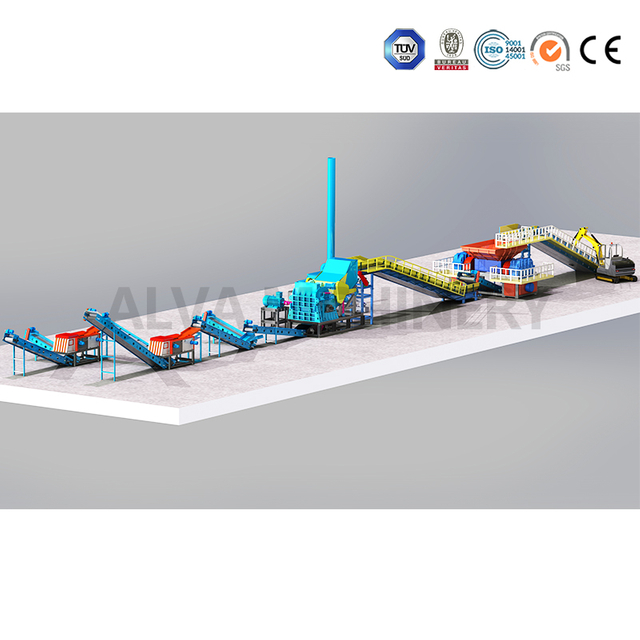

The 2000 Metal Shredder is the ultra-large flagship model in the Alva series, designed specifically for global recycling companies and large steel groups. Suitable for metal scrap shredding projects with an annual processing capacity of over 500,000 tons, it can handle ultra-heavy and oversized metal materials, including scrapped ship components, large generator casings, and the wreckage of heavy construction machinery. Equipped with a 630-800kW multi-motor drive system and a feed opening measuring 2000×2500mm, the shredder boasts a crushing capacity exceeding 50-80 tons per hour. Its crushing chamber utilizes a three-stage crushing structure, continuously operating through coarse, medium, and fine crushing to crush steel plates over 30mm thick in one go. Integrating IoT technology and equipped with an intelligent production management system, the shredder collects real-time data on production capacity, energy consumption, and hammer wear. Remote operation and maintenance, as well as production scheduling, are enabled through a cloud-based platform. Featuring an enclosed, environmentally friendly workstation, the shredder meets the highest international environmental standards for dust and noise emissions. It is a core piece of equipment for large-scale, intelligent, and environmentally friendly production at large metal recycling facilities.
