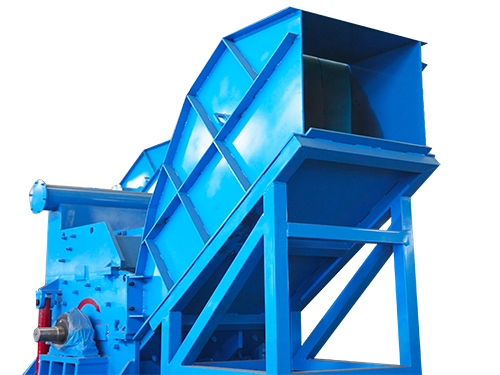

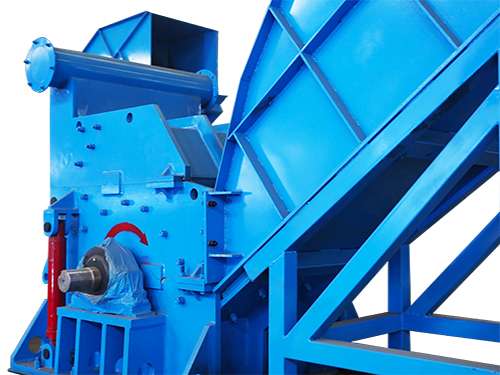

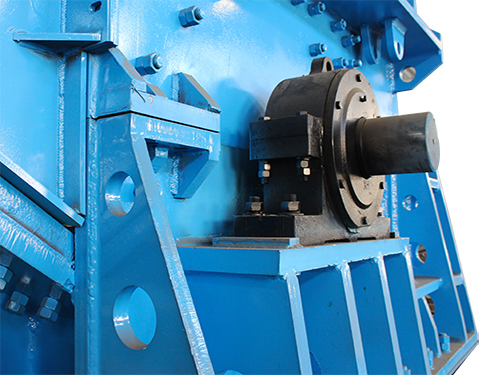

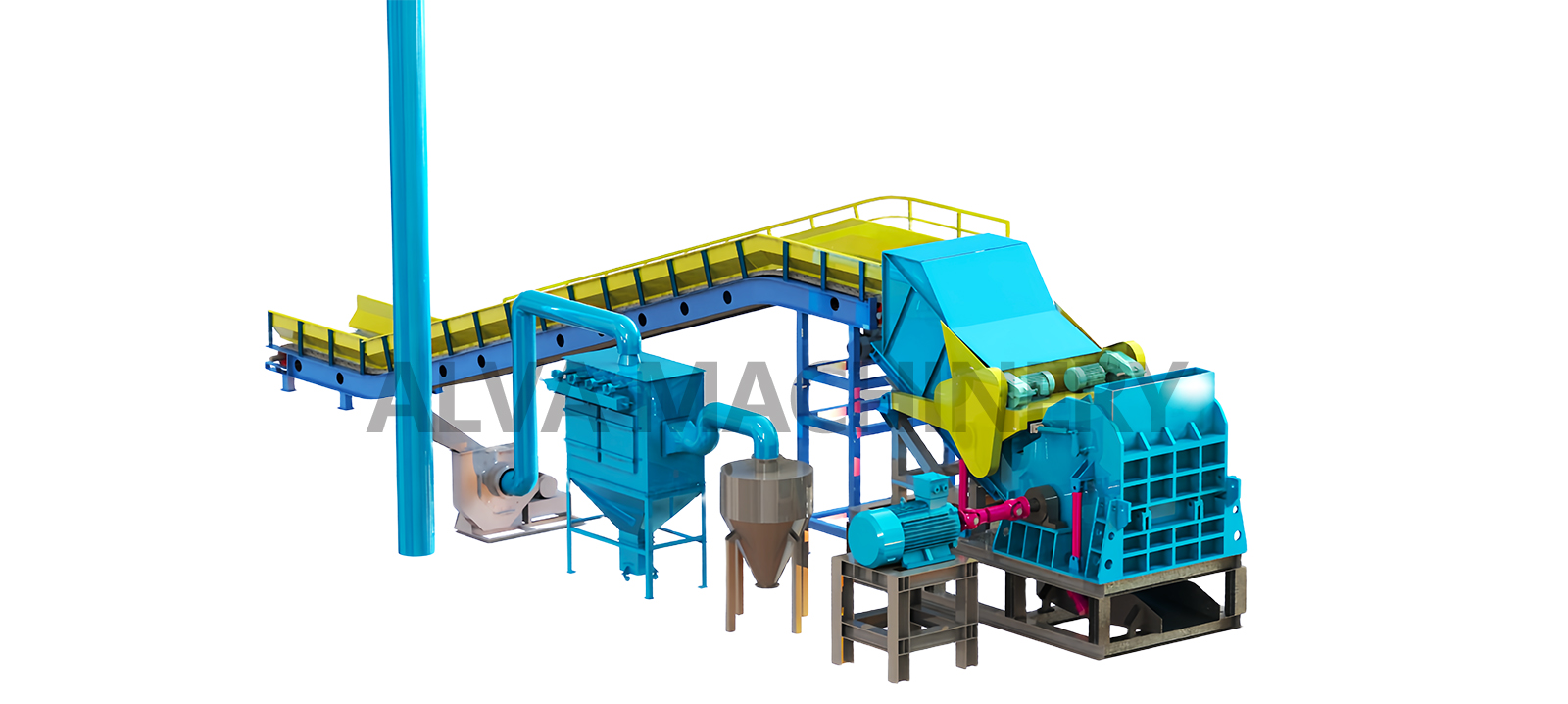

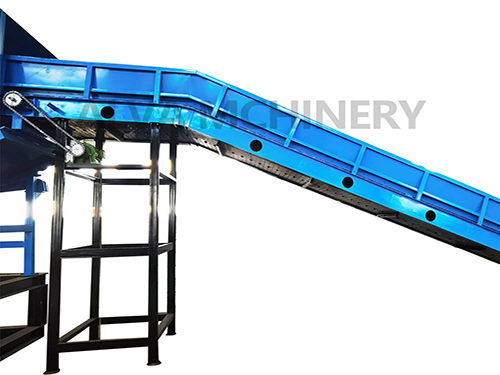

Metal crusher, also known as metal crusher, is a machine for crushing waste metal materials, mainly composed of crusher blade group, bearing box, box bracket, feeding system, power system, electrical control system, etc., through the supporting conveyor, host, unloader, sorting machine to form a complete production line. Metal crusher can deal with various types of metal waste, including cans, paint buckets, waste household appliances, bicycles, auto parts, waste metal furniture, cable and wire, metal pressing block, aluminum profiles, iron sheet, copper products, etc., can remove metal magazines, separate and purify different broken materials, can also choose the appropriate crushing mode according to the nature of the material, Control the size of the broken material to meet different needs.
| Quantity: | |
|---|---|
| Serial Number | Model | Feed Particle Size (mm) | Fan Motor Power (kw) | Output (tons/hour) | Processed Material Output (tons/hour) | Transformer Requirement (kv) | Length (m) | Width (m) | Height (m) | Floor Area (m²) |
| 1 | ALVA-MCM-75 | 900 mm | 75 kw | 1 | 2 | 125 KVA | 21 | 4 | 2.7 | 100m² |
| 2 | ALVA-MCM-110 | 1000 mm | 110 kw | 1.5 | 2.5 | 160 KVA | 34 | 4 | 2.78 | 150m² |
| 3 | ALVA-MCM-132 | 1260 mm | 132 kw | 1 | 3 | 200 KVA | 36 | 4.5 | 2.8 | 180m² |
| 4 | ALVA-MCM-160 | 1460 mm | 160 kw | 3~4 | 5~6 | 250 KVA | 36 | 5 | 2.9 | 280m² |
| 5 | ALVA-MCM-200 | 1500 mm | 200 kw | 4~5 | 7~8 | 315 KVA | 37 | 6 | 3.3 | 300m² |
| 6 | ALVA-MCM-315 | 1600 mm | 315 kw | 6~7 | 8~10 | 500 KVA | 39 | 6.5 | 4.5 | 350m² |
| 7 | ALVA-MCM-450 | 1600 mm | 450 kw | 8~9 | 10~12 | 630 KVA | 48 | 7 | 6 | 480m² |
| 8 | ALVA-MCM-630 | 1800 mm | 630 kw | 10~11 | 14~16 | 10 KVA | 55 | 7.5 | 6 | 1000m² |
| 9 | ALVA-MCM-750 | 1800 mm | 750 kw | 11~12 | 16~18 | 10 KVA | 60 | 7.5 | 6 | 1000m² |
| 10 | ALVA-MCM-900 | 220 mm | 9900 kw | 14~15 | 18~20 | 10 KVA | 75 | 8 | 7.2 | 1160m² |
| 11 | ALVA-MCM-2000 | 250 mm | 1600 kw | 16~18 | 22~24 | 10 KVA | 80 | 9 | 7.6 | 1700m² |
3. Core Advantages
Wear-Resistant & Thickened Material, Durable & Easy to MaintainThe core components of the equipment are made of special wear-resistant and thickened materials, featuring excellent performance and a solid structure. It can effectively resist wear during long-term high-intensity operation and greatly prolong the service life of the whole machine. Meanwhile, vulnerable parts such as hammers and screens adopt a user-friendly modular design, which is simple to disassemble, assemble and replace, effectively reducing later maintenance difficulty and operating cost.
Forced Feeding, High Crushing Efficiency & Outstanding CapacityEquipped with a high-efficiency forced feeder, the machine ensures uniform and stable feeding, optimizes the workflow from the source and comprehensively improves the working efficiency. This metal crusher has a larger crushing ratio and higher output, supporting both continuous and intermittent feeding. It can process a large amount of scrap metal in a short time, greatly improving the efficiency of scrap metal recycling and meeting the demands of large-scale production.
Excellent Performance, Easy Operation & Adjustable Particle SizeThe equipment has superior overall performance and is simple and convenient to operate. Crushed materials are more suitable for subsequent regeneration and processing.The blades of the crusher are refined from high-alloy materials with high strength and strong wear resistance, achieving an ideal crushing effect for various kinds of scrap metal. The crushed finished products are of good quality and can meet the basic requirements of steelmaking to the maximum extent.In addition, the discharge particle size is flexibly adjustable. Users can accurately control the particle size by replacing screens of different specifications according to actual production needs, adapting to diverse production scenarios.
Great Separation Effect, Eco-Friendly Dust Removal & Green ProductionThe machine is equipped with an air cyclone sorting system, which can realize efficient separation of metal and non-metal materials with high purity and stable performance.The whole system is fitted with a professional dust removal device, which can effectively absorb and filter dust generated during production, minimize the risk of dust pollution, comply with green environmental protection standards, and optimize the working environment.
