Heavy Duty Ferrous Metal Crusher for Scrap Steel & Car Body Recycling
| Quantity: | |
|---|---|
Alva Machinery

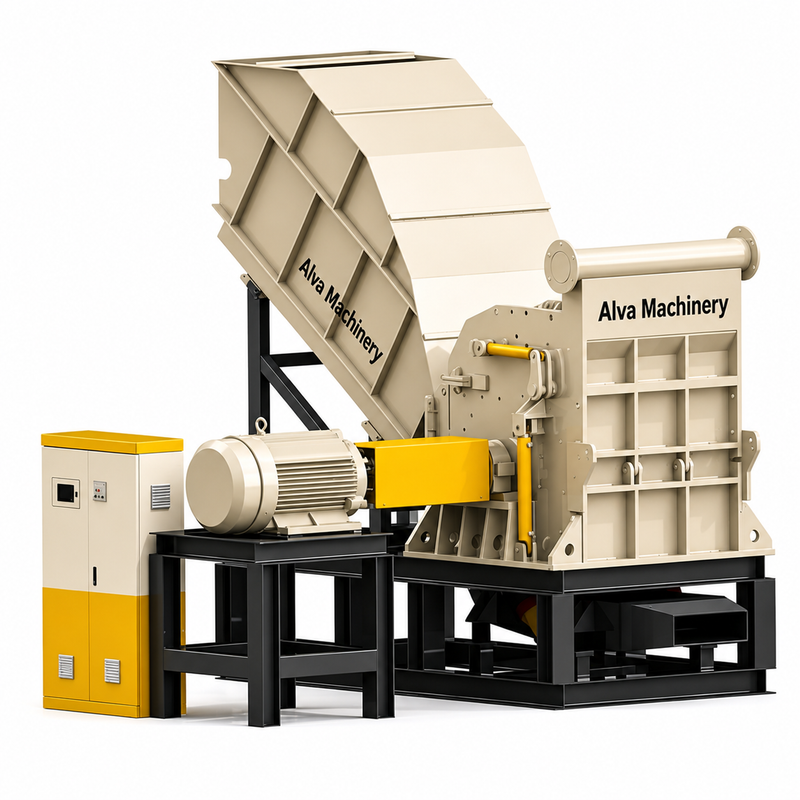

Alva Machinery Scrap Steel Crusher is a heavy-duty secondary crushing equipment specially designed for ferrous metal waste recycling. It adopts high-speed rotating hammer impact principle, which can efficiently crush various thick steel materials into dense steel balls, and automatically remove rust, paint and non-metallic impurities during the crushing process. Our scrap steel crushers are widely used in automobile dismantling plants, scrap metal recycling centers and steel mills, with processing capacity ranging from 1t/h to 25t/h.
Matching Process Recommendation: For large-volume materials such as complete cars and large steel structures, it is recommended to first use our Double Shaft Metal Scrap Shredder for primary crushing, and then send it to this equipment for secondary crushing, which can increase efficiency by more than 50%.

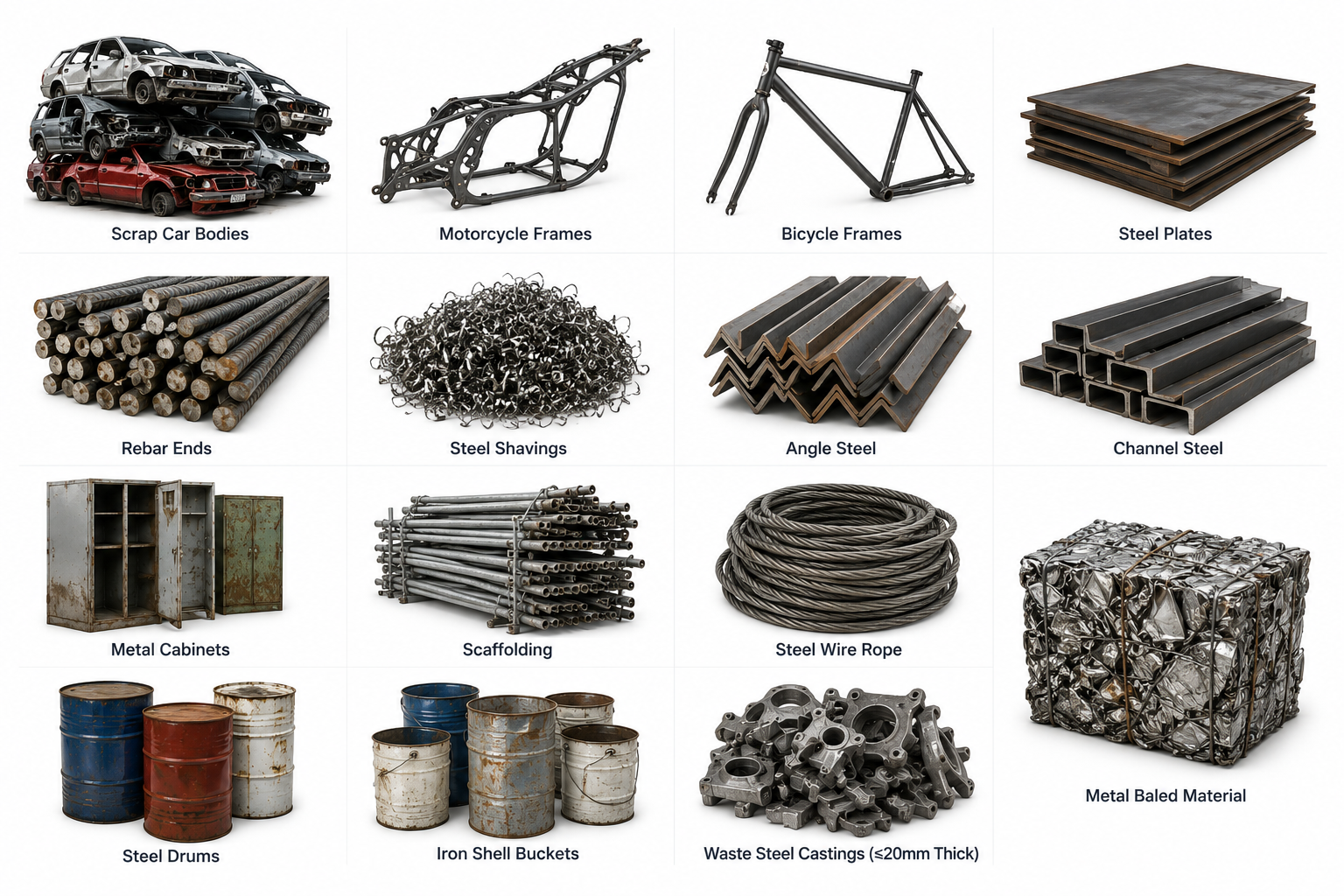

Our double shaft metal scrap shredder can process various ferrous and non-ferrous metal wastes:
Note: Customized configurations are available according to your specific material and output requirements.
Model | Feed Opening Size (mm) | Motor Power (kW) | Hammer Quantity | Processing Capacity (t/h) | Overall Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|---|---|
ALVA-DSSM-100 | 800×600 | 55 | 24 | 1-3 | 3500×2200×2500 | 8500 |
ALVA-DSSM-130 | 1000×800 | 90 | 32 | 3-8 | 4200×2600×2900 | 15000 |
ALVA-MC-160 | 1200×900 | 132 | 40 | 8-15 | 4800×3000×3300 | 22000 |
ALVA-MC-200 | 1500×1200 | 200 | 56 | 15-25 | 5600×3600×4000 | 35000 |

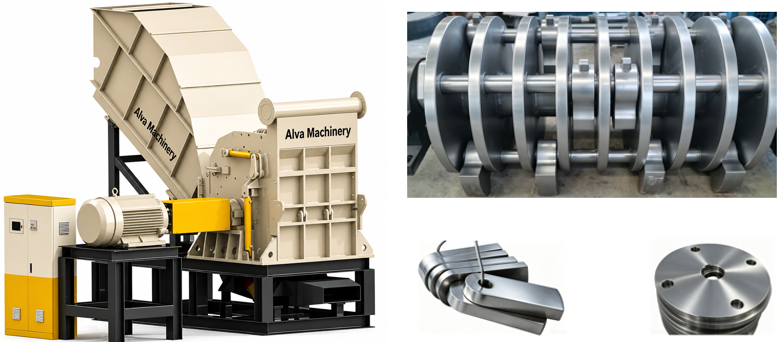

Heavy-Duty Rotor & Ultra-Wear-Resistant Hammers
Integral forged rotor with dynamic balance calibration, stable operation under long-term high load
Standard configuration of Cr26 high chromium alloy hammers, heat treated to HRC 62-65, impact resistance is 3 times that of ordinary steel
Hammers can be turned over for use, single hammer service life up to 500 hours
High-Efficiency Magnetic Separation System
Built-in permanent magnetic separator automatically separates iron and steel from non-metallic impurities
The purity of finished steel balls reaches more than 95%, which can be directly sent to steel mills for smelting
Optional eddy current separator for further separation of non-ferrous metals mixed in scrap steel
Intelligent Overload Protection
PLC automatic control system with real-time current monitoring
Automatic reverse and shutdown protection when overloaded, effectively preventing jamming and motor damage
Touch screen operation interface, easy to learn and use
Rugged & Durable Body Structure
25-50mm thick manganese steel plate welded frame, reinforced rib design
Replaceable high manganese steel lining plate, easy to maintain and replace
Fully enclosed body with dust removal interface, meeting international environmental protection standards
✅ 20+ years of experience in manufacturing solid waste recycling equipment
✅ CE and ISO certified products, exported to more than 80 countries
✅ Professional technical team provides customized solutions
✅ 12-month warranty period and lifelong after-sales service
✅ Fast delivery time: 15-30 days for standard models
✅ Overseas installation and commissioning service available
Contact us today to get the latest price and detailed technical information about our products. Our professional engineers will provide you with the most suitable recycling solution according to your needs.
