Specialized Motor Rotor Crusher for Copper, aluminum & Steel Separation
| Quantity: | |
|---|---|
Alva Machinery

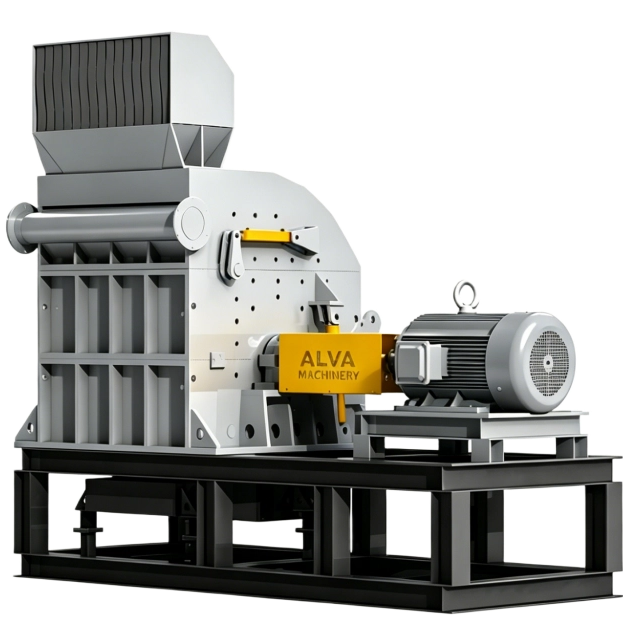

Alva Machinery Electric Motor Rotor Crusher is a specialized secondary crushing equipment exclusively designed for scrap motor and rotor recycling. It adopts optimized toothed hammer design with balanced tearing and impact force, which can efficiently separate copper windings from silicon steel sheets without smashing copper into fine powder. Our rotor crushers are widely used in motor dismantling plants, home appliance recycling centers and scrap metal processing facilities, with processing capacity ranging from 0.5t/h to 6t/h.
Critical Process Note: Complete motors and large rotors MUST be pre-shredded by our Double Shaft Metal Scrap Shredder to 100-200mm fragments before entering this crusher. Direct feeding of whole motors will cause severe jamming and equipment damage.

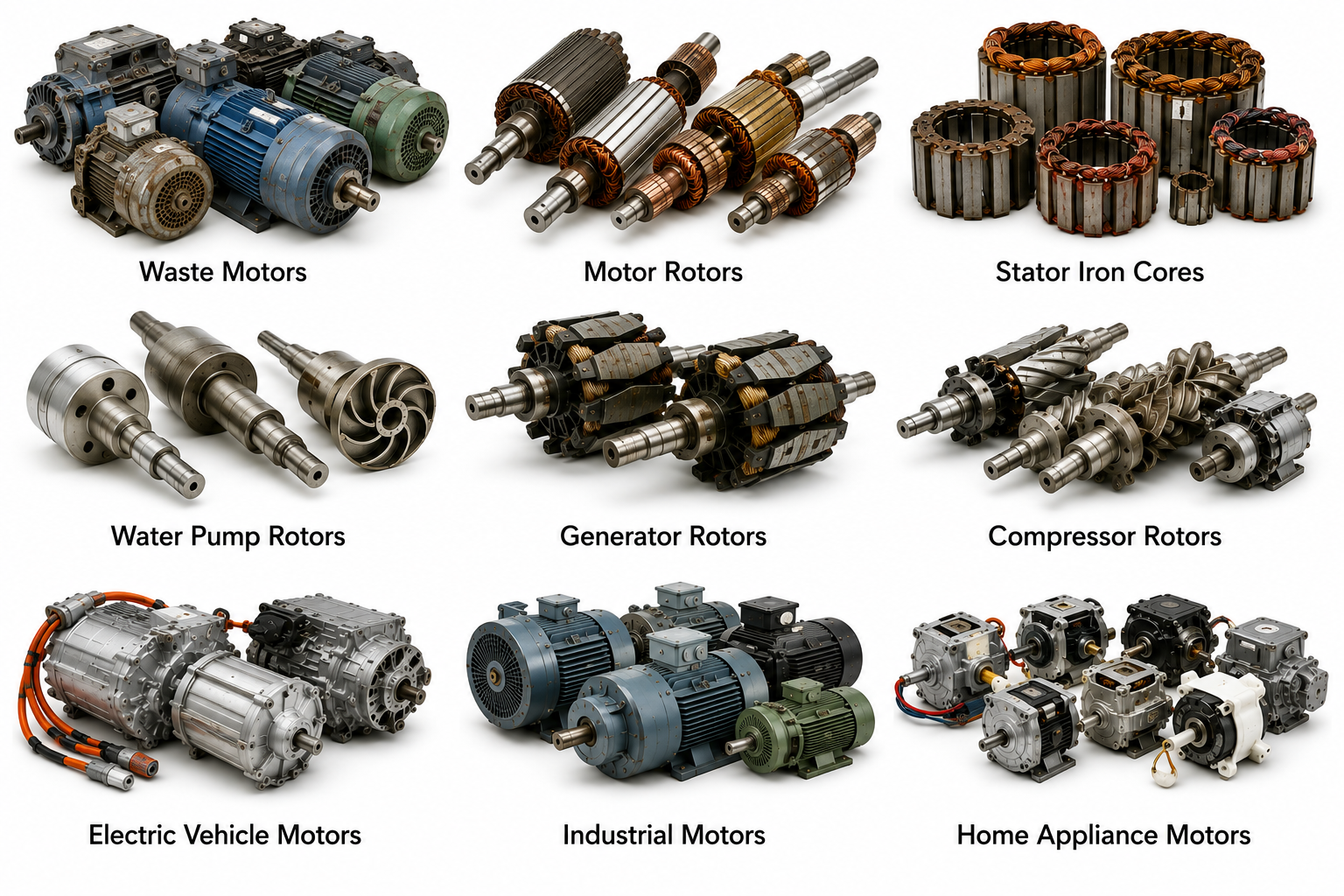

Our double shaft metal scrap shredder can process various ferrous and non-ferrous metal wastes:
Note: Customized configurations are available according to your specific material and output requirements.
Model | Feed Opening Size (mm) | Motor Power (kW) | Hammer Quantity | Processing Capacity (t/h) | Overall Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|---|---|
ALVA-MC-R400 | 600×500 | 45 | 20 | 0.5-1.5 | 3200×2000×2400 | 6800 |
ALVA-MC-R600 | 800×600 | 75 | 28 | 1.5-3.5 | 3800×2400×2800 | 11200 |
ALVA-MC-R800 | 1000×700 | 110 | 36 | 3.5-6 | 4400×2800×3200 | 16500 |

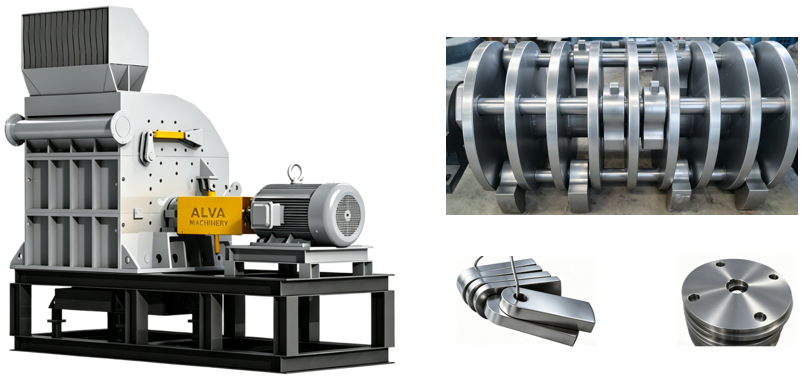

Specialized Toothed Hammer System
Standard configuration of Cr20 high chromium alloy toothed hammers with sharp cutting edges
Unique tooth design effectively tears copper windings apart while gently crushing silicon steel sheets
Hammers can be turned over for use, single hammer service life up to 600 hours
High Recovery Rate & Low Loss
Optimized rotor speed (600-800rpm) prevents copper windings from being smashed into powder
Copper recovery rate reaches ≥98%, silicon steel sheet integrity rate ≥95%
No excessive oxidation, ensuring high value of recycled materials
Integrated Magnetic Separation System
Built-in high-intensity magnetic separator automatically separates silicon steel sheets (magnetic) from copper and aluminum (non-magnetic)
One-step crushing and separation, no need for additional processing
Optional eddy current separator for further purification of non-ferrous metals
Intelligent & Durable Design
Siemens PLC automatic control system with overload protection and automatic reverse function
25-30mm thick manganese steel welded frame with reinforced rib design
Replaceable high manganese steel lining plates, easy to maintain and replace
✅ 20+ years of experience in manufacturing solid waste recycling equipment
✅ CE and ISO certified products, exported to more than 80 countries
✅ Professional technical team provides customized solutions
✅ 12-month warranty period and lifelong after-sales service
✅ Fast delivery time: 15-30 days for standard models
✅ Overseas installation and commissioning service available
Contact us today to get the latest price and detailed technical information about our products. Our professional engineers will provide you with the most suitable recycling solution according to your needs.
