Heavy Duty Non-Ferrous Metal Crusher for Aluminum Profile & Copper Recycling
| Quantity: | |
|---|---|
Alva Machinery

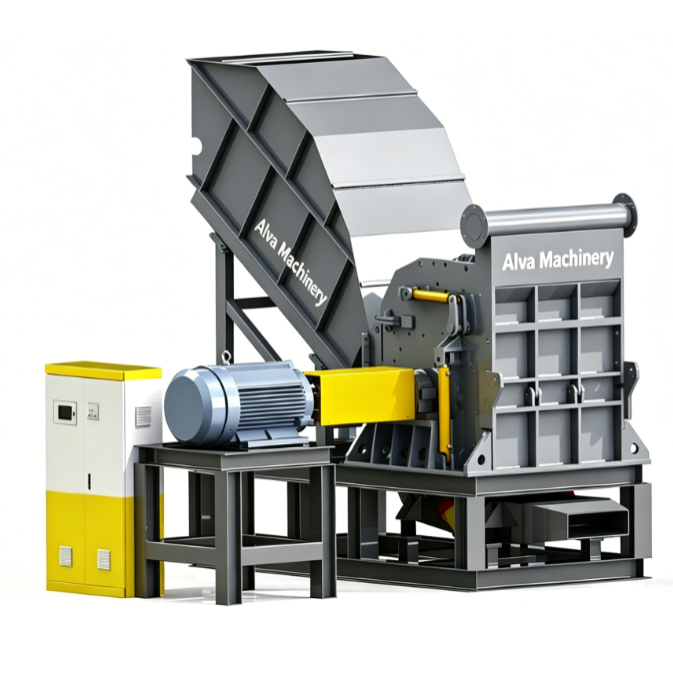

Alva Machinery Aluminum Scrap Crusher is a professional heavy-duty secondary crushing equipment specially designed for non-ferrous metal waste recycling. It adopts optimized low-impact hammer crushing principle, which can efficiently crush various non-ferrous metals into uniform particles while minimizing oxidation and material loss. Our non-ferrous metal crushers are widely used in recycled aluminum plants, scrap aluminum recycling stations and non-ferrous metal smelters, with processing capacity ranging from 0.5t/h to 12t/h.
Matching Process Recommendation: For large-volume materials such as complete aluminum profiles, large aluminum castings and radiator assemblies, it is recommended to first use our Double Shaft Metal Scrap Shredder for primary crushing, and then send it to this equipment for secondary crushing, which can increase efficiency by more than 40% and reduce hammer wear.

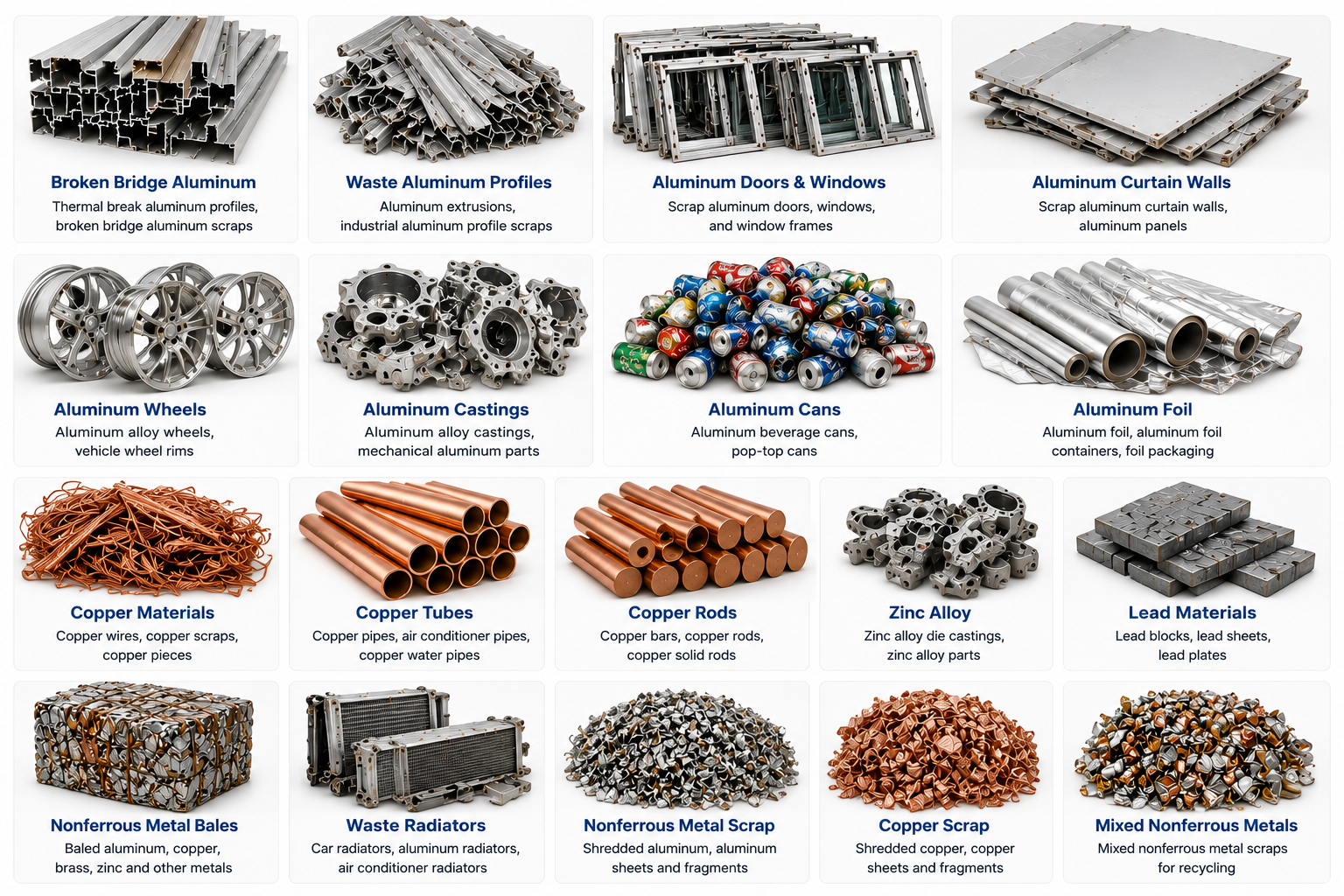

Our double shaft metal scrap shredder can process various ferrous and non-ferrous metal wastes:
Note: Customized configurations are available according to your specific material and output requirements.
Model |
Feed Opening Size (mm) |
Motor Power (kW) |
Hammer Quantity |
Processing Capacity (t/h) |
Overall Dimensions (mm) |
Weight (kg) |
|---|---|---|---|---|---|---|
ALVA-MC-300 |
600×500 |
45 |
24 |
0.5-2 |
3200×2000×2300 |
7200 |
ALVA-MC-450 |
800×600 |
75 |
32 |
2-5 |
3800×2400×2700 |
11500 |
ALVA-MC-600 |
1000×700 |
110 |
40 |
5-8 |
4400×2800×3100 |
16800 |
ALVA-MC-800 |
1200×800 |
160 |
48 |
8-12 |
5000×3200×3500 |
23500 |

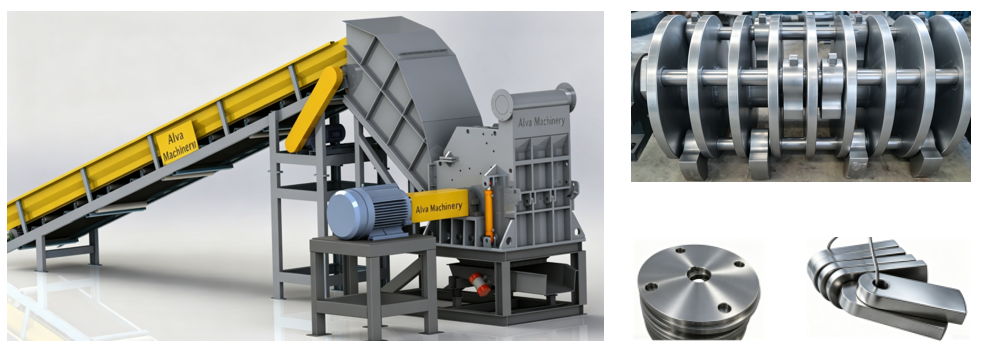

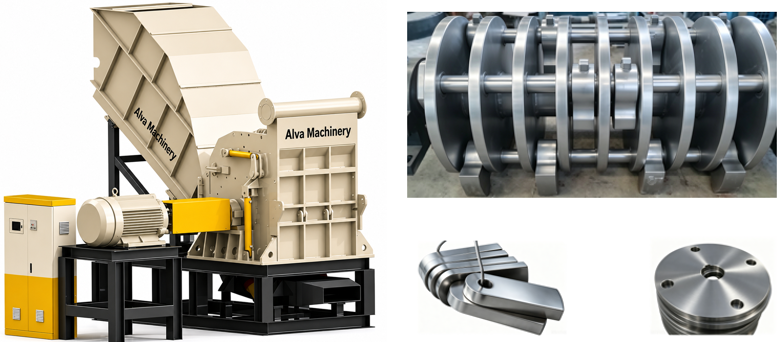

Optimized Low-Impact Hammer System & Anti-Adhesion Design
Standard configuration of Cr12MoV alloy steel hammers with high hardness and toughness, heat treated to HRC 58-62
Special anti-adhesion surface treatment prevents aluminum chips from sticking to the hammers and lining plates
Hammers can be turned over for use, effectively extending service life by 2 times compared with ordinary steel hammers
Low Oxidation & High Purity Output
Optimized rotor speed (800-1000rpm) avoids high-temperature oxidation caused by violent impact
Aluminum material loss rate is controlled below 3%, which is 30% lower than traditional scrap steel crushers
Finished product purity reaches more than 98%, which can be directly sent to smelters for remelting
Intelligent Anti-Jam & Easy Maintenance
Siemens PLC automatic control system with real-time load monitoring
Automatic forward and reverse rotation protection when overloaded, effectively preventing jamming
Openable body design with quick-release bolts, convenient for internal inspection and hammer replacement
Complete Sorting System Compatibility
Can be directly matched with eddy current separators to separate non-ferrous metals from plastics and rubber
Optional magnetic separator to remove a small amount of iron impurities mixed in the materials
Fully sealed crushing chamber with dust removal interface, meeting international environmental protection standards
✅ 20+ years of experience in manufacturing solid waste recycling equipment
✅ CE and ISO certified products, exported to more than 80 countries
✅ Professional technical team provides customized solutions
✅ 12-month warranty period and lifelong after-sales service
✅ Fast delivery time: 15-30 days for standard models
✅ Overseas installation and commissioning service available
Contact us today to get the latest price and detailed technical information about our products. Our professional engineers will provide you with the most suitable recycling solution according to your needs.
