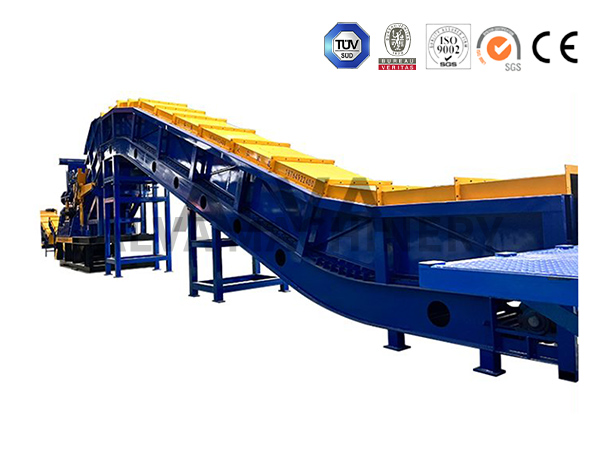

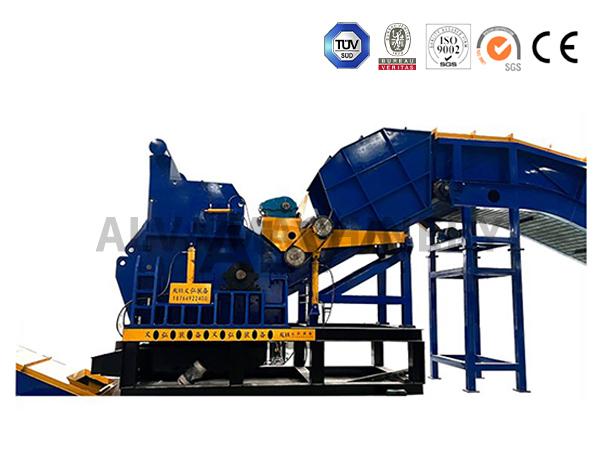

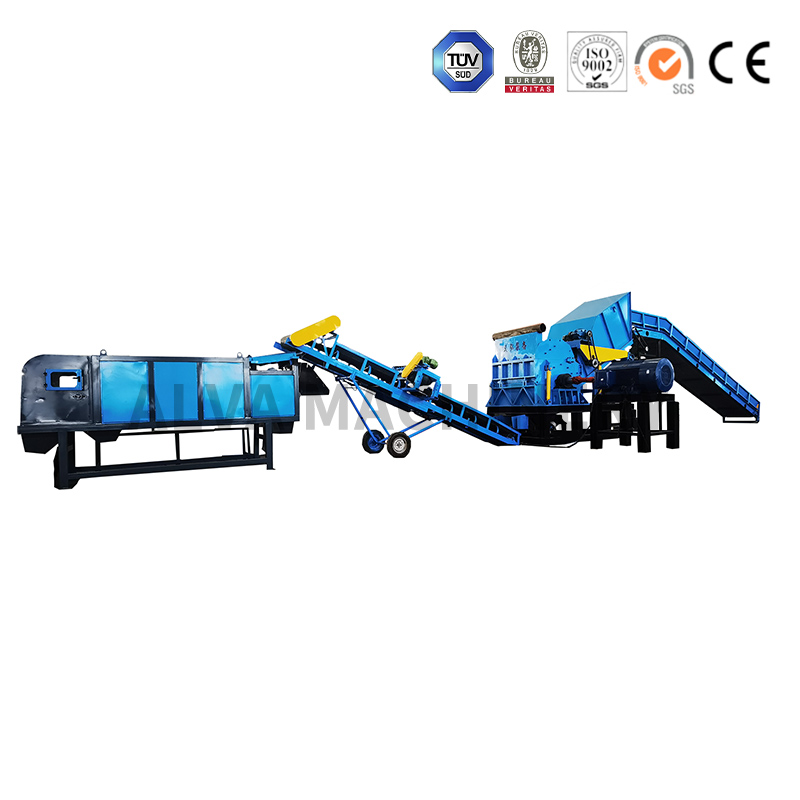

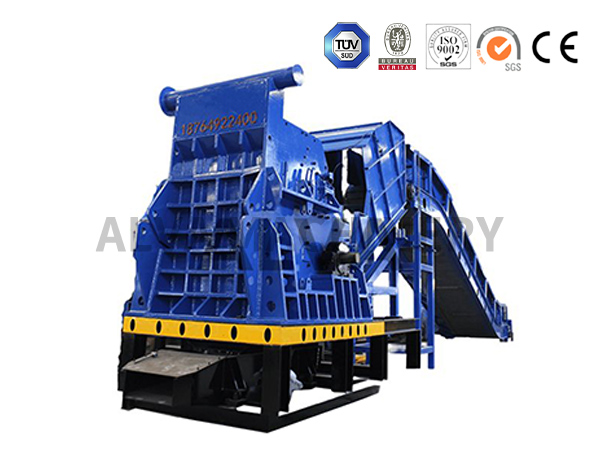

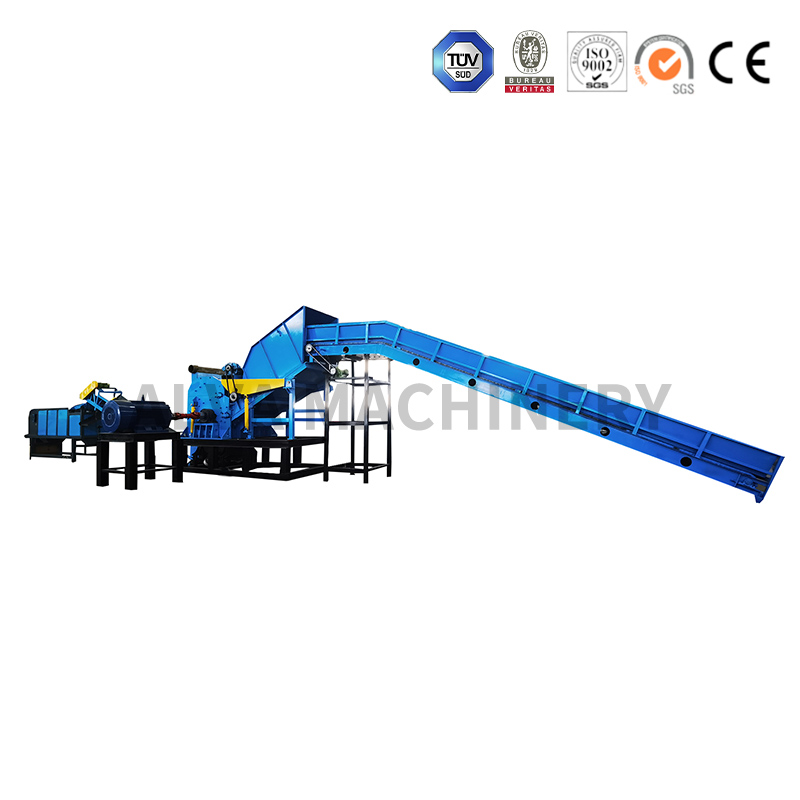

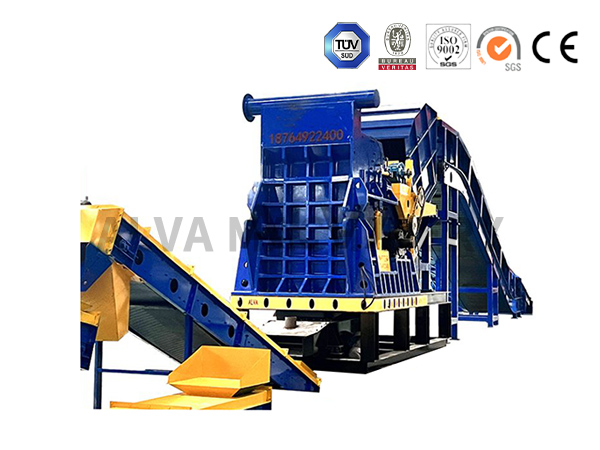

Metal crusher, also known as metal crusher, is a machine for crushing waste metal materials, mainly composed of crusher blade group, bearing box, box bracket, feeding system, power system, electrical control system, etc., through the supporting conveyor, host, unloader, sorting machine to form a complete production line. Metal crusher can deal with various types of metal waste, including cans, paint buckets, waste household appliances, bicycles, auto parts, waste metal furniture, cable and wire, metal pressing block, aluminum profiles, iron sheet, copper products, etc., can remove metal magazines, separate and purify different broken materials, can also choose the appropriate crushing mode according to the nature of the material, Control the size of the broken material to meet different needs.
| Quantity: | |
|---|---|
Technical Parameter
| Serial Number | Model | Feed Particle Size (mm) | Fan Motor Power (kw) | Output (tons/hour) | Processed Material Output (tons/hour) | Transformer Requirement (kv) | Length (m) | Width (m) | Height (m) | Floor Area (m²) |
| 1 | ALVA-MCM-75 | 900 mm | 75 kw | 1 | 2 | 125 KVA | 21 | 4 | 2.7 | 100m² |
| 2 | ALVA-MCM-110 | 1000 mm | 110 kw | 1.5 | 2.5 | 160 KVA | 34 | 4 | 2.78 | 150m² |
| 3 | ALVA-MCM-132 | 1260 mm | 132 kw | 1 | 3 | 200 KVA | 36 | 4.5 | 2.8 | 180m² |
| 4 | ALVA-MCM-160 | 1460 mm | 160 kw | 3~4 | 5~6 | 250 KVA | 36 | 5 | 2.9 | 280m² |
| 5 | ALVA-MCM-200 | 1500 mm | 200 kw | 4~5 | 7~8 | 315 KVA | 37 | 6 | 3.3 | 300m² |
| 6 | ALVA-MCM-315 | 1600 mm | 315 kw | 6~7 | 8~10 | 500 KVA | 39 | 6.5 | 4.5 | 350m² |
| 7 | ALVA-MCM-450 | 1600 mm | 450 kw | 8~9 | 10~12 | 630 KVA | 48 | 7 | 6 | 480m² |
| 8 | ALVA-MCM-630 | 1800 mm | 630 kw | 10~11 | 14~16 | 10 KVA | 55 | 7.5 | 6 | 1000m² |
| 9 | ALVA-MCM-750 | 1800 mm | 750 kw | 11~12 | 16~18 | 10 KVA | 60 | 7.5 | 6 | 1000m² |
| 10 | ALVA-MCM-900 | 220 mm | 9900 kw | 14~15 | 18~20 | 10 KVA | 75 | 8 | 7.2 | 1160m² |
| 11 | ALVA-MCM-2000 | 250 mm | 1600 kw | 16~18 | 22~24 | 10 KVA | 80 | 9 | 7.6 | 1700m² |
Honor Display
 |  |  |  |  |  |
 |  |  |  |  |  |
Product Uses
Metal crusher is widely used in metal recovery, metal processing and other fields:
1、Metal recycling: Pre-treatment of scrap metal, facilitate subsequent sorting and transportation, improve the efficiency of recycling.
2、Metal processing: Scrap metal or metal waste broken into the appropriate size of raw materials, improve the processing performance of metal, to achieve the recycling of resources.
Product Operate Guide
Start the equipment, put the metal material to be treated into the feed port, pay attention to the size, shape and impurities of the material, set the appropriate working parameters of the crushing mechanism according to the need, such as the speed, crushing degree, etc., pay attention to the adjustment according to the material condition, shut down the equipment and cut off the power after the material is broken.
Product Video
Customer Communication
 |  |  |  |  |  |
 |  |  |  |  |  |
 |  |  |  |  |  |
Packaging & Shipping
 |  |  |
 |  |  |
 |  |  |
FAQ
Q1: Do you customize products for customers?
A1: Yes, we can customize and produce crushing machinery according to customers' requirements or drawings.
Q2: How about the quality of your products?
A2: We can provide you with samples for quality inspection. If you order, we guarantee the same quality as the sample. If there is a quality problem, we can sign an agreement and let our company perform the duties.
Q3: How can we trust your factory?
A3: We suggest that you come to our factory to see the goods, verify the real situation of the products, and learn more about our factory.
Q4: Why do prices change so often?
A4: The price depends on the latest prices of raw materials.
Q5: What about contract signing?
A5: If you are satisfied with the product and our service, you can sign a contract with us, pay a deposit, and then we will produce the machine as soon as possible. If you are far away, we can sign the contract by fax. We will ensure the quality of products and accessories complete.
Q6: What about delivery?
A6: When the product is ready, it will be delivered to you after full payment. Technical guidance will be provided.
