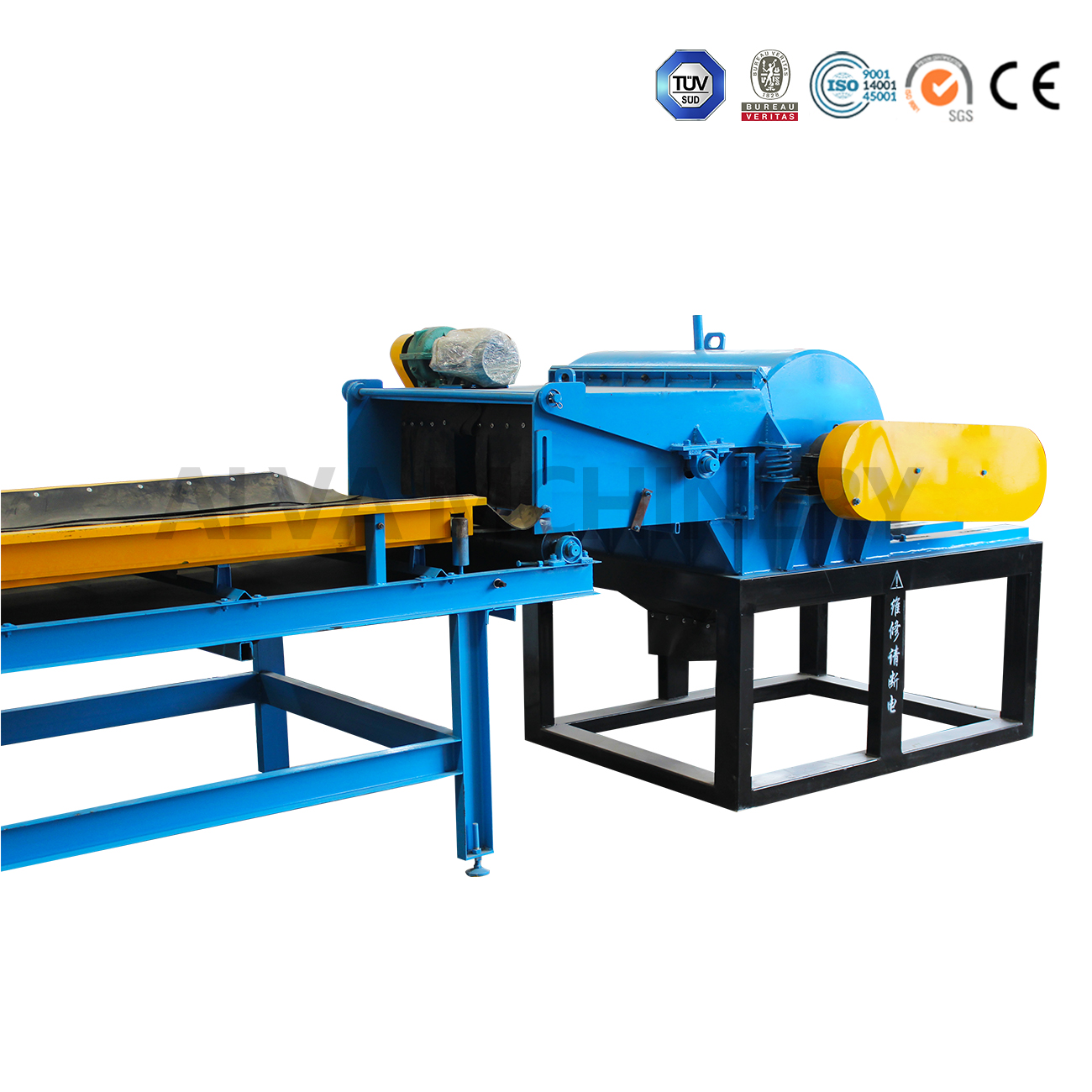

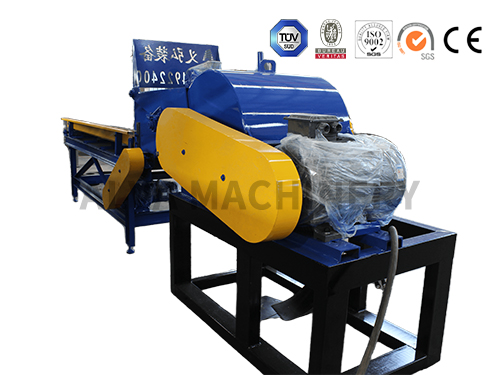

This heavy-duty industrial crusher is specifically designed for global polyvinyl chloride (PVC) plastic recycling and processing scenarios. It is optimized for the characteristics of hard/soft PVC materials and meets the safety, electrical, and environmental standards of major global markets such as the EU, the US, Southeast Asia, the Middle East, and Australia. It provides stable, efficient, and safe crushing solutions for PVC pipe manufacturers, profile processing plants, and plastic recycling companies.
| Quantity: | |
|---|---|
ALVA-PCM
ALVA
This series of PVC plastic crushers is an industrial crushing equipment specifically developed for the unique characteristics of PVC materials, such as high viscosity, easy melting, and corrosiveness. It can efficiently process all types of PVC waste, including rigid PVC (pipes, profiles, sheets, fittings), soft PVC (films, cable sheaths, artificial leather, hoses), PVC machine heads, scraps, and waste products, with uniform and adjustable output particle size.
The equipment fully complies with ISO 9001 quality management system, CE machinery safety directive, UL electrical safety standards, and IEC 60204 mechanical and electrical specifications. It can be customized for voltages/frequency in various countries worldwide and is exported to over 100 countries and regions in Europe, America, Southeast Asia, the Middle East, Africa, and South America. It is widely used in industries such as plastic recycling, PVC building materials production, wire and cable, and packaging printing.
Core Product Advantages
Core Advantages: | Detailed Specifications | |
PVC-specific crushing design | Addressing the characteristics of PVC being prone to sticking and clogging, the blade angle and crushing chamber structure have been optimized to prevent sticking and clogging. It is suitable for all types of soft and hard PVC materials and can operate continuously and stably without additional cooling. | |
Fully compliant with global standards | The entire machine is CE and UL certified. The electrical system complies with the IEC 60204 international standard and is compatible with 110V-480V full voltage and 50/60Hz dual frequency, meeting the power grid and compliance requirements of various countries worldwide. | |
High efficiency, energy saving, and low consumption | Standard configuration includes an IE2/IE3 international energy efficiency grade motor, saving 15%-20% more energy than ordinary crushers. The optimized rotor structure improves crushing efficiency, increasing capacity by 20% at the same power, with a discharge uniformity of ≥95%. | |
Comprehensive safety protection | A dual mechanical and electrical safety interlock system complies with the EU EN 1010 mechanical safety standard, providing comprehensive protection for operator and equipment safety from hardware to circuitry. | |
Easy-to-maintain modular design | Core components adopt a quick-release structure, allowing for rapid replacement of blades, screens, and liners. Routine maintenance requires no special tools. Wear parts use internationally compatible models, ensuring high global availability of spare parts. |
Product details and core structure
1. Fuselage main body
Made of heavy-duty thickened Q235B steel plate, the entire structure is annealed to eliminate internal stress, and it can operate at high speed for 24 hours without vibration or deformation. The surface is treated with anti-corrosion powder coating, which is suitable for the weak acid and alkali environment of PVC processing. The service life is ≥15 years.
2. Crushing chamber
The V-shaped exclusive crushing chamber design optimizes the feeding trajectory for PVC materials, preventing material blockage at the source. The chamber is equipped with replaceable high-manganese steel Mn13Cr2 wear-resistant liners, 20-30mm thick, which are impact-resistant and corrosion-resistant, effectively protecting the main body of the chamber and reducing maintenance costs.
3. Tooling system (core component)
• Material: Made of imported SKD-11/D2 high-alloy wear-resistant tool steel, vacuum quenched and cryogenically treated, achieving an overall hardness of HRC58-62, and improving cutting edge wear resistance by 3 times;
• Dedicated Design: Optimized cutting edge angle for PVC materials, preventing sticking and melting, suitable for all scenarios of crushing soft PVC film and rigid PVC pipes;
• Economy: The moving blade can be used on both sides, and the fixed blade can be used on all four sides. No need to replace the entire blade after wear, significantly reducing operating costs;
• Adjustability: The gap between the moving and fixed blades can be precisely adjusted to adapt to PVC materials of different hardness and thickness.

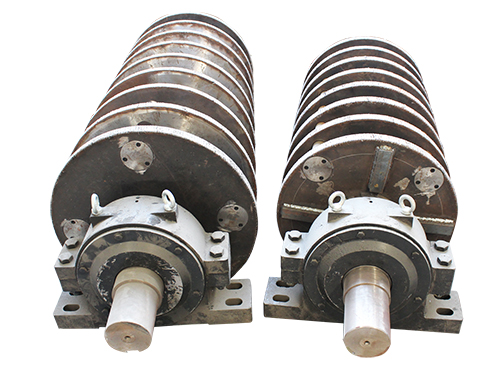

4. Rotor system
The heavy-duty one-piece forged rotor has a dynamic balance accuracy of international G2.5 level. It can operate stably at the highest speed without vibration and with low noise. The rotor shaft is made of 40Cr alloy tempered steel, which is impact-resistant and fatigue-resistant, and is suitable for continuous industrial operation conditions.
5. Feeding and discharging system

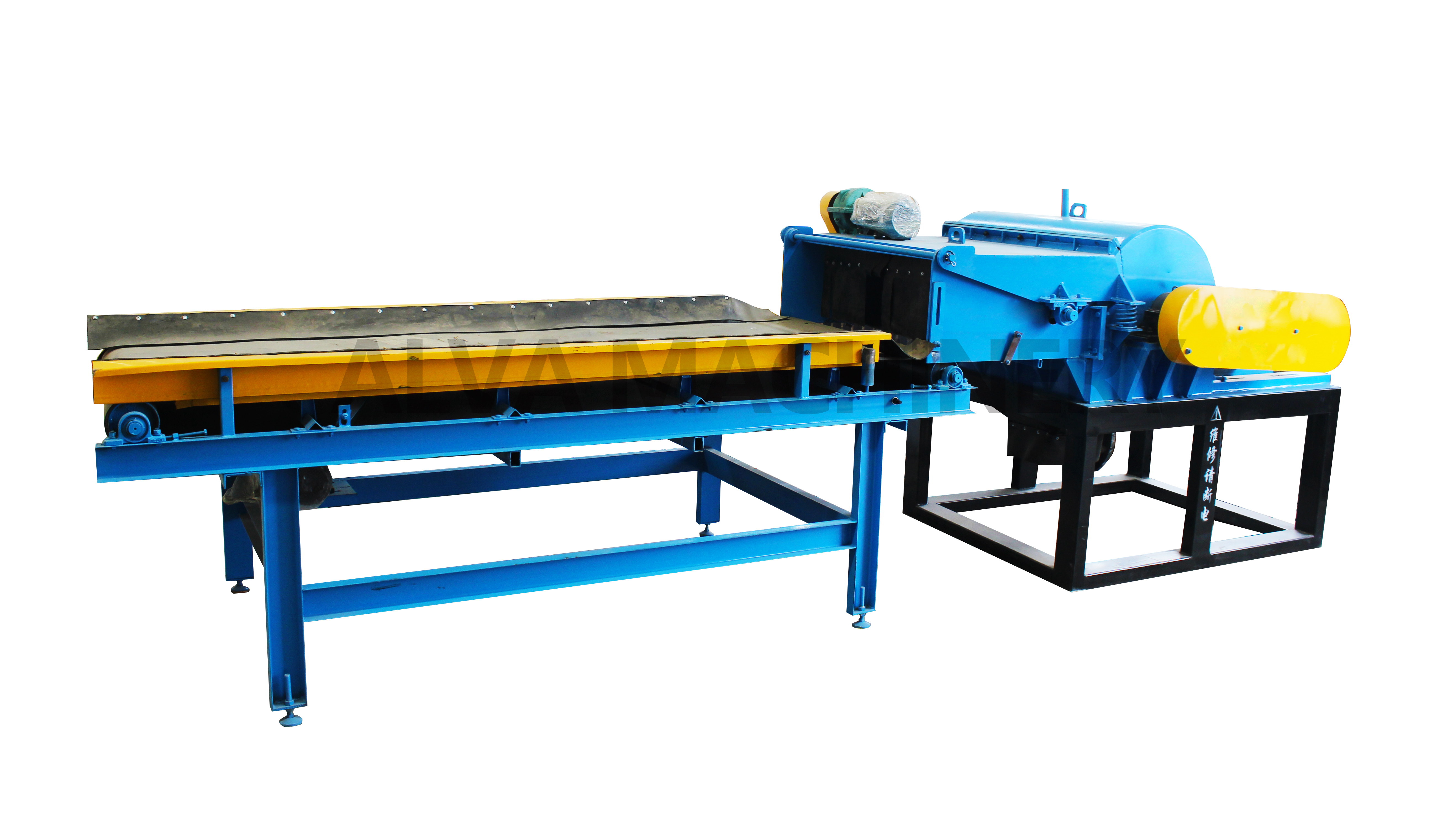

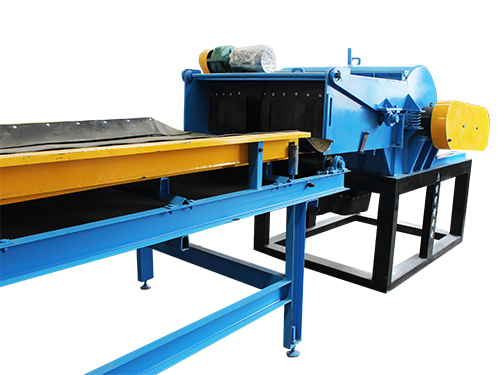

• Feeding: Standard configuration includes a widened anti-splash feed hopper; optional conveyor belt/screw feeder available for integration with automated production lines; built-in anti-rebound baffle at the feed inlet prevents material splashing and injury.

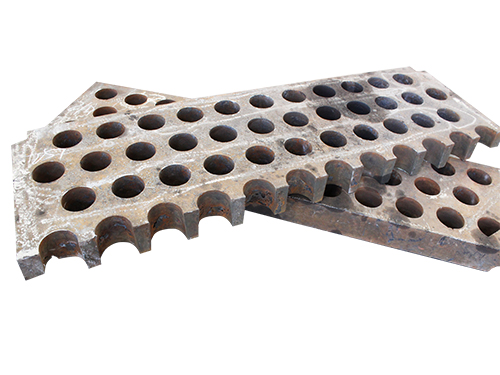

• Discharge: Standard configuration includes a replaceable perforated screen with customizable apertures from 3-50mm, ensuring uniform particle size; the screen features quick-release bolts for rapid disassembly, replacement, and cleaning without disassembling the entire machine.
Standard configuration and optional configuration
▶ Standard configuration (covering all basic models)
1. Heavy-duty welding main unit body
2. SKD-11 high-alloy moving/stationary blade assembly
3. High-manganese steel wear-resistant liner
4. IE2/IE3 energy-efficient international brand three-phase asynchronous motor
5. Electrical control cabinet conforming to IEC standards (Schneider/ABB core components)
6. Full-point safety interlock and emergency stop system
7. Replaceable discharge screen
8. Thickened shock-absorbing and noise-reducing base
9. Multilingual safety signs and operation manual
▶ Optional configurations (customized to meet the needs of global customers)
1. Automated Feeding System: Belt conveyor, screw conveyor, grab bucket conveyor
2. Discharge Supporting System: Discharge conveyor belt, storage silo, cyclone separator
3. Environmental Protection Supporting System: Cyclone dust collector + pulse bag dust collector (anti-static, suitable for PVC dust, meets global environmental standards)
4. Temperature Control Supporting System: Water-cooled/air-cooled cooling system (for high-viscosity soft PVC crushing)
5. Intelligent Control System: Siemens/Schneider PLC + touch screen, real-time monitoring of operating status, fault alarms, and data logging
6. Remote Operation and Maintenance System: 4G/5G remote monitoring module, supporting global remote fault diagnosis and debugging
7. Noise Reduction Supporting System: Fully enclosed soundproof enclosure, noise level can be reduced to ≤75dB(A)
8. Customized Adaptation: Customized voltage/frequency, customized crushing solutions for special materials, customized production line integration
Applicable Scenarios and Materials
• Compatible materials
• Rigid PVC: PVC pipes, PVC door and window profiles, PVC sheets, PVC fittings, rigid PVC sheets, PVC decorative panels;
• Flexible PVC: PVC film, PVC artificial leather, PVC cable sheathing, PVC hoses, flexible PVC packaging, PVC automotive interior trim;
• Other PVC products: PVC waste bottles, PVC toys, PVC machine head materials, PVC scraps, PVC recycled material blocks.
Suitable industries
• Plastics recycling industry
• PVC pipe/profile manufacturers
• Wire and cable manufacturers
• Packaging and printing industry
• Automotive parts processing industry
• Building materials processing industry
• Waste material recycling industry
