Heavy Duty Hard Plastic Crusher for ABS, PP, PE & Pallet Recycling
| Quantity: | |
|---|---|
Alva Machinery

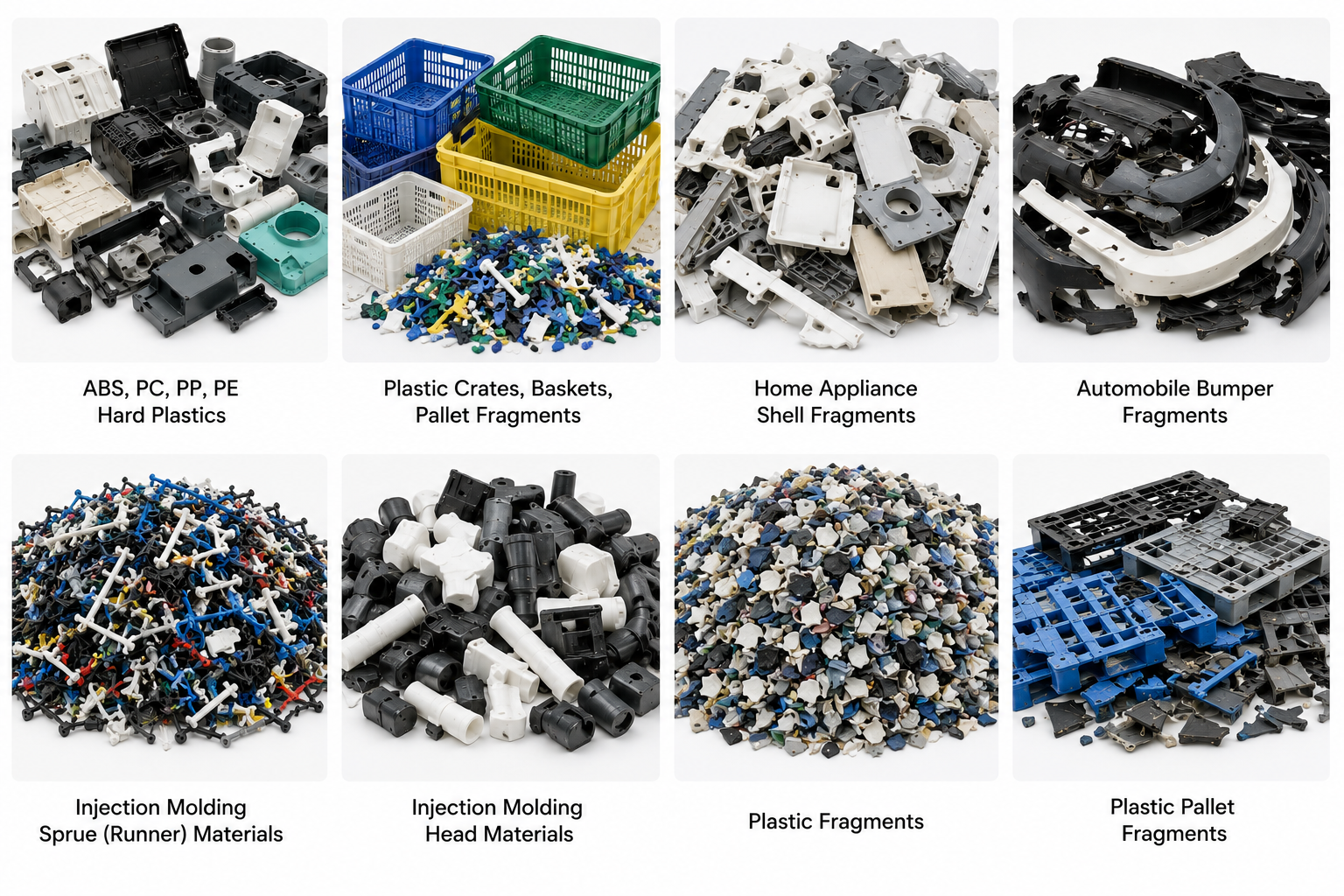

Alva Machinery Rigid Plastic Crusher is a heavy-duty secondary crushing equipment specially designed for thick and hard plastic waste recycling. It adopts professional claw blade shear system, which can efficiently crush various rigid plastic materials into uniform particles with high impact resistance and low fine powder generation. Our hard plastic crushers are widely used in injection molding factories, plastic recycling centers and home appliance dismantling plants, with processing capacity ranging from 0.5t/h to 10t/h.
Our double shaft metal scrap shredder can process various ferrous and non-ferrous metal wastes:
Note: Customized configurations are available according to your specific material and output requirements.
Model | Feed Opening Size (mm) | Motor Power (kW) | Blade Quantity | Processing Capacity (t/h) | Overall Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|---|---|
ALVA-PC-400 | 400×300 | 18.5 | 12 | 0.5-1.5 | 2000×1400×1800 | 2800 |
ALVA-PC-RP600 | 600×400 | 37 | 18 | 1.5-3.5 | 2400×1800×2200 | 5200 |
ALVA-PC-RP800 | 800×500 | 55 | 24 | 3.5-6 | 2800×2200×2600 | 8500 |
v-RP1000 | 1000×600 | 90 | 30 | 6-10 | 3200×2600×3000 | 13500 |
Heavy-Duty Claw Blade System
Standard configuration of Cr12MoV alloy steel claw blades, heat treated to HRC 58-62
Each claw has 2-3 sharp cutting edges, providing strong tearing and shearing force
Blades can be turned over for use, single blade service life up to 800 hours
High Rigidity Rotor & Stable Operation
Integral forged rotor shaft with dynamic balance calibration, no vibration during long-term operation
Large diameter rotor design, can withstand the impact of large hard plastic blocks
Rotor speed optimized at 700-900rpm, balancing crushing efficiency and energy consumption
Intelligent Overload Protection
Siemens PLC automatic control system with real-time current monitoring
Automatic reverse and shutdown protection when overloaded, effectively preventing jamming and blade damage
Emergency stop button and safety interlock device, ensuring operator safety
Easy Maintenance & User-Friendly Design
Hydraulic flip-top body design, one-button opening for internal inspection and blade replacement
Quick-release screen mesh structure, easy to replace screen with different apertures
Fully enclosed crushing chamber with dust removal interface, meeting international environmental protection standards
✅ 20+ years of experience in manufacturing solid waste recycling equipment
✅ CE and ISO certified products, exported to more than 80 countries
✅ Professional technical team provides customized solutions
✅ 12-month warranty period and lifelong after-sales service
✅ Fast delivery time: 15-30 days for standard models
✅ Overseas installation and commissioning service available
Contact us today to get the latest price and detailed technical information about our products. Our professional engineers will provide you with the most suitable recycling solution according to your needs.
