In fields such as wood processing and biomass energy processing, the performance of wood chippers directly determines production efficiency and cost control. With over 30 years of experience in woodworking
machinery, Alva Machinery, through meticulous refinement of core components, has developed wood chippers that combine efficiency, durability, and stability. These advantages can be analyzed in depth from
three key dimensions: blade material, motor configuration, and overall design. This has made them a highly recognized "crushing tool" in the industry.
1. Blade Material: Military-grade material, wear-resistant and impact-resistant, with a 200% longer lifespan.

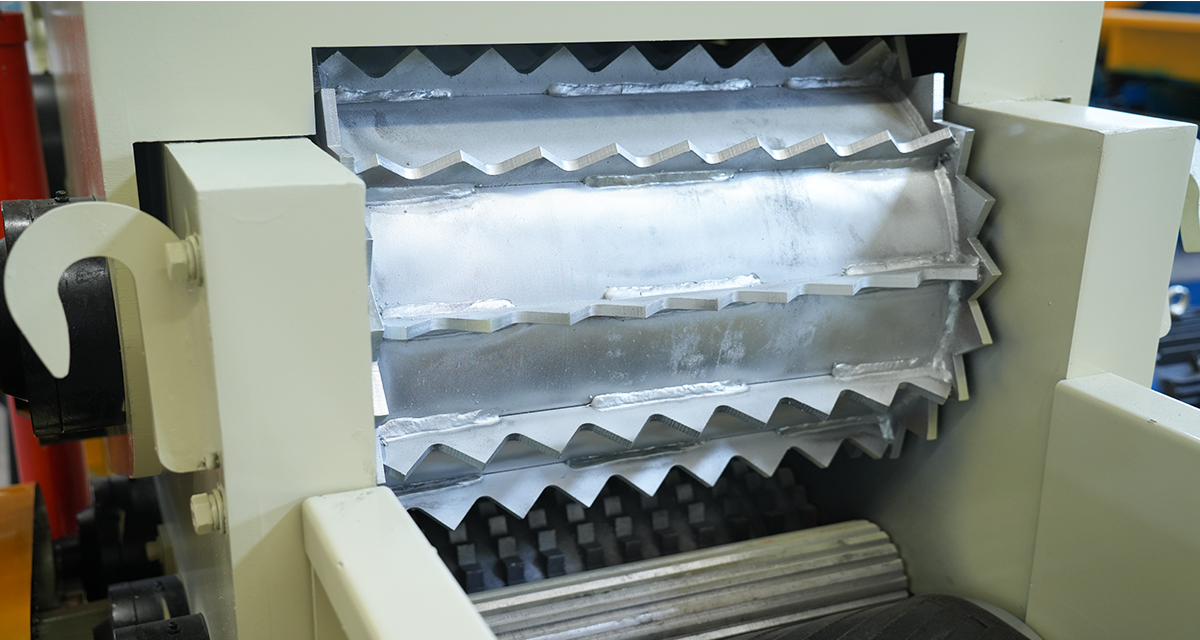

As the core cutting component of a wood chipper, the blade's material and craftsmanship directly impact both crushing efficiency and replacement frequency. The Alva wood chipper utilizes a dual-strengthening
process of 65Mn spring steel and a tungsten carbide composite coating, fundamentally addressing the wear and cracking issues of traditional blades:
Base Material: 65Mn spring steel – This material has a moderate carbon content, combining high hardness (HRC 58-62 after quenching) with strong toughness. It easily handles impact cutting of hardwoods
(such as oak and teak) and wet materials (moisture content ≤30%), preventing blade breakage caused by excessive brittleness.
Surface Strengthening: Tungsten Carbide Composite Coating – Using vacuum plasma spraying technology, a 50-80μm thick tungsten carbide coating is applied to the blade edge. Its hardness reaches HV1800-2200,
offering wear resistance over three times that of conventional blades. It can continuously crush 500 tons of wood without sharpening, extending its service life by 200% compared to conventional blades.
Structural Design: Staggered Double-Edge Layout – The blades utilize a "30° forward tilt and staggered arrangement." The design reduces resistance during each cut and prevents wood from jamming. Even when
processing materials with branches and bark, it achieves seamless crushing. The crushed particle size uniformity (95% ≤5mm) far exceeds industry standards.
2. Motor Configuration: A pure copper-core, high-efficiency motor provides powerful power and energy efficiency, with a load factor of 90%.
The motor is the "power heart" of the wood chipper. Its power matching and energy efficiency rating directly determine the equipment's operational stability and energy costs. The Alva wood chipper is equipped
with the YE3 series ultra-high-efficiency three-phase asynchronous motor, achieving breakthroughs in both power output and energy consumption control:
Core Material: 100% pure copper enameled wire - Compared to the aluminum wire motors used by some brands in the industry, pure copper enameled wire offers 35% higher conductivity and 20% lower losses.
It can operate stably with voltage fluctuations of ±10%, preventing motor burnout caused by voltage instability.
Power Matching: Customizable and Precisely Adaptable - 15kW-160kW motors are available to meet different production capacity requirements (5-50 tons per hour). A redundant design based on "motor power =
crushing load x 1.2" ensures no power shortages or stalls when processing high-density wood. The load factor remains consistently above 90%, resulting in a 15% improvement in crushing efficiency compared to
similarly powered equipment.
Energy-Saving Design: YE3 Class 1 Energy Efficiency - The motor meets the national Class 1 energy efficiency standard, with an energy efficiency value (IE3) of ≥0.94, significantly lower than conventional
Compared with IE2 motors, it can save 1.2-5.8 kWh of electricity per hour. Based on 300 days of operation per year (8 hours per day), the average annual electricity bill savings for a single device exceeds 10,000
yuan, providing strong support for enterprises to reduce costs and increase efficiency.
3. Overall Design: Humanized + Intelligent, Adaptable to Multiple Scenarios, Reducing Operation and Maintenance Costs by 30%
In addition to core components, the Alva wood chipper features optimized overall structure and ease of use, further enhancing its advantages:
Feeding System: Double-Screw Forced Feeding – Equipped with a variable-speed double-screw feeder, it automatically adjusts the feeding speed based on the moisture and hardness of the feedstock, preventing
equipment overload caused by uneven manual feeding. An anti-rebound grille is also installed at the feed inlet to ensure operator safety.
Crushing Chamber: Detachable Design – The crushing chamber utilizes a bolted, detachable structure. Daily cleaning and blade replacement require no disassembly of the entire machine. Maintenance can be
completed by a single operator in 30 minutes, reducing maintenance time by 60% compared to traditional welded crushing chambers.
Dust Removal System: Built-in Pulse Dust Collector – The machine incorporates a pulsed bag dust collector, achieving a dust collection rate of 99.5% and an emission concentration of ≤10mg/m³, meeting
national environmental standards. This eliminates the need for additional dust removal equipment, saving companies money on environmental protection investments.
Conclusion: Empowering Green Circulation with Solid Quality
Alva Wood Chippers always prioritize customer needs. Through meticulous refinement of core components and continuous optimization of the overall design, they achieve the triple benefits of efficient crushing,
long-lasting durability, and energy conservation and consumption reduction. Currently, this equipment is widely used in biomass pellet plants, wood-based panel plants, and gardening and sanitation industries,
serving over 2,000 customers worldwide. With CE and SGS international certifications, it has become a representative example of Chinese woodworking machinery going global. In the future, Alva Machinery will
continue to deepen its core technology, providing global customers with more competitive wood crushing solutions and contributing to the development of a green and circular economy.
