Selecting the right shredding equipment is a strategic decision for any recycling plant, waste management operator, or manufacturing facility. A double shaft shredder is often the core machine in a size-reduction line because it can handle bulky inputs, mixed materials, and challenging feedstocks with stable torque and consistent throughput. However, not all double shaft shredders are built for the same duty cycle, material profile, or downstream process.
In this guide, we share how we evaluate shredder requirements in real projects—so you can choose a double shaft shredder that fits your material stream, output goals, and operating constraints, while avoiding costly oversizing, frequent blade changes, or bottlenecks downstream.

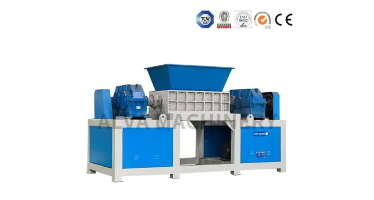

A double shaft shredder uses two counter-rotating shafts fitted with cutters that pull material in, shear it, and reduce it into smaller pieces. Compared with some high-speed shredders, double shaft designs are typically low-speed, high-torque, which brings three practical advantages:
High bite and strong pulling force for bulky items
Stable processing of mixed materials with less bouncing or “skipping”
Reduced dust and heat in many applications due to lower speed
For many recycling lines, the double shaft shredder is the front-end machine that prepares material for downstream separation, granulation, or densification.
The best shredder selection starts with the feedstock. “Plastic” or “metal” is too broad—what matters is the actual combination of properties that affect cutting and torque demand.
Key material questions we typically confirm:
Material type: plastic film, rigid plastic, pipes, rubber, tires, scrap metal, e-waste housings, wood pallets, etc.
Wall thickness and density: thick HDPE vs. thin PET vs. composite pieces
Contaminants: sand, stones, glass, metal inserts, textiles, moisture
Form factor: large hollow items, bundles, bales, long strips, tangled parts
A shredder built for rigid plastic purge lumps may struggle with film and woven sacks (wrapping risk), while a shredder configured for municipal bulky waste may not deliver the consistent output needed for pelletizing lines.
A double shaft shredder can be used as a primary shredder (coarse size reduction) or a primary + controlled sizing step, depending on cutter configuration and screen strategy.
Ask:
What is your target output size (e.g., 30–80 mm, 80–150 mm, etc.)?
Is the goal easy transport, sorting, washing, granulation, or RDF/SRF preparation?
Do you need uniform particle size or is coarse size acceptable?
If your next step is a granulator, you may only need coarse pre-shredding to protect downstream knives and stabilize feeding. If your next step is sorting (magnet, eddy current, air separation), consistent size improves separation efficiency.
Most shredders perform well on average material. The selection mistake happens when the machine meets average needs but fails under peak load—thicker pieces, occasional metal contamination, or cold-temperature plastics that become brittle.
We recommend you size for:
Worst-case material hardness and thickness
Peak feed events (bundles, compacted items, oversize parts)
Duty cycle: intermittent vs. continuous operation
A properly matched torque profile reduces unplanned stops, protects gearboxes, and keeps output stable.
Cutter design is the heart of a double shaft shredder. Key parameters include:
Cutter diameter and thickness
Hook profile (aggressiveness and bite)
Cutter material and heat treatment
Knife arrangement (stagger pattern, spacing)
Wear strategy (reversible cutters, resurfacing plan)
Practical guidance:
Film, woven bags, soft plastics: require anti-wrapping considerations and the right hook profile to avoid long stringers.
Rigid plastics, household goods: benefit from balanced bite and stable cutting geometry.
Tires, rubber: need tougher cutters and robust drive to handle elasticity and rebound.
Metal-containing scrap or e-waste: demands wear-resistant tooling and conservative sizing to prevent shock loads.
A strong cutter selection can cut your wear cost dramatically over time.
Double shaft shredders are typically low-speed, but the exact speed range impacts throughput, dust, and how the material behaves.
Consider:
Low speed / high torque for bulky, mixed, or tough materials
Controlled feeding using conveyors, hoppers, or hydraulic pushing devices
Anti-bridging hopper design for light materials that “float” or form bridges
If you process film or light packaging, feeding and hopper geometry can be as important as cutter design.
In real operations, contaminants happen. A shredder that survives contaminants safely will reduce downtime and protect your investment.
Features we often recommend evaluating:
Overload protection and automatic reversal logic
Torque limiting or intelligent control strategies
Robust chamber and wear plates
Bearing protection and sealing to reduce dust ingress
Emergency stop and guarding aligned with site safety practices
If your input stream is highly variable, these protections are not optional—they are essential.
Upfront purchase price is only one part of the economic picture. For shredders, the long-term cost is heavily influenced by:
Knife wear rate (depends on material and cutter metallurgy)
Knife replacement speed and accessibility
Bearing and seal lifetime
Gearbox reliability and lubrication discipline
Operator training and daily inspection routines
A shredder designed for easy access—simple knife removal, clear service points, and durable wear parts—typically delivers better uptime and lower lifecycle cost.
A double shaft shredder does not operate alone. It must match the rhythm and constraints of upstream and downstream equipment:
Infeed conveyor capacity and hopper design
Discharge conveyor and metal separation steps
Granulator or secondary shredder capacity
Dust control, noise control, and layout constraints
Power supply and space limitations
The “best shredder” is the one that creates a stable, predictable output that your entire line can absorb.
Prioritize: consistent output, anti-jam control, efficient knife design, easy maintenance.
Prioritize: feeding control, anti-wrapping knife geometry, stable low-speed torque.
Prioritize: wear resistance, chamber robustness, overload protection, conservative sizing.
Prioritize: high torque, tough tooling, strong drive and gearbox, wear management plan.
Prioritize: contaminant tolerance, intelligent reversal, wear parts, safe guarding and sealing.
Choosing a double shaft shredder is not just about buying a machine—it’s about building a reliable size-reduction stage that supports your recycling objectives, protects downstream equipment, and controls operating costs over the long term. The right selection starts with a clear definition of your material stream and ends with a shredder configuration that matches your target output size, duty cycle, and maintenance reality.
At Shandong Alva Machinery Co., Ltd., we work closely with recycling and manufacturing operators to recommend double shaft shredder configurations that align with real processing needs—material behavior, throughput targets, and line integration. If you are planning a new line, upgrading capacity, or dealing with frequent jams and wear issues, you can contact us to learn more about suitable solutions and practical configuration options.
Q: What should I consider first when choosing a double shaft shredder?
A: Start with your material stream—type, thickness, contaminants, and form factor—because these determine torque demand, cutter design, and the risk of wrapping or shock loads.
Q: How do I choose the right output size for my recycling process?
A: It depends on the next step. For sorting and separation, a more consistent size improves efficiency; for pre-shredding before granulation, coarse output may be sufficient to protect downstream knives.
Q: Why does cutter design matter so much in double shaft shredders?
A: Cutter geometry and metallurgy directly affect bite, throughput stability, and knife wear rate. The right cutter configuration reduces jams, lowers maintenance frequency, and improves total cost of ownership.
Q: Can one double shaft shredder handle mixed materials reliably?
A: Yes, but the shredder must be sized for the worst case and configured with the right cutters, sealing, and overload protection. Mixed streams often require stronger wear management and smarter control logic.
