In the modern waste plastic recycling and processing system, continuous automatic production is an important criterion for measuring the standardization and international adaptability of production lines. The plastic sorting, crushing and milling line is a multi-equipment series process system. The complete closed-loop workflow consists of feeding system, crushing system, air sorting system, silicone sorting system, buffer storage system, grinding and dust removal system.
Each piece of equipment differs in processing speed, instantaneous feeding volume and operation rhythm. Without dedicated buffer storage equipment, it is easy to experience material supply interruption, material accumulation, equipment idling and load fluctuation. These problems seriously affect production stability and finished product quality, and cannot meet the requirements of continuous operation, standardized production and low failure rate in overseas factories.
The material buffer hopper, also known as storage hopper or buffering silo, is an essential connecting unit in the plastic sorting, crushing and milling line. It does not undertake crushing or impurity sorting tasks, but focuses on material storage, flow stabilization, process buffering and quantitative feeding.
Designed and manufactured in accordance with international industrial specifications, foreign trade safety standards and automatic control logic, the buffer hopper receives high-purity plastic fragments discharged from the front-end silicone sorting equipment and supplies material steadily to the rear-end grinding system. It balances the operation rhythm of the entire production line, ensures continuous automatic operation, adapts to international projects, and meets compliance production requirements in overseas markets.
The plastic recycling sorting and milling line adopts a progressive assembly line process. Each device operates at different running speed and processing logic. The front-end tipper feeder provides continuous material supply; the crusher performs intermittent high-speed crushing; the air separator and silicone sorting machine require even material distribution and operate at a relatively steady speed.
The rear-end grinding system belongs to high-speed continuous processing equipment and demands extremely stable and uniform feeding. The speed difference between upstream and downstream processes is a common technical problem affecting finished quality in the plastic recycling industry.
The material buffer hopper perfectly fills the process gap of the whole production line. Installed after the silicone sorting equipment and before the grinding system, it acts as a material stabilizing transfer station and storage reservoir. High-purity plastic fragments processed by front-end sorting flow into the buffer hopper for temporary storage, instead of directly entering the grinding host.
With the built-in variable-speed conveying mechanism, the hopper supplies material to the grinding machine at a constant flow rate, completely solving unstable feeding caused by mismatched operation speed between sorting and grinding processes.
In the whole process chain, the buffer hopper directly determines the stability of final products. The front-end sorting equipment removes impurities to ensure material purity; the buffer hopper stabilizes material flow; the rear-end grinding and dust removal system complete finished production and environmental treatment.
Without a buffer hopper, the production line often suffers from material blocking, grinding overload, frequent start-stop operation and uneven particle size. These issues reduce efficiency, increase equipment wear, cause unstable quality of recycled plastic pellets, and fail to meet acceptance standards in Europe, Southeast Asia, the Middle East and other international markets. It directly affects enterprises’ export qualifications and product premium capability.

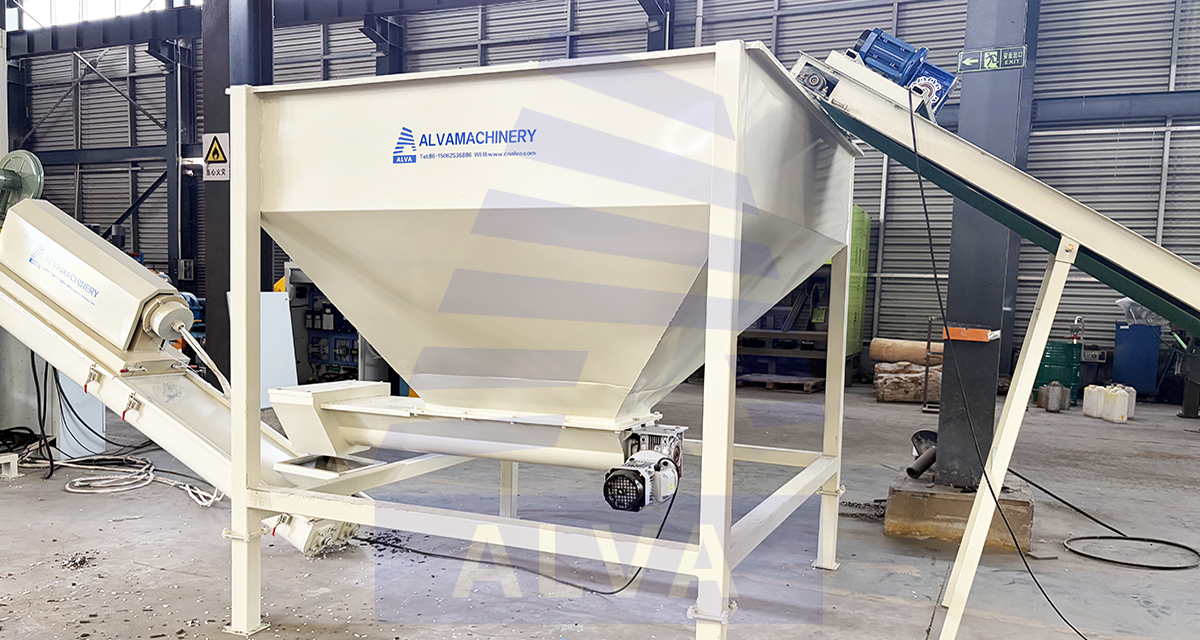

The material buffer hopper adopts an industrial modular design and is fully welded with thickened carbon steel plates. It features stable structure, strong load-bearing capacity, and is suitable for 24-hour non-stop continuous operation in overseas factories.
The main components include square storage bin body, large-angle conical hopper, bottom conveying mechanism, variable frequency drive assembly, material level monitoring sensor, PLC linkage control system, maintenance access opening and sealed protection structure. The overall design is simple, durable, with few wearing parts and low failure rate, meeting international industrial requirements of low maintenance and high durability.
The working principle is stable and reliable. Plastic fragments discharged from the upstream silicone sorting equipment fall into the hopper for centralized temporary storage. High-precision material level sensors monitor the material volume in real time and automatically link front-end sorting equipment and rear-end grinding equipment.
When the material level is low, the system automatically increases the feeding speed of upstream equipment. When the hopper is full, upstream machines slow down to avoid overflow and accumulation.
The bottom conveying mechanism adopts variable frequency speed regulation. Operators can precisely adjust the discharging speed according to the actual processing capacity of the grinding system, ensuring uniform, quantitative and continuous material supply.
The conical hopper is designed with a large inclined angle and smooth inner wall without dead corners. The structure effectively prevents material hanging, bridging, blocking and residue accumulation, ensuring first-in first-out operation without material retention or deterioration.
The whole machine adopts fully sealed structure. Inlet and outlet positions are equipped with sealed interfaces to reduce dust emission and optimize workshop environment. It can be perfectly connected with workshop dust removal system and baghouse dust collector to meet international clean production and environmental emission regulations. Standard maintenance openings are reserved for daily cleaning and inspection, lowering later operation costs and adapting to the high labor cost and low-maintenance demand of overseas factories.
The core function of the buffer hopper is material storage and process time balancing. The sorting process is refined and runs at a relatively low speed, while the grinding process runs continuously at high speed with large feeding demand. Speed mismatch is a common industry problem.
By material storage, homogenizing and flow stabilization, the buffer hopper converts fluctuating intermittent feeding into stable continuous discharging. It enables independent operation of front and rear equipment, ensures long-term continuous operation of the whole line, and greatly improves overall production capacity.
The uniformity of ground plastic pellets entirely depends on feeding stability. Excessive feeding causes grinding overload and incomplete crushing; insufficient feeding leads to equipment idling and irregular particle size.
With variable-frequency quantitative conveying, the buffer hopper maintains stable hourly feeding volume, keeping the grinding system working under optimal load. The produced recycled plastic pellets feature uniform particle size, consistent appearance and stable impurity content, fully complying with international recycled plastic trading standards.
Considering the characteristics of light plastic fragments that easily cause bridging and wall sticking, the hopper adopts a large-angle smooth structure with polished inner wall. The physical design fundamentally avoids blocking, material retention and accumulation.
With no complex vulnerable parts, the equipment runs stably with extremely low failure rate. It adapts to long-term industrial continuous production and meets standardized mass production requirements of large overseas renewable resource industrial parks.
The control system of the material buffer hopper can be connected to the central PLC system of the entire production line, realizing data exchange and linked start-stop with upstream sorting equipment and downstream grinding equipment.
It is equipped with high and low material level early warning, overload protection, material shortage protection and blocking alarm functions. The whole process requires no manual intervention and realizes fully automatic unmanned feeding. The highly automated operation conforms to the international trend of intelligent and labor-saving factory production.
The fully enclosed structure avoids open material dropping points and effectively restrains dust diffusion during conveying. It can work together with baghouse dust collectors for centralized dust treatment. Workshop dust concentration and noise indicators meet industrial environmental access standards in Europe, America, Southeast Asia and other regions, helping overseas factories pass environmental assessment and safety production audit smoothly.
The material buffer hopper is developed and manufactured strictly according to foreign trade export standards. Structural size, electrical configuration, safety protection, packaging transportation and technical documents all fully meet international project delivery requirements.
Adopting modular split structure, it is easy to disassemble and transport, occupies small space, and is suitable for container shipping and international marine transportation standards.
Electrical components adopt internationally well-known brands and support customized voltage and frequency to adapt to power grid standards in Europe, America, Southeast Asia, the Middle East, Africa and other regions. Overall safety structure, power-off protection and fault self-lock function comply with international mechanical safety specifications, meeting basic requirements of overseas industrial park admission, project acceptance and equipment certification.
All interfaces adopt international standard flange size with strong compatibility. It matches not only complete production lines of our brand, but also sorting and grinding equipment of other mainstream brands worldwide. It is suitable for old production line upgrading, new line supporting and general contracting of overseas projects.
Complete English drawings, operation manuals, maintenance documents and parameter instructions are delivered together with the equipment, satisfying the whole process needs of international project customs clearance, installation, commissioning and after-sales service.
The material buffer hopper is widely used in waste home appliance plastic recycling, automotive plastic dismantling and regeneration, industrial plastic scrap processing, daily chemical packaging plastic recycling and engineering plastic recovery. It serves small and medium processing factories as well as large standardized cross-border renewable resource production bases, acting as an indispensable supporting unit for automatic production lines.
Although regarded as auxiliary equipment in the plastic sorting, crushing and milling line, the buffer hopper directly determines the stability, yield capacity, product qualification rate and export qualification of the whole line.
Stable feeding makes recycled plastic products more standardized and unified, enabling domestic recycled raw materials to reach international trading grades and helping enterprises expand overseas trade markets. Meanwhile, its standardization, automation, low failure and low maintenance characteristics greatly enhance the international competitiveness of Chinese complete plastic recycling equipment.
The material buffer hopper is the core stabilizing and storage unit of the plastic sorting, crushing and milling line. It undertakes materials from the front-end fine sorting process and guarantees stable operation of the rear-end grinding process, playing a vital connecting role.
With advantages of stable storage, uniform feeding, anti-blocking performance, low energy consumption, automatic linkage, environmental compliance and international universality, it solves traditional pain points such as process disconnection, unstable feeding, uneven finished quality, high failure rate and inability to meet overseas compliance requirements.
As a standard essential unit of automatic production lines, the material buffer hopper provides solid equipment support for standardized, automated, green and international production of waste plastic recycling lines. It has become a standard configuration for modern recycled plastic production lines worldwide.
