As the global recycling industry continues its rapid evolution toward higher efficiency and greater material purity, Alva Machinery Group – a leading manufacturer of comprehensive recycling equipment including shredders, crushers, pulverizers, sorting systems, balers, and complete waste recovery lines – today releases an authoritative technical analysis of eddy current separators (ECS), focusing on the two dominant rotor architectures: eccentric and concentric designs.
With decades of engineering expertise in solid waste processing and metal recovery systems, Alva Machinery aims to empower recycling operators worldwide with clear technical guidance for selecting the optimal ECS configuration based on material characteristics, throughput requirements, and long-term operational economics.
Eddy current separation has become the industry-standard method for recovering non-ferrous metals such as aluminum, copper, zinc, and brass from mixed waste streams. The technology operates on a fundamental principle of electromagnetism: when a conductive material passes through a rapidly alternating magnetic field, eddy currents are induced within the material. These currents generate their own opposing magnetic field, creating a repulsive force – known as the Lorentz force – that propels the non-ferrous metal particles away from the conveyor trajectory, effectively separating them from non-conductive materials like plastic, glass, rubber, and wood.
At the heart of every eddy current separator lies a high-speed magnetic rotor assembly housed within the head pulley of a conveyor belt system. As the rotor spins at velocities often exceeding 3,000 RPM, it produces a high-frequency alternating magnetic field at the discharge point. Non-ferrous metals entering this field experience a strong repulsion that launches them into a separate collection chute, while non-conductive materials fall straight down under gravity.
"The effectiveness of an eddy current separator hinges on how the magnetic field is delivered to the material," explains the chief engineer at Alva Machinery Group's R&D center. "This is where the distinction between eccentric and concentric rotor designs becomes critical. Each architecture has been engineered to excel under specific operating conditions, and choosing the right one directly impacts recovery rates, product purity, and total cost of ownership."
The concentric design represents the original and more traditional eddy current separator architecture. In this configuration, the permanent magnetic rotor is positioned precisely at the geometric center of the outer drum shell, creating a symmetrical magnetic field distribution around the entire circumference of the pulley.
Key characteristics of concentric ECS:
Uniform field distribution: The magnetic field strength is consistent around the drum, providing a broad, even repulsion zone as material travels over the head pulley.
Strong overall ejection force: The symmetrical design maximizes the total area of magnetic interaction, delivering robust separation performance for larger, bulkier metal pieces.
Simplified mechanical structure: With the rotor centered on a fixed axis, the bearing and drive systems are mechanically straightforward, resulting in lower initial manufacturing cost and simpler maintenance.
Stable, predictable performance: The fixed pole geometry delivers consistent separation results when processing well-prepared, uniformly sized feed material.
Concentric separators excel when handling larger non-ferrous metal pieces – typically above 10 mm in diameter – where sufficient conductive surface area is available to generate strong eddy currents. They are widely preferred in applications such as scrap metal processing plants, automobile shredder residue lines, and demolition waste recovery systems where material size is relatively large and iron contamination has been largely removed upstream.
However, the concentric design has inherent limitations. Because the magnetic field begins acting on material as soon as it approaches the pulley, smaller and lighter particles can experience premature repulsion that disrupts their trajectory and reduces separation accuracy. Additionally, the fixed pole position cannot be adjusted to optimize the ejection angle for different material densities, making the concentric design less effective for fine-grained fractions below 5 mm.
Developed later to address the limitations of concentric designs, eccentric eddy current separators feature a magnetic rotor that is offset – or "eccentric" – from the center of the outer drum. This deliberate offset concentrates the strongest magnetic field precisely at the material discharge point, where particles are at the optimal position for separation.
Key characteristics of eccentric ECS:
Focused magnetic field: By shifting the rotor toward the discharge side, the peak magnetic flux is concentrated in a narrow, targeted zone at the exact point where material leaves the belt.
Adjustable pole position: Many eccentric designs allow the rotor angle to be fine-tuned, enabling operators to optimize the ejection parabola for specific material sizes and densities.
Superior fine-particle performance: The concentrated field delivers a sharp, intense repulsion impulse that effectively separates even small non-ferrous particles down to 2–3 mm, including fine aluminum flakes and copper granules.
Reduced ferrous interference: Because the strong magnetic zone is limited to the discharge point, ferrous particles that may have slipped past upstream magnetic separation are less likely to become trapped against the drum surface, reducing belt wear and heat buildup.
Eccentric technology has become the preferred choice for processing fine material fractions, electronic waste, incineration bottom ash, and other complex waste streams containing small non-ferrous particles. The ability to adjust the pole position also makes eccentric separators more versatile for facilities that handle multiple material types with varying particle sizes.
The tradeoff for this enhanced performance lies in mechanical complexity. The offset rotor requires a more sophisticated bearing assembly and support structure, increasing initial capital cost. The eccentric loading also places greater stress on bearings, potentially increasing maintenance frequency over the equipment lifecycle.
To help recycling operators make informed decisions, Alva Machinery Group has compiled a comprehensive comparison across seven critical performance dimensions:
Concentric separators feature a symmetrical rotor aligned perfectly with the drum axis, resulting in balanced mechanical loading and a simpler bearing configuration. Eccentric separators employ an offset rotor mounted on an adjustable support system, creating an asymmetric magnetic field profile that concentrates force at the discharge point. The eccentric design requires precision-engineered bearing assemblies capable of handling dynamic radial loads.
Concentric designs produce a uniform, symmetric field distributed around the drum circumference, with repulsion beginning as material approaches the pulley and continuing through discharge. Eccentric designs generate a highly focused, intense field localized primarily at the 2 o'clock to 4 o'clock position (discharge side), delivering a sharp, powerful ejection impulse precisely when material leaves the belt surface.
This is the most consequential difference for operational performance. Concentric separators deliver best results with particle sizes above 10 mm, where the broad magnetic field can fully interact with the larger conductive surface area. Below 5 mm, separation efficiency drops noticeably. Eccentric separators excel across a wider range, with exceptional performance on fine materials from 2 mm up to medium-sized pieces, making them the superior choice for mixed-size streams and fine fractions.
For clean, large-piece non-ferrous streams with minimal iron contamination, concentric separators can achieve slightly higher overall recovery rates due to their broader interaction zone. For complex streams with mixed sizes and some residual ferrous content, eccentric separators typically deliver higher product purity and better fine-particle capture. The adjustable pole angle in eccentric units allows operators to fine-tune the separation balance between recovery rate and purity according to market requirements.
Eccentric designs hold a significant advantage here. Because the peak magnetic field is concentrated at the discharge point rather than distributed around the full drum, ferrous particles that bypass upstream magnetic separation are less likely to adhere to the belt and drum surface. This reduces the risk of belt abrasion, heat buildup from trapped ferrous material, and potential equipment damage. For facilities with less rigorous pre-processing, eccentric ECS offers greater operational robustness.
Concentric separators generally carry a lower upfront purchase price and benefit from simpler, more durable bearing systems that require less frequent maintenance. Eccentric separators have higher initial capital expenditure and may require more frequent bearing inspection and lubrication due to the offset loading conditions. However, this must be weighed against the higher recovery value of fine non-ferrous metals that eccentric technology can capture – a factor that often delivers faster return on investment for many operations.
表格
Application | Recommended Design | Rationale |
|---|---|---|
Auto shredder residue (ASR) | Concentric (primary) / Eccentric (fine fraction) | Large aluminum and copper pieces benefit from concentric; fines require eccentric |
Electronic waste (e-scrap) | Eccentric | Small copper wires, component leads, and fine aluminum heat sinks |
Municipal solid waste (MSW) | Eccentric | Mixed particle sizes, variable composition |
Incineration bottom ash | Eccentric | Fine metal granules embedded in ash matrix |
Scrap aluminum processing | Concentric | Larger, uniform pieces with low ferrous content |
Construction & demolition waste | Concentric | Bulk aluminum extrusions, copper tubing |
Glass cullet purification | Eccentric | Fine aluminum caps and foil fragments |

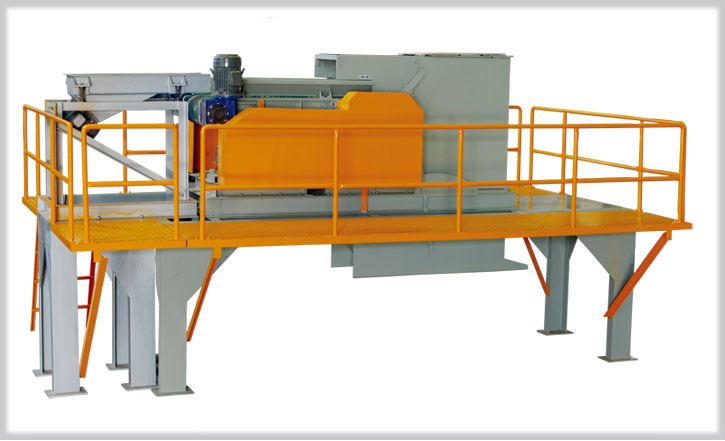

Drawing on this deep technical understanding, Alva Machinery Group offers both eccentric and concentric eddy current separator configurations, engineered with premium-grade neodymium-iron-boron (NdFeB) permanent magnets, precision-balanced rotors exceeding G2.5 dynamic balance standards, and heavy-duty bearing systems with automatic lubrication.
"Our approach is never to push one technology as universally superior," states Alva Machinery's sales director. "We work closely with each customer to analyze their specific feed material, particle size distribution, throughput targets, and purity requirements before recommending the optimal rotor configuration. In many cases, we design complete processing lines where concentric separators handle the coarse fraction and eccentric units polish the fine fraction for maximum total metal recovery."
All Alva ECS units feature:
High-intensity N52 rare earth magnetic rotors for maximum separation force
Variable frequency drive control for both rotor speed and belt speed, enabling in-process optimization
Abrasion-resistant conveyor belts with reinforced edge construction
Integrated control panels with real-time operational monitoring
Modular design for easy integration into existing recycling lines
Optional pre-magnetic separation drums for ferrous removal upstream
The company's ECS product line spans belt widths from 400 mm to 2,000 mm, with throughput capacities ranging from 1 m³/h for small-scale specialty operations up to 50 m³/h and beyond for industrial-grade recycling facilities. Custom configurations including multi-stage separation cascades, integrated screening decks, and pneumatic collection systems are also available.
For recycling operators evaluating eddy current separator investments, Alva Machinery Group recommends a systematic decision framework:
First, characterize your feed material. Conduct a sieve analysis to determine particle size distribution. If more than 30% of your non-ferrous fraction is below 10 mm, an eccentric design should be strongly considered. If the majority is above 20 mm with relatively uniform sizing, a concentric separator will likely deliver excellent performance at a lower cost point.
Second, assess ferrous contamination levels. If your upstream magnetic separation is less than ideal, or if your feedstock inherently contains significant iron content, the eccentric design's greater ferrous tolerance will translate to longer belt life, fewer maintenance stoppages, and lower long-term operating risk.
Third, evaluate product purity requirements. If your market demands premium-grade non-ferrous concentrate with minimal plastic or glass contamination, the adjustable ejection angle of an eccentric separator provides finer control over separation quality. For lower-grade applications where maximizing total recovery weight is the priority, a concentric design may be sufficient.
Finally, calculate total cost of ownership. Consider not just the purchase price, but also the value of additional metal recovered, maintenance frequency, belt replacement costs, and expected equipment lifespan. Alva Machinery's technical team provides free TCO analysis based on customer-specific operating parameters.
As recycling regulations tighten and the value of recovered non-ferrous metals continues to rise, eddy current separator technology will continue advancing. Alva Machinery Group's R&D team is currently developing next-generation ECS systems with enhanced magnetic circuit designs, intelligent automation features, and integrated sensor-based quality monitoring.
"Eddy current separation is a mature technology, but there is still significant room for optimization," concludes the chief engineer. "Whether through advanced rotor geometries, smarter control algorithms, or hybrid systems combining ECS with optical sorting, our goal is to help every Alva customer achieve the highest possible metal recovery at the lowest possible operating cost. Understanding the fundamental differences between eccentric and concentric designs is the first step toward that goal."
For recycling operators, material processors, and waste management professionals seeking to upgrade their non-ferrous recovery capabilities, Alva Machinery Group offers complimentary material testing at its technical center, where sample materials can be processed on both eccentric and concentric ECS units to generate direct, side-by-side performance data.
About Alva Machinery Group

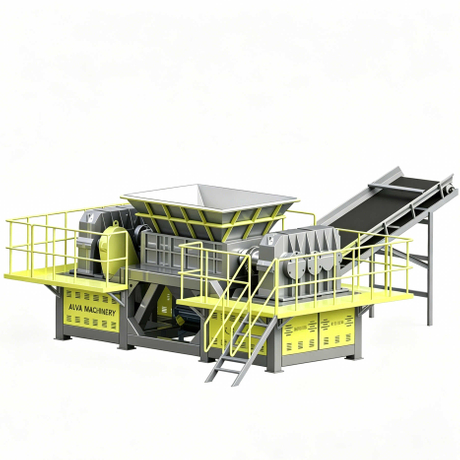

Alva Machinery Group is a global leader in the design and manufacture of comprehensive recycling equipment, offering a full product range including dual-shaft shredders, vertical crushers, pulverizers, eddy current separators, magnetic separators, color sorters, metal balers, gantry shears, and turnkey waste processing lines for metal, plastic, tire, e-waste, and municipal solid waste applications. With a commitment to engineering excellence, durable construction, and customer-centric service, Alva Machinery delivers reliable recycling solutions to partners across more than 50 countries worldwide.
