Alva Machinery Broken Bridge Aluminum Recycling Line is a specialized fully automatic turnkey solution designed for high-value recycling of thermal break aluminum profiles. Our advanced physical separation technology can efficiently separate aluminum alloy frames from PA66 nylon insulation strips without damaging the aluminum material, producing high-purity aluminum scrap and clean plastic products. The processing capacity ranges from 1 ton/hour to 10 tons/hour, suitable for aluminum profile factories, construction waste recycling centers and scrap metal processing facilities.
Economic Benefit: This line can increase the value of scrap broken bridge aluminum by 30-50% compared to direct sale as mixed scrap, with a typical return on investment within 6-9 months.

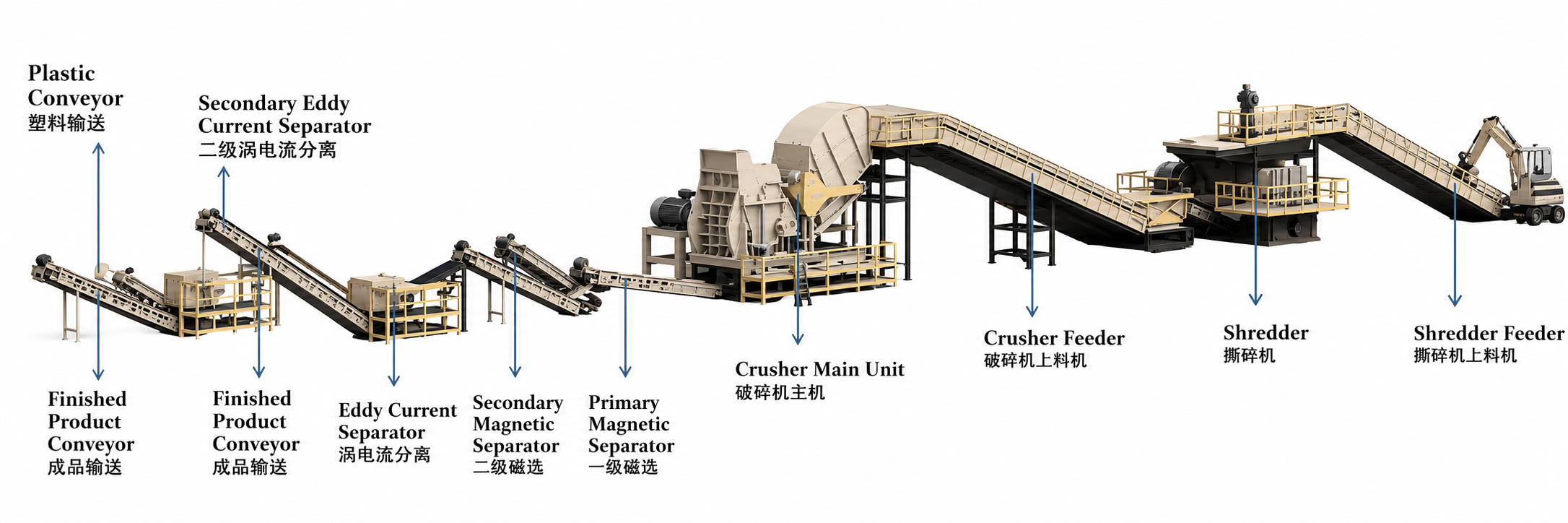

1. Raw Material Feeding → Broken bridge aluminum profiles and scraps

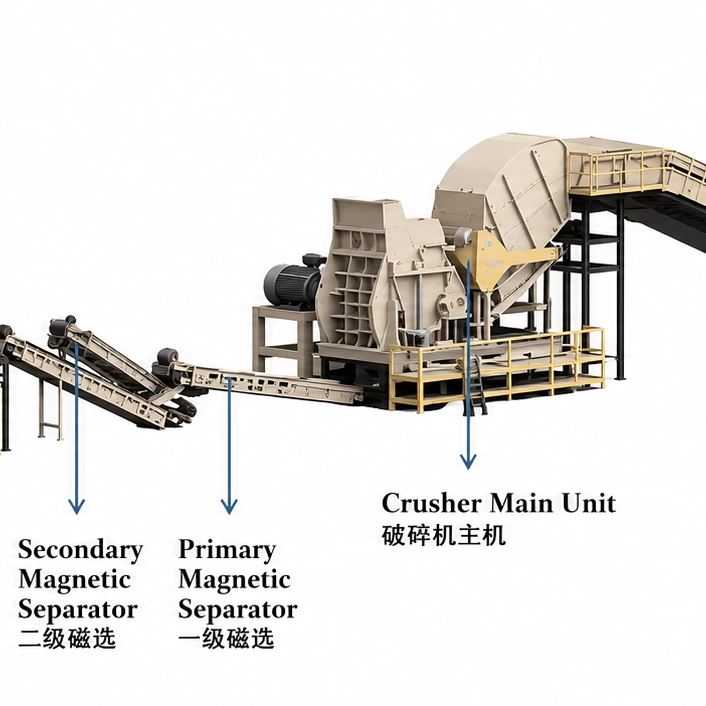

2. Primary Shredding → Double Shaft Shredder shreds into 50-80mm pieces
3. Secondary Fine Crushing → Heavy Duty Horizontal Crusher crushes into 10-20mm particles
4. Magnetic Separation → Removes iron nails, screws and other ferrous impurities

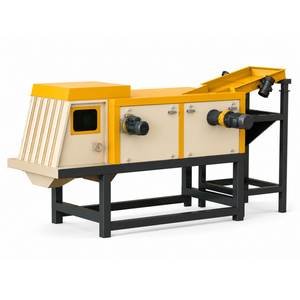

5. Eddy Current Separation → Preliminary separation of aluminum and plastic
6. Electrostatic Separation → Further purification, removes fine plastic residues

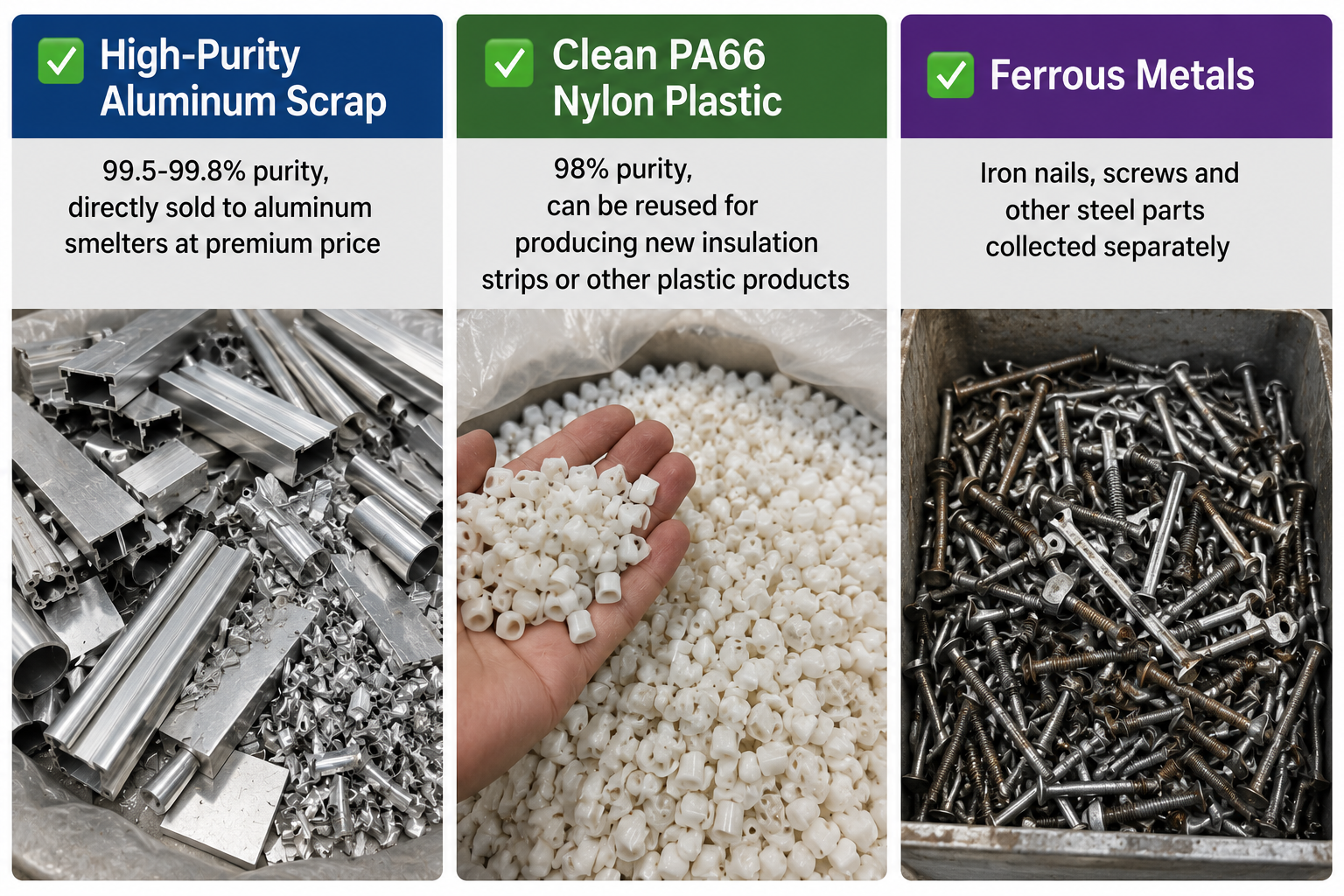

7. Finished Product Collection → Pure aluminum and pure PA66 nylon collected separately
8. Dust Collection System → Purifies exhaust gas and collects dust
Industry-Leading Separation Accuracy
99%+ aluminum-plastic separation rate
Pure aluminum purity up to 99.8%, no plastic residue
PA66 nylon purity up to 98%, can be directly reused
No metal loss during the entire separation process
Low-Temperature Crushing Technology
Special low-speed high-torque crushing system
Controls material temperature below 60°C during crushing
Does not change the physical properties of aluminum
Ensures the highest market value of recycled aluminum
Fully Automatic Integrated Process
PLC automatic control system with touch screen operation
One-button start, continuous uninterrupted production
Only 2-3 operators required for the entire line
Real-time monitoring and automatic fault alarm
Environmentally Friendly Design
Fully enclosed negative pressure dust collection system
No dust leakage, meets international environmental standards
Low noise operation (<85dB)
No chemical additives, pure physical separation
✅ 20+ years of experience in manufacturing solid waste recycling equipment
✅ CE and ISO certified products, exported to more than 80 countries
✅ Professional technical team provides customized solutions
✅ 12-month warranty period and lifelong after-sales service
✅ Fast delivery time: 15-30 days for standard models
✅ Overseas installation and commissioning service available
