Against the backdrop of the rapid development of the global recycled plastic circular economy, waste plastic recycling and processing has formed a global layout. All countries have established strict unified industrial standards for recycled material quality, production automation, workshop environmental emissions and equipment safety specifications. As the core complete equipment for the resource recycling of waste plastics, the plastic sorting, crushing and milling line realizes the full-process automated processing of bulk waste plastics from feeding, crushing, sorting and buffer storage to subsequent fine grinding and environmental dust control through multi-equipment collaborative operation.

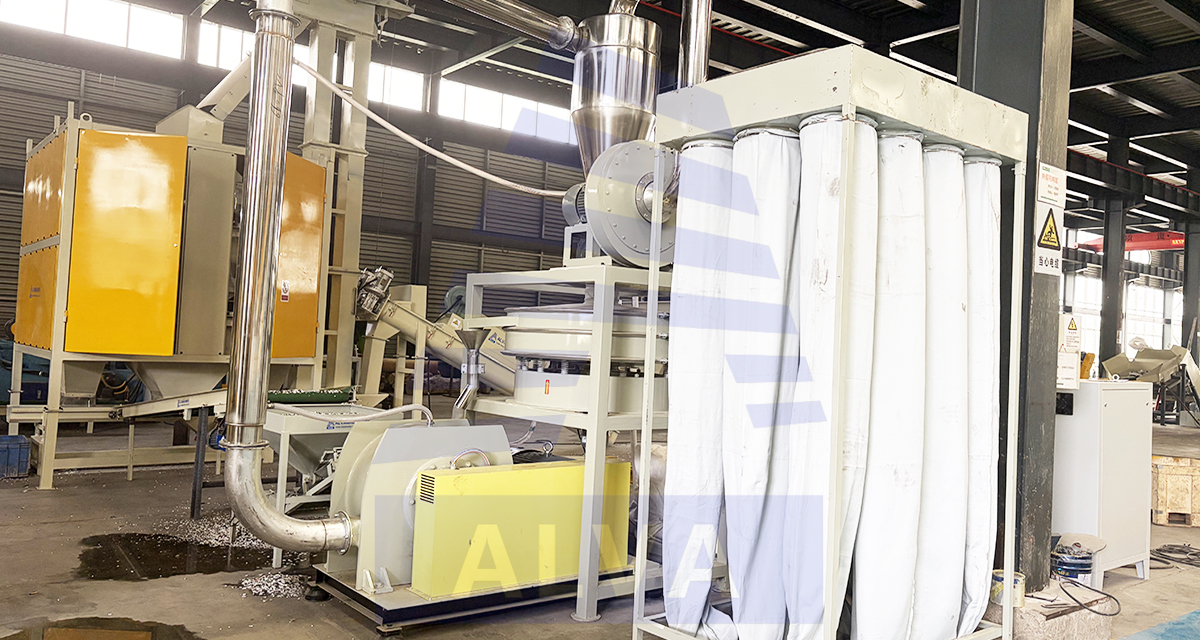

As the terminal core combined units of the entire plastic sorting, crushing and milling line, the grinding system and baghouse dust collector do not operate independently as standalone machines. Instead, they are deeply embedded in the process logic of the complete production line. Together with the front-end tipper feeding system, plastic crusher, air separator, silicone rubber sorting equipment and material buffer silo, they form a complete process chain. In terms of structural design, operation logic, safety configuration, environmental protection indicators, electrical standards and installation interfaces, the entire unit is developed and manufactured in accordance with international general industrial standards. It meets the application requirements of plastic recycling processing plants, recycled pelletizing enterprises and industrial scrap processing bases in many countries around the world, satisfies various foreign trade scenarios such as overseas export, cross-border project supporting and international production line general contracting, and serves as essential terminal equipment standardized for the global market.
The plastic sorting, crushing and milling line adopts a segmented progressive processing logic. The discharging parameters, material form and conveying rhythm of each equipment strictly match the feeding conditions of the next equipment, forming a closed-loop continuous production. As the final process unit of the entire line, the grinding system and baghouse dust collector undertake four core functions: finished product forming, particle size shaping, dust collection and environmental compliance emission. They maintain strongly connected, highly adapted and interlocked process relations with all front-end equipment.
The front-end tipper feeding system realizes automatic feeding of the entire line, replacing manual feeding, and smoothly sends various bulk waste plastics, plastic profiles, pipe scraps and packaging waste into the crusher inlet. The plastic crusher completes volume reduction and crushing of large materials, processing irregular large pieces into uniformly sized plastic fragments to provide qualified material form for subsequent sorting procedures. The air separator adopts airflow and gravity principles to remove light impurities such as paper scraps, foam, film and floating dust mixed in crushed materials, improving material cleanliness from the source. The silicone rubber sorting equipment further separates difficult-to-sort impurities such as silicone and rubber particles mixed in plastic fragments, ensuring high purity of materials entering the rear process. The material buffer silo undertakes process buffering and material homogenization, balancing the processing time difference between front-end sorting and rear-end grinding, and avoiding frequent start-stop and load fluctuation of equipment caused by unstable material supply.
The high-purity plastic fragments processed by the previous five procedures are fed into the grinding system at a uniform, stable and quantitative rate. The grinding system is responsible for further processing standard fragments into recycled plastic pellets with uniform particle size and consistent fluidity, which are directly applicable to downstream industrial applications such as overseas pelletizing, injection molding, modification and extrusion. The supporting baghouse dust collector connects all dust-generating points of the grinding process throughout the whole process, centrally collecting, filtering, purifying and recycling fine plastic dust generated during processing, ensuring a clean workshop environment and compliant exhaust emissions.
From the perspective of the full-process process logic, without the grinding system, the entire production line can only stay at the semi-finished fragment stage and cannot produce standardized granular raw materials available for commercial use. Without the baghouse dust collector, dust generated in the grinding process will cause workshop environmental pollution, material loss and equipment wear, and fail to meet environmental supervision requirements of various countries. Combined as terminal units, the two sets of equipment serve not only as the closing link for finished product output of the entire production line, but also as the guarantee link for international environmental compliance, with an irreplaceable process position.
The grinding system is mainly composed of frame main body, sealed feeding mechanism, grinding chamber, alloy cutter assembly, wind classification structure, variable frequency drive system, electric control module and discharging conveying mechanism. The whole equipment adopts industrial modular layout. The fuselage is integrally welded with thickened carbon steel, featuring strong structural rigidity, small operation vibration and no deformation after long-term continuous operation, suitable for non-stop production mode of overseas factories all year round.
After materials enter the grinding chamber uniformly from the buffer silo, they are subjected to shearing, impact and friction by high-speed rotating cutters and processed into fine particles. The built-in wind classification structure conducts real-time screening of materials. Particles reaching the set particle size standard are automatically discharged into finished product conveying, while unqualified coarse materials automatically return to the grinding chamber for regrinding until meeting specification requirements. The whole process operates in fully sealed negative pressure without material overflow and particle size deviation, ensuring stable and consistent uniformity of finished pellets.
The core functions of the grinding system focus on controllable particle size, material adaptability, continuous operation and stable discharging. The equipment can adjust operating speed, classifier ratio and air volume according to different plastic materials and downstream application demands, precisely controlling finished pellet particle size and meeting the general particle size standards of recycled plastics in the international market.
It is compatible with different types of waste plastics such as PE, PP, PET, ABS and engineering plastics. The cutter material, chamber structure and cooling air duct can be adapted to avoid common problems such as adhesion of soft plastics and over-grinding of hard plastics. The finished pellets have regular shape and low impurity content, complying with the procurement standards of recycled plastic raw materials in Europe, America, Southeast Asia, the Middle East, Africa and other global regions, and can directly enter the cross-border trade circulation channel.
Meanwhile, the operating load, feeding interface height and conveying matching speed of the grinding system are designed according to unified parameters of the complete production line. It can be directly connected with front-end silo, rear-end finished product conveying and baling equipment without secondary on-site modification, meeting the demands of rapid installation and quick commissioning of overseas projects.
To adapt to industrial application specifications of many countries worldwide, the grinding system is designed to benchmark international general standards at the initial stage. Electrical components adopt internationally renowned brand accessories. Voltage and frequency support customized systems of multiple countries to adapt to industrial power supply conditions in different regions. The overall equipment protection level, motor insulation level and safety interlock structure comply with international machinery safety specifications. The fuselage layout is concise and regular, with reserved standardized access openings and maintenance space, adapting to daily maintenance habits of overseas factories.
The operating noise and energy consumption control of the equipment are designed with reference to international industrial energy-saving standards. It features durable structure, low failure rate and high generalization degree of wearing parts, facilitating overseas customers' subsequent spare parts procurement and long-term operation and maintenance, and meeting the core requirements of foreign trade equipment for durability, universality and compatibility.
The baghouse dust collector consists of dust box, filter bag assembly, pulse jet cleaning system, centrifugal fan, ash hopper, discharging and ash removal mechanism, differential pressure monitoring module and automatic control system. It adopts negative pressure dust collection principle and is hermetically connected with all dust-generating points of the grinding system through sealed pipelines to form an integrated negative pressure dust removal system.
Dust-laden airflow generated by grinding is sucked into the dust box under negative pressure. Large-particle dust naturally settles into the ash hopper, while fine dust is blocked outside the filter bags. Clean air passes through the filter bags and is discharged into the atmosphere. With dust accumulation on the filter bag surface, the equipment monitors resistance changes in real time through differential pressure sensors and automatically starts the pulse cleaning procedure. Instant compressed air jet vibrates and removes dust, which falls into the ash hopper and is discharged centrally on a regular basis. The collected plastic dust can be recycled and mixed with main materials for reprocessing, reducing raw material loss and improving overall yield rate.
In the complete plastic sorting, crushing and milling line, the baghouse dust collector undertakes three irreplaceable functions: first, centrally collecting grinding dust to eliminate workshop dust diffusion, improve working environment and protect operator health; second, adopting sealed negative pressure dust collection to reduce loss of fine material powder and improve overall material recovery rate; third, filtering and purifying exhaust gas to stabilize emission air quality within standards and meet environmental access requirements of various countries.
Without the supporting baghouse dust collector for the grinding process, there will be problems such as dust pollution, raw material waste and equipment dust accumulation and wear. Moreover, it cannot pass environmental acceptance and safety production audit of overseas factories, directly affecting project commissioning and compliant operation.
The global market currently has strict requirements on industrial dust emission, workshop closed-loop management and exhaust gas purification indicators. Europe, America, Southeast Asia, Latin America and other regions all implement unified industrial atmospheric pollutant emission standards. This baghouse dust collector maintains stable filtration efficiency, with dust emission concentration controlled within international limit values. The filter bags are made of special anti-static, high-temperature resistant and wear-resistant filter materials, adapting to the filtration characteristics of fine plastic dust, not easy to damage and aging in long-term operation, and maintaining stable dust removal effect.
The whole equipment adopts fully closed structure with no dust leakage design, meeting international clean production requirements for workshops. Automatic pulse cleaning requires no frequent manual operation, adapting to the overseas production mode of high labor cost and high automation demand. The operating noise and vibration control of the equipment follow international industrial equipment design criteria, allowing compliant settlement in various overseas industrial parks and renewable resource industrial parks.
Both the grinding system and baghouse dust collector adopt standardized modular frame design, featuring compact overall layout, convenient disassembly, transportation and hoisting. They are suitable for container shipping packaging and meet the full logistics conditions of foreign trade equipment export packaging, ocean transportation and port hoisting. The inlet and outlet interfaces, flange dimensions and pipeline arrangement all adopt international general standard specifications, compatible with front and rear equipment of different brands and specifications. It adapts to two scenarios: renovation of old overseas production lines and supporting of new complete production lines.
The electric control system of the complete terminal unit is compatible and interconnected with the centralized control system of the entire plastic sorting, crushing and milling line, realizing one-key start-stop of the whole line, speed linkage adjustment, fault interlock shutdown and real-time operation data monitoring. The control logic is compiled in accordance with international industrial automation design ideas with concise and intuitive operation interface, supporting multi-language customization to adapt to operating habits of operators in different countries.
The system has multiple safety logics such as overload protection, material shortage protection, blockage alarm, filter bag blockage early warning and fan fault self-checking, complying with international mechanical equipment safety design requirements and reducing risks of misoperation and equipment failure.
For project demands of overseas customers, the grinding system and baghouse dust collector can be exported as complete sets with the entire sorting, crushing and milling line, or supplied as standard terminal units for independent foreign trade. Before delivery, the equipment completes overall commissioning, no-load test run and load simulation operation, equipped with full English technical documents, installation drawings, operation manuals, maintenance instructions and spare parts lists, meeting the whole-process requirements of international project document review, customs clearance, on-site installation guidance and after-sales technical service.
The equipment adopts export-specific solid wood fumigation packaging, complying with international marine packaging quarantine standards, with moisture-proof, shockproof and anti-collision performance to ensure no deformation or damage in long-distance transportation.
Supported by deep process matching with the entire plastic sorting, crushing and milling line, as well as comprehensive advantages of complying with international mechanical safety standards, international environmental emission standards, international general electrical specifications and foreign trade export shipping norms, the combined terminal units of grinding system and baghouse dust collector are widely adapted to various global application scenarios.
It serves professional waste plastic recycling processing plants, recycled plastic pelletizing bases, home appliance shell crushing and recycling enterprises, profile factory scrap processing projects and cross-border recycled raw material production bases in various countries. The produced standardized recycled plastic pellets feature stable quality, uniform particle size and controllable impurities, complying with international recycled plastic trading grade standards and directly participating in global renewable resource trade circulation.
At the industrial level, the terminal unit improves the process closed loop of the entire production line, enabling domestic complete plastic recycling equipment to have export competitiveness of full-process standardization, full-link compliance and full-line automation. It not only meets domestic standardized production requirements, but also fully adapts to the core demands of the international market for environmental protection, safety, automation, low labor and easy operation and maintenance, helping the complete plastic sorting, crushing and milling line be exported in batches to Southeast Asia, Central Asia, the Middle East, Africa, Latin America and other regions worldwide.
The grinding system and baghouse dust collector are not independent standalone equipment, but the core terminal combination in the process chain of the plastic sorting, crushing and milling line. The front end forms a complete pretreatment system through tipper feeding, crushing, air sorting, silicone rubber sorting and buffer silo. The rear end relies on the grinding system to complete finished pellet shaping and the baghouse dust collector to achieve environmentally compliant emissions. The front and rear procedures are logically connected, parameter-matched, interface-unified and linked in operation.
From structural design, electrical configuration, safety protection and environmental indicators to packaging logistics, technical documents and operation and maintenance standards, the entire unit strictly follows international general industrial specifications and foreign trade export requirements, adapting to power supply systems, environmental regulations, work safety regulations and factory automated production modes in many countries worldwide. It not only guarantees stable finished product quality and complete process closed loop of the entire production line, but also possesses strong international market adaptability and cross-border project supporting capacity, serving as the standard configuration and core supporting unit for domestic complete plastic recycling equipment entering the global market.
