You might wonder how recycling centers quickly sort metals from piles of trash. An eddy current separator helps you do this job. Picture a magician waving a wand to pull coins out of thin air. This machine uses powerful forces to push non-magnetic metals, like aluminum, away from other materials. You get cleaner recycling streams and less waste in landfills.
Eddy current separators efficiently sort non-ferrous metals from mixed waste, improving recycling rates and reducing landfill waste.
The technology relies on a rotating magnetic field that creates eddy currents, pushing metals like aluminum away from other materials.
Regular maintenance of the separator, including the conveyor belt and control unit, ensures optimal performance and extends the machine's lifespan.
Eddy current separators can recover up to 98% of non-ferrous metals, making them a valuable tool in recycling and waste management.
Combining eddy current separators with other sorting technologies enhances recovery rates and improves overall recycling efficiency.
You see an eddy current separator in many recycling centers. This machine helps you sort non-ferrous metals from piles of mixed waste. It uses a moving magnetic field to create a force that pushes metals like aluminum away from other materials. The separator relies on a rotating magnet system. When nonferrous metals pass through the magnetic field, they react and move in a different direction. You get a clean stream of metals ready for recycling. This process makes the eddy current separator a key part of magnetic separation equipment.
Tip: If you want to recover valuable metals from waste, an eddy current separator gives you a fast and efficient solution.
You use an eddy current separator to improve recycling rates and reduce landfill waste. The main function is to separate non-ferrous metals from plastics, glass, and other materials. By doing this, you help conserve natural resources and lower energy use. You also cut down on greenhouse gas emissions. Recycling plants in Europe, Latin America, and the Middle East rely on this technology to meet strict environmental rules. The separator works with a conveyor belt and a magnetic drum. The drum spins quickly under the belt, making the separation process smooth and reliable.
Europe uses eddy current separators because of strong recycling laws and green policies.
Latin America, including Brazil and Colombia, has stricter waste management rules, so you see more separators in action.
The Middle East and Africa focus on sustainable waste management, which increases the use of eddy current separation.
You notice that recycling companies in China also use this technology for waste electrical and electronic equipment. Over the past decade, the global market for eddy current separators has grown. You see more advanced machines that use magnetic induction for better precision and efficiency. These improvements help you recover more non-ferrous metals and reduce environmental impact.
Description | Details |
|---|---|
Technology | Eddy Current Separator (ECS) |
Function | Separates non-ferrous metals from plastics in cables |
Components | Conveyor belt system and magnetic drum |
Operation | High-speed rotation of the drum beneath the conveyor belt to facilitate separation |
You find that eddy current separators are now a standard part of recycling plants. They help you sort metals quickly and keep valuable materials out of landfills.
You find the magnetic rotor at the heart of every eddy current separator. This part spins quickly and creates the changing magnetic field needed for separation. The rotor contains several permanent rare earth magnets. These magnets sit on a support plate, which connects to a motor-driven shaft. A fiberglass shell with ceramic tiles covers the magnets to protect them from wear. The rotor spins much faster than the conveyor belt and the outer shell. This high speed helps generate strong eddy currents in metals as they pass by.
Permanent rare earth magnets mounted on a support plate
Plate attached to a motor-driven shaft
Magnets covered by a fiberglass shell with ceramic tiles
Rotor spins independently at high speed inside a wear shell
You notice that the speed of the magnetic rotor matters. Tests show that there is an optimal speed, usually around 3000 RPM. If you increase the speed beyond this point, you do not get better separation. The efficiency stays the same, so you want to keep the rotor at its best speed for effective separation.
You see electromagnetic induction in action when the magnetic rotor spins. The spinning magnets create an alternating magnetic field. When a conductive material, like aluminum or copper, moves through this field, it reacts. The changing magnetic field causes electrical currents to form inside the metal. These currents are called eddy currents.
Eddy currents make their own magnetic field. This new field pushes against the original field from the rotor. You get a repulsive force that acts only on the metal. This force throws the metal away from the rest of the waste stream. The principle of electromagnetic induction makes the eddy current separator so powerful for sorting metals.
Note: The alternating magnetic field and the eddy currents work together to separate metals from other materials. You get a clean stream of non-ferrous metals ready for recycling.

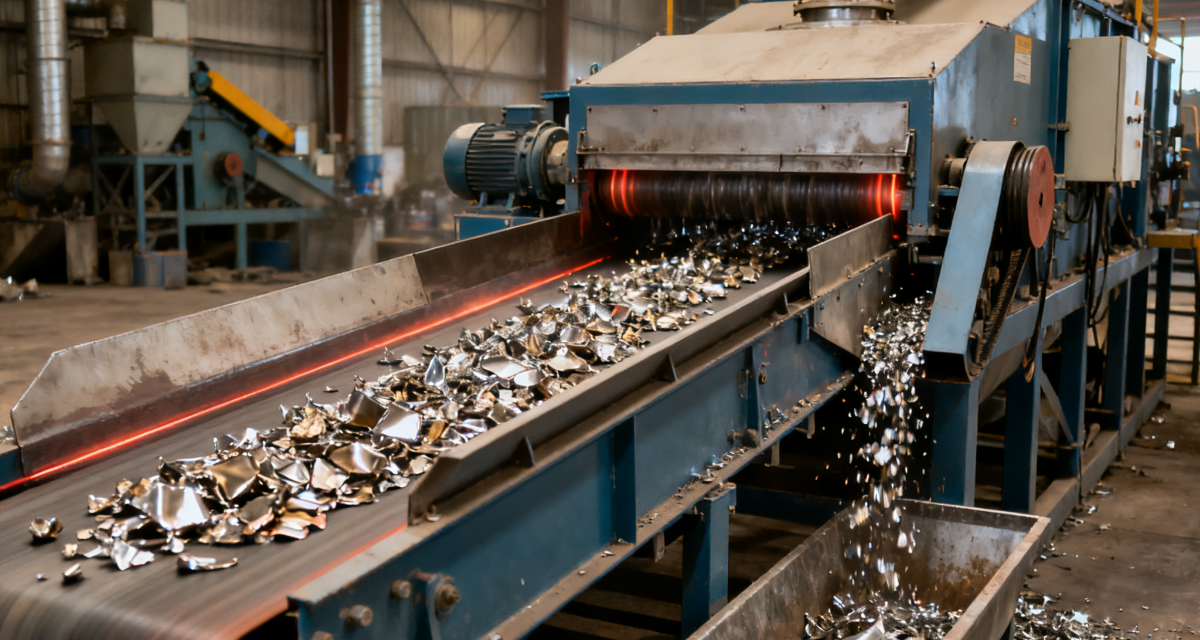

You watch the separation process begin when mixed waste travels on a conveyor belt toward the eddy current separator. The belt carries everything over the spinning magnetic rotor. As the waste passes over the rotor, the alternating magnetic field interacts with any conductive material in the stream.
Here is how the process works step by step:
The conveyor belt brings mixed waste, including metals, plastics, and glass, over the magnetic rotor.
Strongly conducting metals, like aluminum, enter the alternating magnetic field first. Eddy currents form inside these metals.
The eddy currents create a magnetic field that pushes against the rotor’s field. This force ejects the metal from the waste stream.
The metals fly off into a separate bin, while other materials fall off the belt due to gravity.
Poorly conducting or undecided particles separate at the lower part of the drum, ensuring you get the cleanest possible metal stream.
You find that eddy current separators work best for non-ferrous metals. The separation efficiency rate for these metals is over 98%. For aluminum, you can recover about 85% using this method. This makes the eddy current separator one of the most effective tools for recycling and waste management.
Powerful magnetic field separates non-ferrous metals from waste
Conveyor belt carries mixed waste over the rotor
Metals are collected in a product bin for recycling
Other materials fall off the belt and go to landfill or further sorting
You get effective separation of metals from other materials. This process helps you recover valuable resources and keeps more waste out of landfills.
You see the conveyor belt as the starting point for the eddy current separator. This belt moves mixed materials smoothly toward the separation area. It keeps everything organized and helps you sort items quickly. The belt operates at a steady speed, usually around 250 feet per minute, which gives you reliable results.
The conveyor belt guides materials into the magnetic field for sorting.
It handles non-ferrous metals efficiently and reduces the risk of damage to the separator.
You can remove ferrous materials before they reach the separator, which protects the rotor and extends the machine’s lifespan.
Tip: Regular maintenance of the conveyor belt helps your separator last longer—many machines work well for 7 to 10 years with proper care.
The magnet system sits at the core of the separation process. You find a series of strong magnets arranged inside the rotor. These magnets create a powerful magnetic field that interacts with any conductive metal passing by. The design of the sleeve around the magnets matters. A thinner sleeve brings the magnets closer to the material, which increases the magnetic field strength and boosts separation efficiency. If the sleeve is too thick, the field weakens, and you get less effective sorting.
Sleeve Thickness | Magnetic Field Strength | Eddy Current Force | Separation Efficiency |
|---|---|---|---|
Thicker Sleeve | Decreases | Decreases | Reduces |
Thinner Sleeve | Increases | Increases | Enhances |
You get the best results when the magnets are close to the surface, making it easier to separate valuable metals from waste.
The control unit acts as the brain of the separator. You use it to monitor and adjust the system for different types of materials. Sensors collect data about the feed, and the control unit uses this information to optimize sorting. Automation features help you run the separator with less manual work, making the process faster and more accurate. Data-driven controls also improve sorting accuracy and energy efficiency.
Function of Control Unit | Description |
|---|---|
Sensor Integration | Uses sensor data to adjust recovery strategies. |
Automation | Reduces manual work and boosts efficiency. |
Data-Driven Optimization | Improves sorting accuracy and system performance. |
Note: A well-maintained control unit ensures your separator adapts to changing materials and keeps your recycling process running smoothly.
You often find non-ferrous metals in many types of waste. These metals do not contain iron, so they do not stick to magnets. Eddy current separators help you recover these valuable materials from mixed waste streams. When you use this technology, you can separate different types of conductive material from plastics, glass, and paper.
The most commonly separated non-ferrous metals include:
Copper wire
Aluminium
Zinc
You see these metals in products like beverage cans, electrical wiring, and car parts. Eddy current separators use a high-speed magnetic field to push these metals away from non-metallic materials. This process helps you achieve high purity in the recovered metal stream. In many municipal recycling plants, you can recover 80-90% of nonferrous metals using this method. Some systems even reach recovery rates as high as 99.9% for fine metallic particles.
Note: Eddy current separation works best when you feed the machine with shredded or crushed waste. This step increases the contact between the magnetic field and each piece of metal.
You can use eddy current separators in many industries. These machines help you recover non-ferrous metals from different types of waste. The table below shows some of the most frequent applications:
Application | Description |
|---|---|
Construction and Demolition Waste | Extracts non-ferrous metals from debris, helping you recover resources and reduce landfill waste. |
Aluminum Can Recycling | Recovers aluminum cans from mixed waste, boosting recycling rates and saving raw materials. |
Glass Recycling | Removes metals from glass cullets, so you get cleaner recycled glass. |
Mining Operations | Sorts and redesigns metal materials, improving efficiency in mining. |
Plastics Recycling | Takes out non-ferrous impurities from plastic waste, ensuring high-quality recycled plastics. |
You find eddy current separators in recycling centers, waste processing plants, and even mining sites. These machines help you keep valuable resources in use and reduce the amount of waste sent to landfills.
You gain many benefits when you use an Eddy Current Separator in your recycling facility. This machine gives you effective separation of non-ferrous metals from mixed waste. You improve the purity of your recovered materials and boost your recycling rates. The table below shows the main advantages:
Advantage | Description |
|---|---|
High Efficiency | ECS effectively separates non-ferrous metals from mixed waste streams, improving material purity. |
Versatility | Can handle various waste streams, including MSW, construction debris, and electronic waste. |
Economic Benefits | Recovers valuable metals, reducing the need for virgin materials and lowering production costs. |
Intelligence | Features an intelligent control system for real-time monitoring and management. |
Low Operational Costs | Robust design leads to minimal maintenance and long service life, resulting in lower costs. |
You see that the Eddy Current Separator works with many types of waste, including municipal solid waste and electronic scrap. You recover valuable metal and reduce the need for new resources. A case study at Lakeside Auto shows that installing an Eddy Current Separator led to a quick return on investment. You increase profits by recovering materials that would otherwise be lost. This technology helps you run a cost-effective recycling operation.
Tip: You can use the intelligent control system to monitor performance and adjust settings for different waste streams.
You should know that the Eddy Current Separator does not work for every material. This machine sorts non-ferrous metals, such as copper and aluminum, but struggles with ferrous metals like iron. Non-metallic items, including plastics or wood, do not respond to the magnetic field. You cannot separate these materials using this method. The separator only acts on conductive material, so you need other equipment to handle ferrous and non-metallic waste.
You may notice that some small or thin pieces of metal escape the separation process. You get the best results when you feed the separator with shredded or crushed waste. You must also maintain the machine to keep it running smoothly. Regular checks help you avoid breakdowns and keep your recycling line efficient.
Note: You should combine the Eddy Current Separator with other sorting technologies to achieve the highest recovery rates.
You now understand how an Eddy Current Separator uses induced eddy currents to sort metals from waste. Key points include:
Eddy Current Separator performance depends on material properties and machine speed.
You can recover up to 98% of aluminum cans and efficiently separate metals from shredder residue.
The process does not create wastewater or air pollution.
Benefit | Description |
|---|---|
Environmental Impact | Offers a cleaner, eco-friendly way to recover non-ferrous metals. |
By using an Eddy Current Separator, you help protect the environment and make recycling more effective. ��
You can use an Eddy Current Separator to sort non-ferrous metals like aluminum, copper, and brass. These metals do not stick to magnets. You cannot separate ferrous metals or non-metallic items with this machine.
An Eddy Current Separator helps you recover valuable metals from mixed waste. You increase recycling rates and reduce landfill waste. This machine gives you cleaner material streams for reuse.
Yes, you get better results when you shred or crush waste first. Smaller pieces allow the Eddy Current Separator to push metals away more effectively. This step improves separation efficiency.
You can use an Eddy Current Separator to recover non-ferrous metals from electronic waste. This process helps you recycle valuable materials from old electronics and reduces environmental harm.
Regularly check the conveyor belt and magnet system. Clean the machine and inspect the control unit for errors. Proper maintenance keeps your Eddy Current Separator running smoothly and extends its lifespan.
