In the global waste plastic recycling industry, the cleanliness of recycled raw materials is the basic condition that determines market access, compliant production and cross-border trade value. After crushing and volume reduction of waste plastics from household appliances, automobile dismantling, daily packaging and industrial scraps, a large number of paper scraps, foam fragments, plastic film, floating dust, fiber and other light impurities will be mixed in the materials.
Such impurities are light in weight, large in volume and highly adhesive. If they cannot be completely removed in the preliminary process, they will continuously interfere with subsequent procedures such as silicone sorting, material buffering and fine grinding. This will lead to reduced sorting accuracy in the middle section, excessive impurities in finished plastic pellets, accelerated equipment wear and restricted production line capacity.
As the core pre-impurity removal unit of the plastic sorting, crushing and milling line, the air sorting machine is embedded into the complete process chain rather than operating independently. Installed at the rear of the plastic crusher and the front of the silicone sorting equipment, it receives mixed plastic fragments after crushing and specially removes light debris and suspended dust by mature aerodynamic physical separation principles.
Its structural design, electrical configuration, automatic logic and environmental protection standards are all benchmarked against international industrial specifications. It meets the production requirements of recycling factories in many countries worldwide and has become an essential standard pre-equipment for modern, standardized and export-oriented plastic recycling production lines.
The plastic sorting, crushing and milling line adopts a closed-loop production logic of step-by-step purification and progressive processing. Each process has clear division of labor, interconnected parameters and linkage operation. The processing effect of each previous procedure directly affects the operational stability and finished product quality of the subsequent procedures.
The complete process flow is as follows:
Tipper Feeding System → Plastic Crusher → Air Sorting Machine → Silicone Sorting Equipment → Material Buffer Hopper → Grinding System → Baghouse Dust Collector
The air sorting machine undertakes the first fine impurity removal of the whole line and serves as the first checkpoint for material purification.

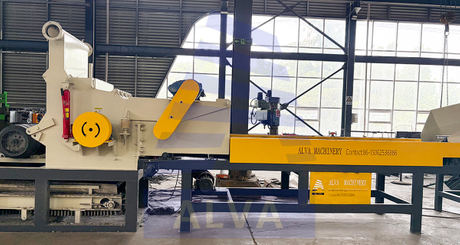

In terms of upstream connection, the plastic crusher completes shear crushing and volume reduction of large waste plastics, turning irregular bulk materials into uniformly sized plastic fragments. However, crushing cannot separate paper, foam, film and dust impurities mixed inside or attached to the materials. At this stage, the materials are in a mixed state and not suitable to directly enter the high-precision silicone sorting process.
The air sorting machine receives discharged materials from the crusher and performs unified light impurity removal on the mixed fragments. It removes large-area light floating impurities, reduces material mixing rate, and lowers the processing load for downstream high-precision sorting equipment.
In terms of downstream support, the performance of the air sorting machine directly affects the stability of silicone sorting equipment and grinding systems. Silicone sorting machines rely on friction and bounce differences to separate rubber and silicone impurities. If the material surface is covered with a large amount of paper dust, floating dust and film fragments, the surface friction characteristics will be changed, resulting in reduced sorting accuracy and excessive silicone residue.
Meanwhile, a large amount of light impurities entering the grinding system will be mixed into finished pellets, causing messy appearance and excessive impurities, failing to meet recycled plastic acceptance standards in Europe, Southeast Asia, the Middle East and other international markets.
Materials purified by the air sorting machine have greatly improved basic cleanliness and stable uniform state. They ensure the accuracy of downstream silicone sorting and the consistency of finished grinding products, enabling the whole production line to meet international trade standards.
From the perspective of overall process logic, the air sorting machine is the key transition equipment distinguishing “crude crushed materials” and “refined materials ready for sorting”. Without this unit, the production line can only achieve simple crushing, unable to form a closed-loop multi-stage purification. The upper limit of material cleanliness remains low with high defective rate, lacking the capacity for international standardized production and export delivery.
The air sorting machine adopts a dry physical wind separation principle. Based on aerodynamics, it utilizes the differences in specific gravity, suspension speed and wind resistance of different materials to achieve impurity separation.
Plastic fragments feature high density, heavy weight and stable wind resistance, maintaining stable sedimentation under controlled airflow. Paper scraps, foam, film and floating dust have low density and large wind-bearing area, and are easily carried away by airflow. By precisely adjusting wind pressure, wind speed and airflow direction, the equipment realizes automatic separation of main plastic materials and light impurities.
The whole process requires no water resources or chemical additives, producing no secondary pollution, and conforming to the global trend of green production and environmental compliance.

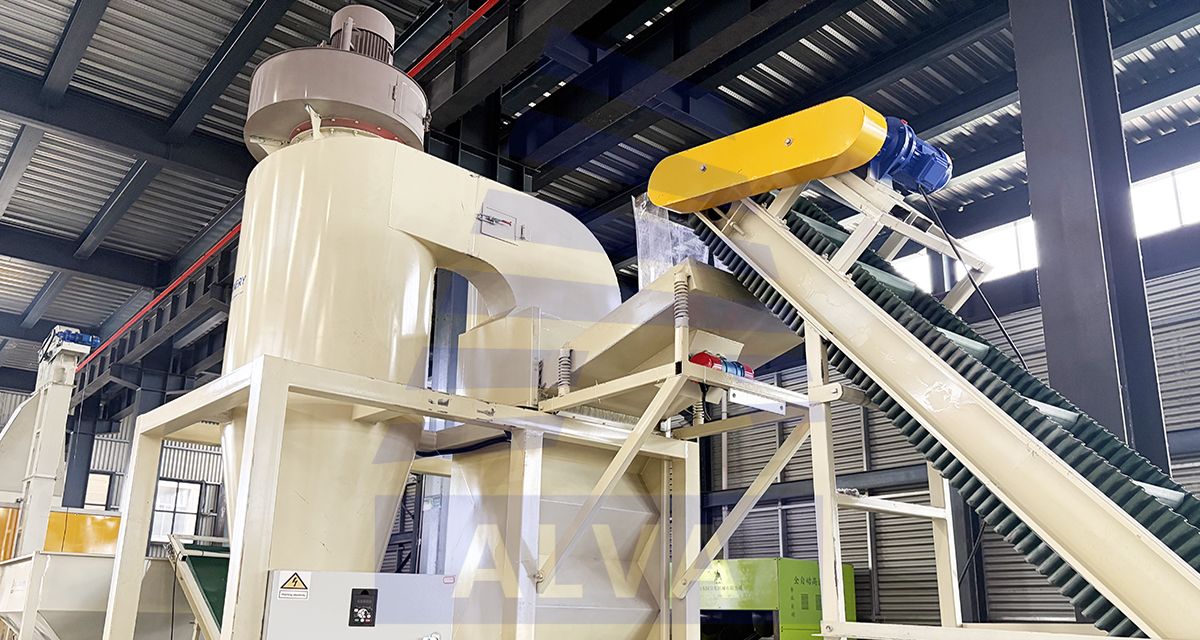

The machine adopts an industrial modular integrated welded structure with thickened carbon steel frame, featuring high structural rigidity, low operation vibration and excellent wear resistance. It is suitable for 24-hour non-stop continuous mass production in overseas factories.
Main components include constant-speed feeding mechanism, sealed sorting chamber, variable-frequency wind pressure control system, cyclone separation structure, light impurity discharge outlet, pure material discharge outlet, differential pressure monitoring module and PLC linkage control system. Simple structure, few wearing parts and low maintenance cost fully comply with international industrial design standards of durability and low failure rate.
The operation process is standardized and highly automatic. Mixed plastic fragments after crushing are stably fed into the closed sorting chamber, where a stable and controllable circulating airflow field is formed. Under precise wind pressure, light impurities flow into the impurity collection channel and are discharged centrally. Pure plastic fragments settle steadily by gravity and are conveyed to the downstream silicone sorting equipment.
Built-in variable-frequency fans can flexibly adjust wind speed and pressure according to impurity content, material thickness, moisture content and plastic characteristics, adapting to impurity removal demands under different working conditions and ensuring stable sorting accuracy.
Moreover, the whole machine adopts a fully closed negative pressure structure without open dust points, restraining dust overflow from the source. Reserved standard dust removal interfaces can be seamlessly connected with the production line baghouse dust collector to uniformly collect fine floating dust generated during sorting. It effectively controls workshop dust concentration and meets international clean production specifications and atmospheric emission standards.
Equipped with standard maintenance openings and visual observation windows, the machine allows operators to check sorting status and clean internal residues regularly, adapting to the demand of low labor and easy maintenance in overseas factories.
The air sorting machine specially removes paper, cardboard fragments, foam particles, plastic film, fiber, floating dust and other non-elastic light impurities mixed in crushed plastics. Different from silicone sorting equipment which removes rubber and silicone elastic impurities, the air sorting machine focuses on cleaning light floating impurities in the front process.
The two types of equipment complement each other and form a double-layer impurity removal system for light impurities and elastic rubber impurities, comprehensively improving material cleanliness and laying a solid foundation for finished product quality of the whole production line.
When a large amount of light impurities and floating dust enter subsequent sorting and grinding equipment, they easily adhere to rollers, cutters and cavities, causing equipment stagnation, dust accumulation, wear and poor heat dissipation. This greatly shortens the service life of wearing parts and increases shutdown maintenance frequency.
The air sorting machine intercepts impurities in the front process, substantially reducing the impurity load of downstream equipment. It avoids problems such as material adhesion on silicone sorting rollers, grinding tool wear and pipeline blockage, effectively extending the continuous operation time of the whole line and lowering production and maintenance costs.
The equipment is suitable for PP, PE, PET, ABS, PS and various engineering plastic fragments. It is widely applied in household appliance shell dismantling and recycling, automotive plastic parts regeneration, daily chemical packaging plastic recycling, industrial plastic scrap processing and electronic waste plastic purification.
It can adaptively adjust parameters for materials with different thickness, moisture content and impurity proportion, showing strong universality and suitable for waste plastic recycling projects with different material types and impurity ratios worldwide.
The electric control system of the air sorting machine can be connected to the centralized PLC system of the production line, realizing signal interconnection, linked start-stop and synchronous speed regulation with upstream crushers and downstream silicone sorting equipment.
It is equipped with multiple safety protection mechanisms such as material shortage protection, overload protection, abnormal wind pressure alarm and blockage early warning. The whole process requires no manual sorting or manual wind pressure adjustment, achieving automatic continuous impurity removal. The highly automated operation mode adapts to overseas market characteristics of high labor cost and strict intelligent production requirements.
The equipment adopts full physical dry sorting with no wastewater discharge, no chemical consumption and no pollutant generation, belonging to a green environmental protection pretreatment process.
The fully closed negative pressure dustproof design enables workshop dust and noise indicators to meet environmental access standards of industrial parks in Europe, Southeast Asia, the Middle East and other regions. It helps overseas customers smoothly pass environmental impact assessment and safety production audit, solving environmental compliance problems of overseas projects.
The air sorting machine is strictly developed and manufactured according to foreign trade export standards. Structural technology, electrical configuration, safety protection, packaging and transportation, and technical documents fully meet the delivery requirements of international projects.
Adopting a modular split structure, it is easy to disassemble and install, compact in layout and small in floor space. It is suitable for container shipping, cross-border hoisting and on-site installation, fully complying with international marine logistics standards.
Core electrical components adopt internationally renowned brand parts, supporting customized voltage and frequency to adapt to power grid standards in Europe, America, Southeast Asia, the Middle East, Africa and other regions.
Overall insulation level, protection level, electromagnetic compatibility and safety interlock structure are all benchmarked against international mechanical safety specifications, meeting basic requirements such as overseas industrial park admission acceptance, project qualification review and equipment customs clearance delivery.
Inlet and outlet interfaces adopt international standard flanges with strong compatibility. It can support complete sets of plastic sorting, crushing and milling lines, and also match mainstream crushing and sorting equipment on the market. It adapts to multiple cooperation modes such as upgrading old overseas production lines, supporting new projects and general engineering contracting.
Complete English technical drawings, operation manuals, maintenance instructions and parameter lists are delivered with the equipment to ensure the whole-process implementation of installation, commissioning and after-sales service for international projects.
Air sorting machines are widely used in global renewable resource industrial parks, waste plastic processing bases, household appliance and automobile dismantling enterprises, industrial scrap processing factories and cross-border recycled raw material manufacturers.
As the core pre-purification unit of the plastic recycling production line, although it belongs to pretreatment supporting equipment, it directly determines the purification upper limit, yield rate, operational stability and international compliance capability of the whole line.
At the industrial level, the equipment makes up for the shortcomings of traditional plastic recycling lines such as incomplete pre-impurity removal, insufficient coverage of impurity types, low automation and substandard environmental protection. It improves the closed-loop process of multi-stage physical purification of waste plastics.
The combined process of front wind sorting, middle silicone fine sorting and rear grinding & dust removal enables domestic plastic recycling lines to achieve full-process standardization, cleanliness and intelligent production. The produced recycled plastic pellets feature stable grade and controllable impurities, fully conforming to international renewable resource trade standards, and greatly enhancing the global competitiveness of domestic recycling equipment and recycled raw materials.
The air sorting machine is an indispensable core pre-fine impurity removal unit in the plastic sorting, crushing and milling line. It connects the crushing process, empowers fine sorting, and undertakes multiple key functions including light impurity removal, material condition optimization, equipment protection and full-line environmental compliance.
With mature aerodynamic physical separation technology, modular industrial structure, automatic linkage control and internationally universal safety and environmental standards, it solves industry pain points such as difficult cleaning of light impurities in crushed waste plastics, high failure rate of downstream equipment, unstable finished quality and non-compliance of overseas production.
As the first core process in the multi-stage purification system of the whole production line, the air sorting machine forms a complete process closed loop with silicone sorting equipment, buffer hopper, grinding and dust removal systems. It comprehensively ensures stable quality of recycled plastic finished products and controllable and compliant production process.
It has become the standard core configuration of modern and international automatic waste plastic recycling production lines, continuously supporting the green, standardized and large-scale development of the global plastic circular economy.
