Alva Machinery

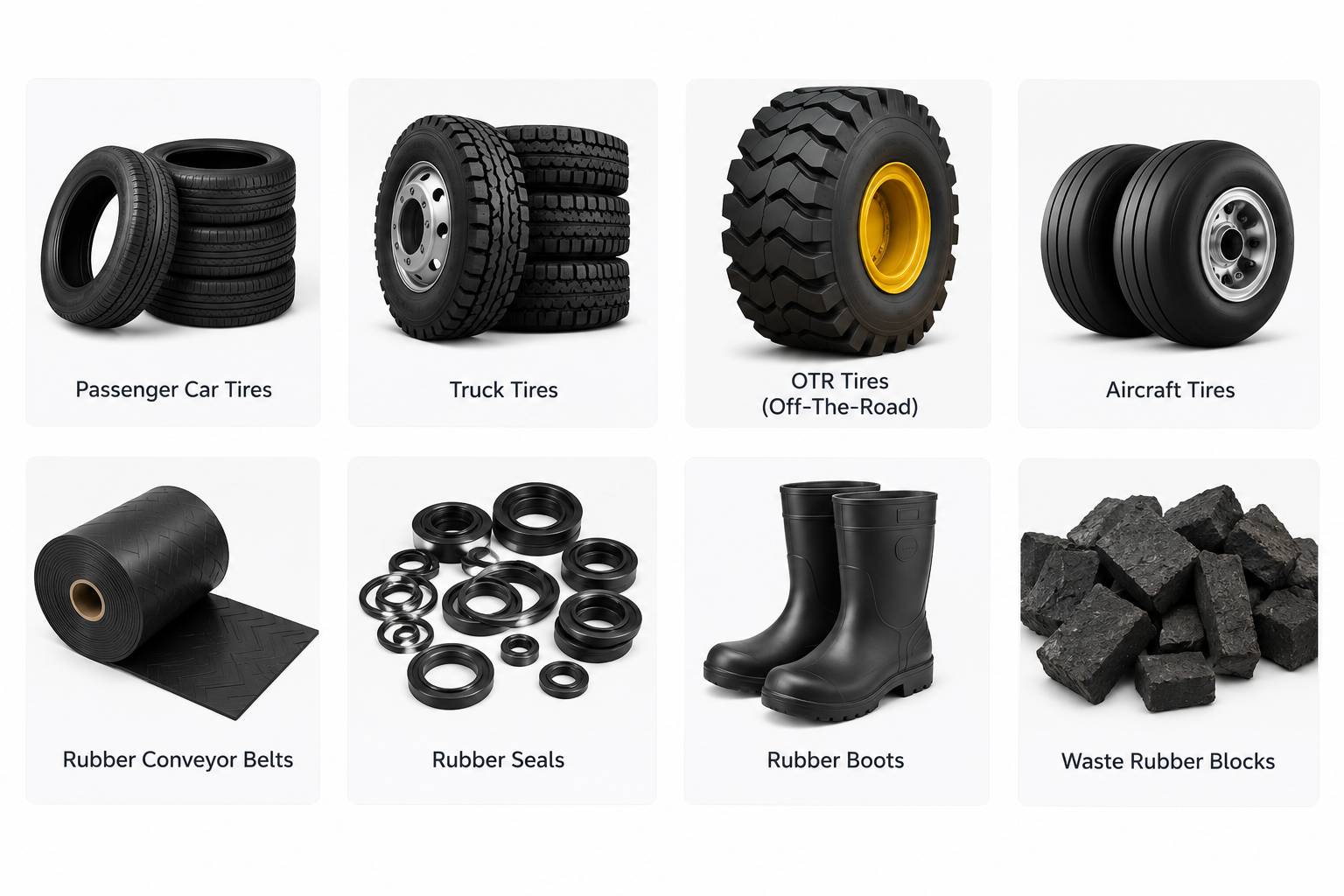

Our Double Shaft Tire Shredder is professionally engineered for recycling all types of waste tires and rubber products. Featuring high torque drive system and specially optimized cutter structure, this machine solves the winding problem caused by steel wires inside tires. It is widely adopted in tire recycling plants, rubber regeneration factories and waste tire pyrolysis projects, with hourly capacity ranging from 0.3 ton to 28 tons.
Our double shaft metal scrap shredder can process various ferrous and non-ferrous metal wastes:
Note: Customized configurations are available according to your specific material and output requirements.
Model | Feed Opening Size (mm) | Motor Power (kW) | Blade Quantity | Processing Capacity (t/h) | Overall Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|---|---|
ALVA-DSSM-500 | 500×300 | 2×7.5 | 16 | 0.3-1.5 | 2000×1400×1700 | 2800 |
ALVA-DSSM-600 | 600×400 | 2×11 | 20 | 0.8-3 | 2300×1600×1900 | 3800 |
ALVA-DSSM-800 | 800×500 | 2×15 | 24 | 2-6 | 2700×1900×2100 | 5500 |
ALVA-DSSM-1000 | 1000×600 | 2×22 | 30 | 5-12 | 3300×2300×2400 | 9000 |
ALVA-DSSM-1200 | 1200×700 | 2×37 | 36 | 10-20 | 3900×2700×2700 | 14000 |
ALVA-DSSM-1500 | 1500×800 | 2×55 | 48 | 18-30 | 4600×3300×3100 | 23000 |
Professional Anti-Winding Structure
Specially designed spiral and staggered blades can effectively grip tires and avoid winding by steel wires and rubber strips. Automatic forward and reverse rotation function prevents machine jamming and ensures continuous stable operation.
High Strength Wear-Resistant Blades
Adopt Cr12MoV or SKD-11 alloy steel blades with strict heat treatment, featuring strong impact resistance and long service life. Detachable assembly structure supports blade flipping and individual replacement, greatly cutting maintenance cost.
High Torque Drive System
Dual independent motor and gearbox drive delivers powerful torque, easily shredding passenger car tires, truck tires and large off-the-road tires. Stable running speed lowers failure rate under heavy load.
Integrated Safety & Humanized Design
Equipped with complete safety protection devices to meet international operation standards. Optimized feeding chamber and body structure, low noise and vibration during operation. Easy access for daily inspection and maintenance.
✅ 20+ years of experience in manufacturing solid waste recycling equipment
✅ CE and ISO certified products, exported to more than 80 countries
✅ Professional technical team provides customized solutions
✅ 12-month warranty period and lifelong after-sales service
✅ Fast delivery time: 15-30 days for standard models
✅ Overseas installation and commissioning service available
Contact us today to get the latest price and detailed technical information about our products. Our professional engineers will provide you with the most suitable recycling solution according to your needs.
