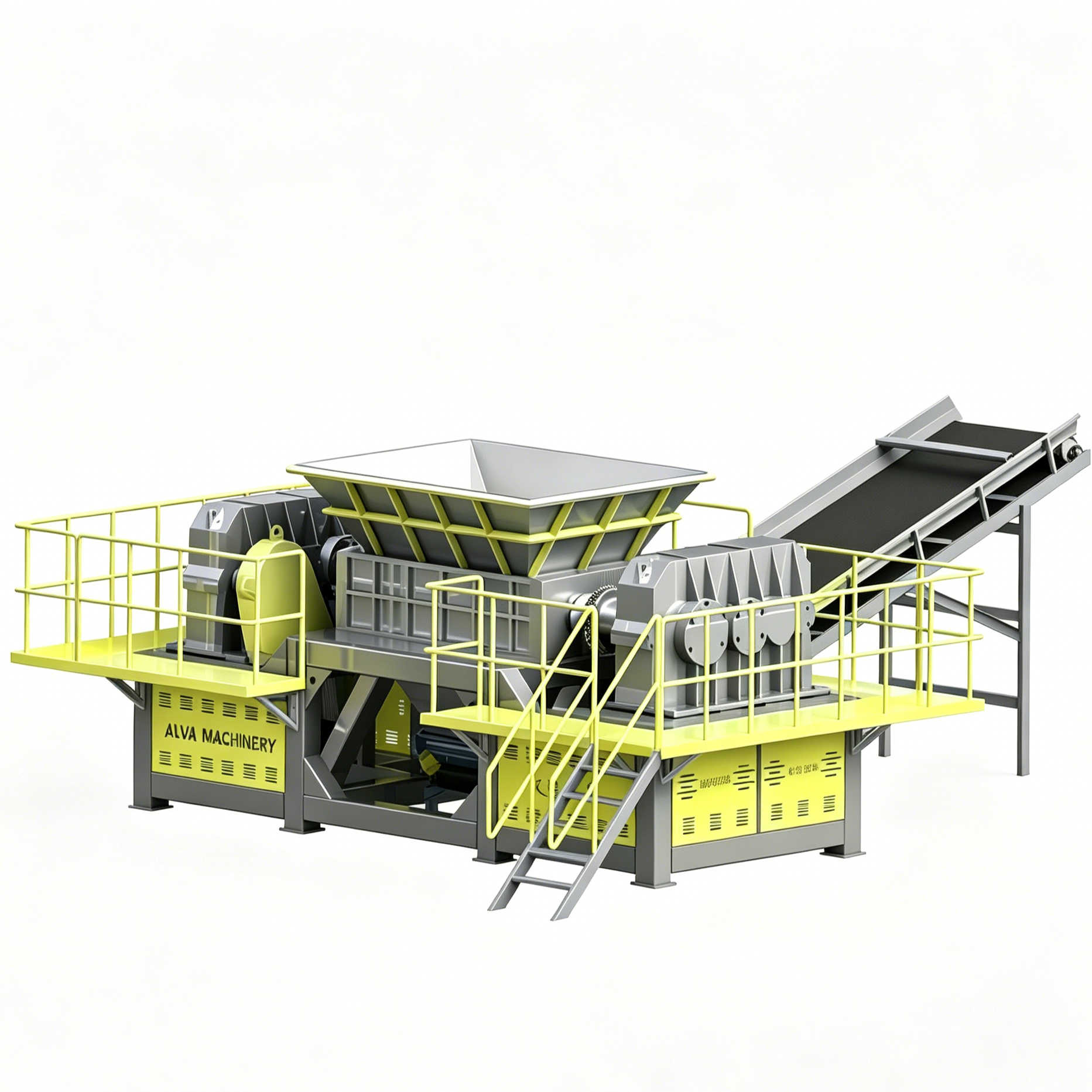

Our Double Shaft Wood & Biomass Shredder is a dedicated crushing device for wood waste and various biomass materials. Adopting low-speed high-torque dual-shaft driving structure and optimized blade layout, it features large feeding capacity, strong cutting force and stable operation. This machine is widely used in wood processing factories, biomass power plants, organic fertilizer production lines and garden waste treatment projects, with processing capacity ranging from 0.4t/h to 33t/h.
Our double shaft metal scrap shredder can process various ferrous and non-ferrous metal wastes:
Note: Customized configurations are available according to your specific material and output requirements.
Model | Feed Opening Size (mm) | Motor Power (kW) | Blade Quantity | Processing Capacity (t/h) | Overall Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|---|---|
ALVA-DSSM-600 | 600×400 | 2×11 | 20 | 0.4-2.8 | 2320×1610×1910 | 3750 |
ALVA-DSSM-800 | 800×500 | 2×15 | 24 | 2.2-6.5 | 2720×1910×2110 | 5450 |
ALVA-DSSM-1000 | 1000×600 | 2×22 | 30 | 6.2-13.5 | 3320×2310×2410 | 8850 |
ALVA-DSSM-1200 | 1200×700 | 2×37 | 36 | 12.5-21 | 3920×2710×2710 | 13900 |
ALVA-DSSM-1500 | 1500×800 | 2×55 | 48 | 19.5-33 | 4620×3310×3110 | 22900 |
Large Feeding Port & High Throughput
Extra-wide feeding chamber allows direct feeding of whole logs, tree trunks and large wooden pallets. The matched blade structure delivers powerful cutting performance, greatly improving overall production efficiency.

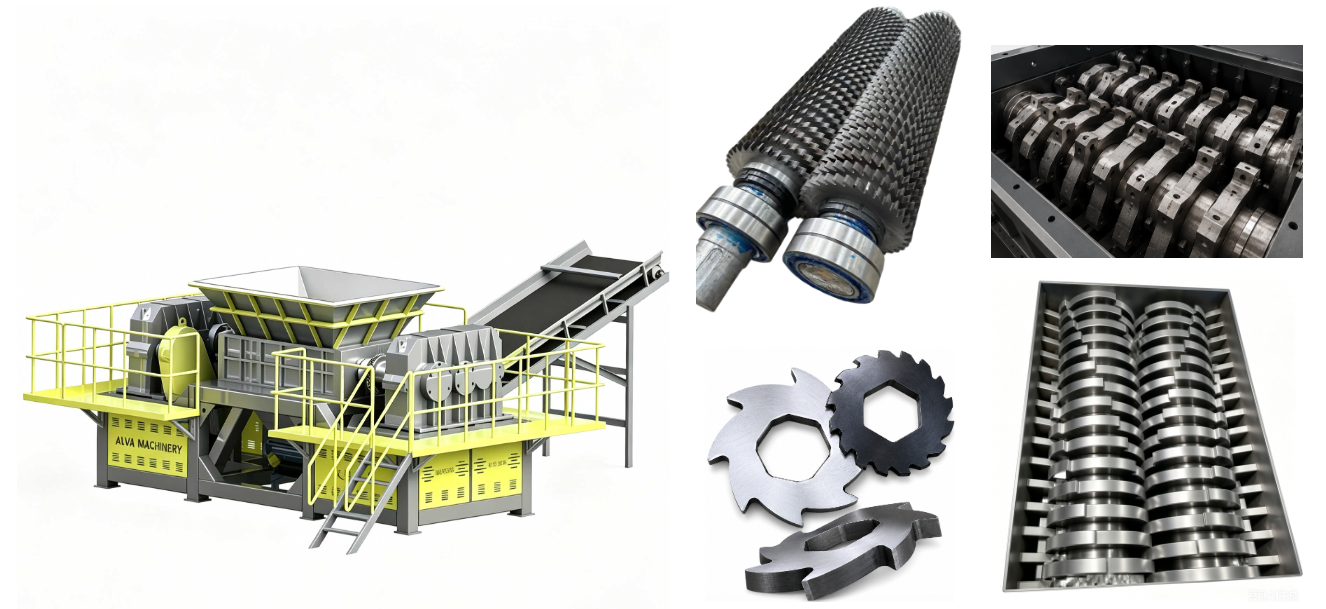

Sharp & Durable Blade System
Blades are made of high-grade alloy steel with professional heat treatment, featuring sharp cutting edge and excellent wear resistance. Assembled design enables individual replacement and blade flipping, effectively lowering later maintenance costs.
Strong Adaptability & Anti-Blocking Design
Dual independent drive provides ample torque to process wet wood, branches with soil and mixed biomass. PLC intelligent control system supports automatic forward and reverse rotation to prevent jamming, realizing long-time continuous operation.
Solid Body & Energy Saving
Integral welded heavy-duty frame is firm and anti-deformation, suitable for harsh working conditions. Reasonable power matching reduces energy consumption. Low noise and vibration meet on-site operation requirements.
