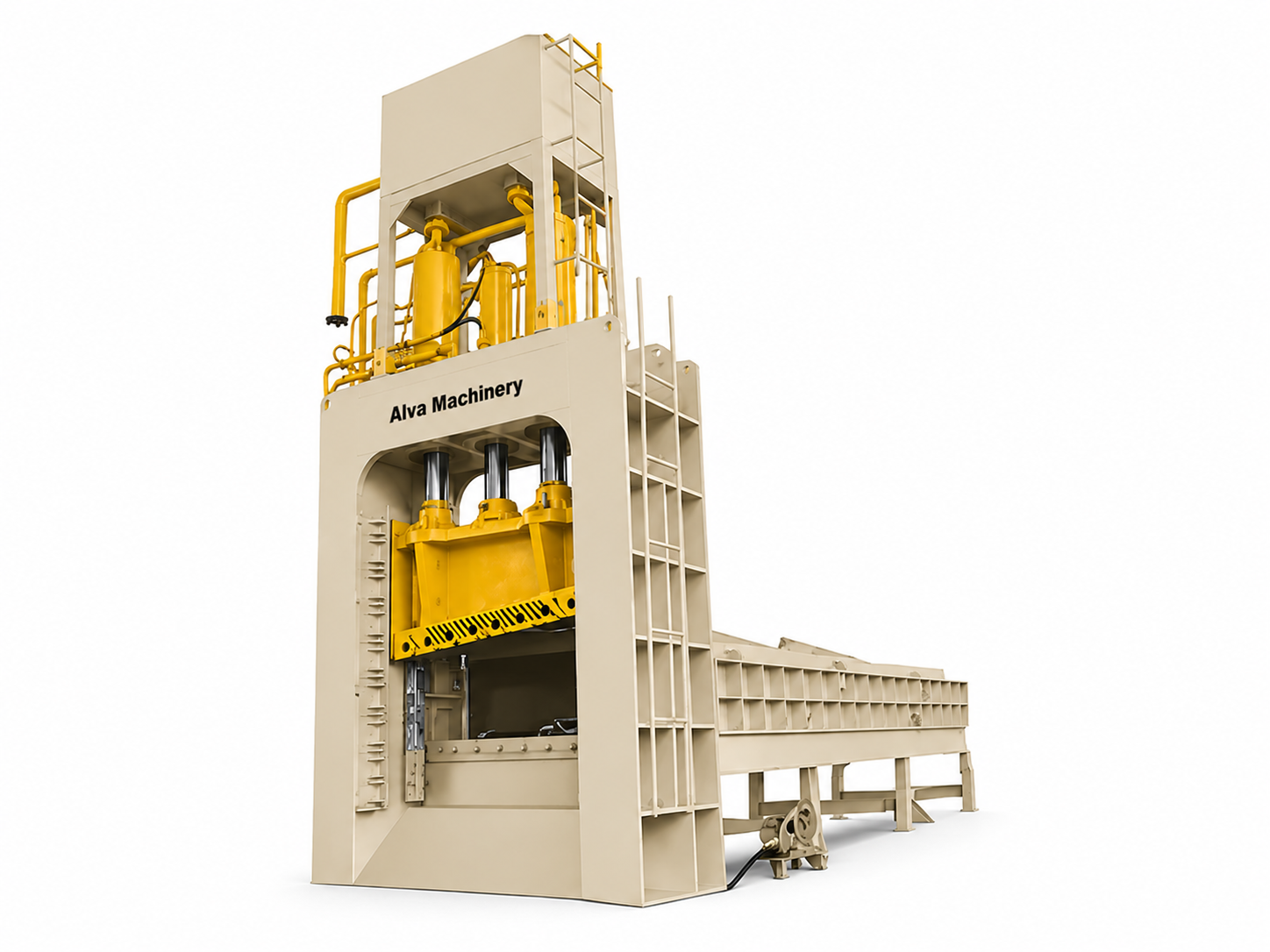

Alva Machinery Gantry Shear is a professional heavy-duty hydraulic cutting equipment designed for processing large and thick scrap metal materials. It adopts an advanced gantry frame structure and high-pressure hydraulic system, which can efficiently cut various heavy scrap steel into qualified furnace charge sizes. Our gantry shears are the standard core equipment for large-scale scrap metal recycling bases and steel mills, with processing capacity ranging from 5 tons/hour to 30 tons/hour.
Economic Benefit: Cutting heavy scrap steel into uniform furnace charge sizes increases its market value by 15-25%, significantly improves smelting efficiency and reduces smelting costs for steel mills.
Note: Customized configurations are available according to your specific material and output requirements.
Model | Main Shear Force (Tons) | Max Shear Size (mm) | Processing Capacity (t/h) | Motor Power (kW) | Overall Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|---|---|
ALVA-GS400 | 400 | 600×400 | 5-8 | 45 | 6500×2800×3500 | 28000 |
ALVA-GS630 | 630 | 800×500 | 8-15 | 75 | 7800×3200×4000 | 45000 |
ALVA-GS800 | 800 | 1000×600 | 15-22 | 110 | 9200×3600×4500 | 68000 |
ALVA-GS1250 | 1250 | 1200×700 | 22-30 | 160 | 11000×4200×5200 | 105000 |
Super High Shear Force System
400-1250 tons main shear force, can cut steel plates up to 150mm thick
Imported YUKEN hydraulic valve group ensures stable and powerful operation
Constant power system saves 25% energy compared to traditional models
Heavy Duty Industrial Construction
Integral cast steel gantry frame with no welding deformation
H13 hot work die steel blades with long service life
Designed for 24/7 continuous operation under harsh industrial conditions
Fully Automatic Continuous Operation
PLC automatic control system with touch screen interface
Automatic feeding, clamping, shearing and discharging processes
Adjustable shear length and frequency according to material characteristics
Comprehensive Safety Protection
Fully enclosed operation cabin with sound insulation
Multiple safety protection devices including photoelectric sensors and emergency stop
Overload protection system prevents equipment damage
✅ 20+ years of experience in manufacturing solid waste recycling equipment
✅ CE and ISO certified products, exported to more than 80 countries
✅ Professional technical team provides customized solutions
✅ 12-month warranty period and lifelong after-sales service
✅ Fast delivery time: 15-30 days for standard models
✅ Overseas installation and commissioning service available
Contact us today to get the latest price and detailed technical information about our products. Our professional engineers will provide you with the most suitable recycling solution according to your needs.
