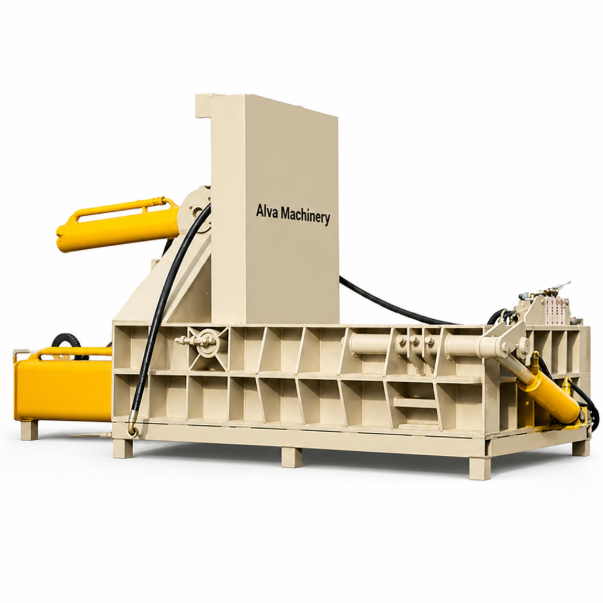

Alva Machinery Metal Baler is a professional horizontal hydraulic compression equipment designed to process bulky and loose scrap metal into standardized, high-density rectangular bales. It adopts advanced multi-cylinder hydraulic system and PLC automatic control technology, which can efficiently compress scrap steel, iron, aluminum, copper, car bodies and appliance shells into bales with density up to 2.5 tons/m³. Our metal balers are essential equipment for scrap yards, metal recycling centers and steel mills, with processing capacity ranging from 1 ton/hour to 15 tons/hour.
Economic Benefit: Baling scrap metal reduces storage space by 80% and transportation cost by 70%, significantly increasing the value of scrap metal and providing return on investment within 6-12 months.
Note: Customized configurations are available according to your specific material and output requirements.
Model | Main Pressure (Tons) | Bale Size (mm) | Processing Capacity (t/h) | Motor Power (kW) | Overall Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|---|---|
ALVA-MB80 | 80 | 300×300×600 | 1-3 | 15 | 3500×1500×1800 | 4500 |
ALVA-MB120 | 120 | 400×400×800 | 3-6 | 22 | 4200×1800×2000 | 7800 |
ALVA-MB200 | 200 | 500×500×1000 | 6-10 | 37 | 5000×2200×2300 | 13500 |
ALVA-MB315 | 315 | 600×600×1200 | 10-15 | 55 | 6000×2600×2600 | 22000 |
High Pressure Hydraulic System
80-400 tons main compression force, bale density up to 2.5 tons/m³
Constant power variable piston pump saves 30% energy compared to traditional models
YUKEN cartridge valve group ensures fast response and stable operation
Significant Cost Reduction
Reduces scrap metal volume by 80%, maximizing container loading capacity
Eliminates loose material spillage during transportation
Standardized bale size facilitates stacking, storage and trading
Heavy Duty Industrial Construction
20mm thick high-strength alloy steel frame structure
Pressure head surfacing welded with 5mm tungsten carbide wear-resistant layer
Designed for 24/7 continuous operation with service life over 10 years
Safe & Automatic Operation
Fully enclosed compression chamber prevents metal debris splashing
Multiple safety protection devices including limit switches and emergency stop
PLC touch screen control, automatic feeding, compression and discharging
✅ 20+ years of experience in manufacturing solid waste recycling equipment
✅ CE and ISO certified products, exported to more than 80 countries
✅ Professional technical team provides customized solutions
✅ 12-month warranty period and lifelong after-sales service
✅ Fast delivery time: 15-30 days for standard models
✅ Overseas installation and commissioning service available
Contact us today to get the latest price and detailed technical information about our products. Our professional engineers will provide you with the most suitable recycling solution according to your needs.
