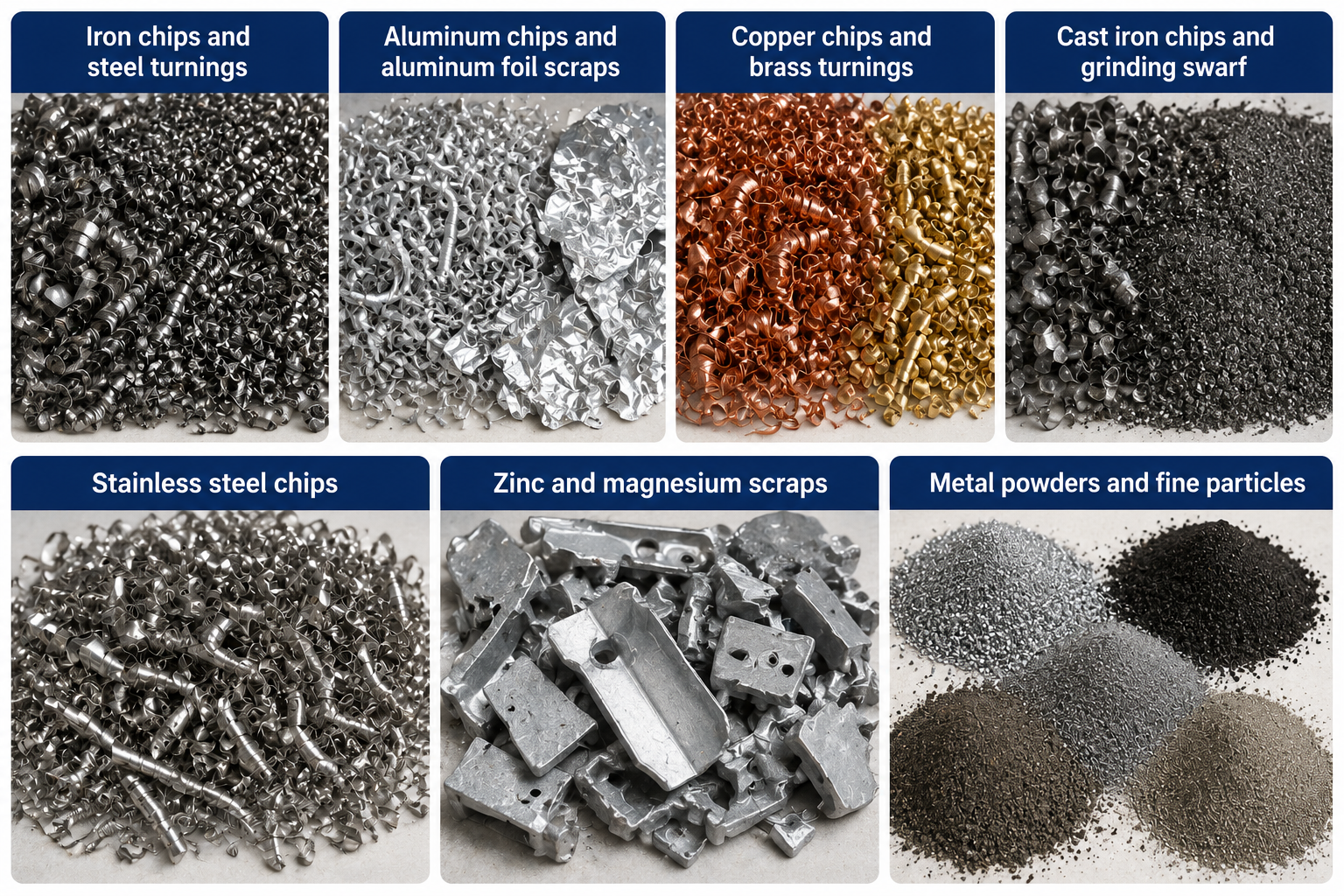

Alva Machinery Metal Briquette Machine is a professional hydraulic pressure equipment designed to compress loose metal chips and turnings into high density solid briquettes. It adopts advanced vertical hydraulic structure and automatic control system, which can effectively process iron, steel, aluminum, copper and other metal scraps into briquettes with density up to 6 tons/m³. Our metal briquette presses are widely used in foundries, metal processing plants and scrap metal recycling centers, with processing capacity ranging from 200kg/h to 2000kg/h.
Economic Benefit: Briquetting metal chips increases their value by 20-40%, reduces transportation cost by 70%, and significantly reduces melting loss during smelting, providing rapid return on investment.
Note: Customized configurations are available according to your specific material and output requirements.
Model | Hydraulic Pressure (Tons) | Briquette Diameter (mm) | Processing Capacity (kg/h) | Motor Power (kW) | Overall Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|---|---|
ALVA-MB200 | 200 | 50-80 | 200-400 | 15 | 2200×1200×2500 | 3500 |
ALVA-MB400 | 400 | 80-120 | 400-800 | 22 | 2600×1500×2800 | 6500 |
ALVA-MB630 | 630 | 120-160 | 800-1200 | 37 | 3000×1800×3200 | 11000 |
ALVA-MB1000 | 1000 | 160-200 | 1200-2000 | 55 | 3500×2200×3600 | 18000 |
High Density Briquette Formation
200-1000 tons hydraulic pressure, briquette density up to 6 tons/m³
Briquettes are solid and durable, no breakage during transportation
Can be directly charged into furnaces for smelting without further processing
Significant Melting Loss Reduction
Reduces metal burning loss by 30-50% compared to loose chips
Minimizes oxidation and slag formation during smelting
Improves metal recovery rate and smelting efficiency
Fully Automatic Operation
PLC automatic control system with touch screen interface
Automatic feeding, pressing and discharging processes
Only one operator required for continuous production
Multiple safety protection devices ensure operator safety
Heavy Duty Industrial Design
Reinforced steel frame structure for long service life
Wear-resistant alloy steel pressing chamber and piston
Low noise and low vibration operation
Simple structure with minimal maintenance requirements
✅ 20+ years of experience in manufacturing solid waste recycling equipment
✅ CE and ISO certified products, exported to more than 80 countries
✅ Professional technical team provides customized solutions
✅ 12-month warranty period and lifelong after-sales service
✅ Fast delivery time: 15-30 days for standard models
✅ Overseas installation and commissioning service available
Contact us today to get the latest price and detailed technical information about our products. Our professional engineers will provide you with the most suitable recycling solution according to your needs.
