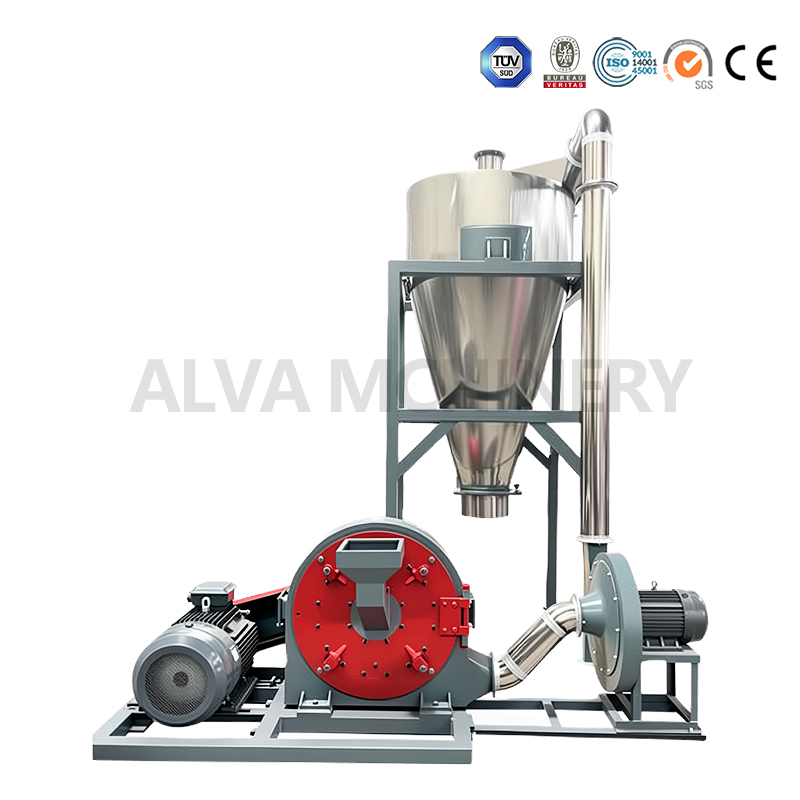

ALVA-600 PVC Grinding Machine

The Model 600 PVC pulverizer is an automated processing machine designed for the recycling of medium-volume rigid PVC scrap. Its primary application is in the waste recycling systems of the plastics chemical industry and PVC product manufacturers. This machine specializes in processing rigid materials such as PVC small white pipes, plastic-steel door and window profiles, skirting boards, decorative moldings, plasterboards, and plaster pipes. It is also compatible with the pulverization and recycling of new, environmentally friendly materials such as SPC flooring and WPC wood-plastic composites.

Availability:

PVC crusher PVC grinder PVC pulverizer PVC grinding equipment PVC crushing and grinding machine PVC powder preparation machine PVC waste pulverizer PVC plastic pulverizer

Product Details

1. Core Positioning

The Model 600 PVC pulverizer is an automated processing machine designed for the recycling of medium-volume rigid PVC scrap. Its primary application is in the waste recycling systems of the plastics chemical industry and PVC product manufacturers. This machine specializes in processing rigid materials such as PVC small white pipes, plastic-steel door and window profiles, skirting boards, decorative moldings, plasterboards, and plaster pipes. It is also compatible with the pulverization and recycling of new, environmentally friendly materials such as SPC flooring and WPC wood-plastic composites.

With a production capacity of 200-400 kg/h, the Model 600 meets diverse needs, from coarse powder filling to fine modification. It can be widely used in scrap recycling lines of pipe and profile factories,decorative material factories, and in the early stages of powder preparation for recycled plastic pellet manufacturers.

2. Technical Parameters

Mode	Type 400	Type 600	Type 800	Type 1000
Cutter diameter	400mm	600mm	800mm	1000mm
Number of cutter discs	18 piece	28 piece	36 piece	42 piece
Motor power	18 - 30KW	45 - 55KW	75 - 90KW	90 - 110KW
Speed	3900(r/min)	3600(r/min)	2800(r/min)	2600(r/min)
Suction fan	2.2 - 3KW	4.5KW	5.5 - 11KW	7.5 - 15KW
Fan off	0.75(KW)	1.1(KW)	1.5(KW)	1.5(KW)
Vibrating screen	0.55KW600	1.1KW1000	1.1KW1200	1.5KW1500
Mill water	circulating water	circulating water	circulating water	circulating water
Grinding capacity	80 - 150(Kg/h)	200 - 400(Kg/h)	600 - 1000(Kg/h)	800 - 1500(Kg/h)
Installation dimensions	220013003000(mm)	300018003500(mm)	320018003700(mm)	350018003800(mm)

3. Crushing Range

4. Core Advantages

Wide Material Adaptability:This PVC grinding mill not only efficiently processes various types of PVC waste but is also compatible with a variety of plastic materials, such as PE, PS, and PA, meeting the needs of diverse plastic recycling and processing scenarios, providing strong support for companies to expand their raw material sources and improve resource utilization.

Intelligent and Precise Control: Equipped with an advanced intelligent control system, it precisely adjusts parameters such as feed rate and grinding speed, ensuring stable grinding and consistent powder quality under varying operating conditions. This reduces manual operation errors and enhances intelligent and controllable production.
Excellent Wear Resistance: Core grinding components are made of highly wear-resistant materials to withstand long-term, high-intensity material grinding operations, effectively extending equipment life, reducing maintenance costs and downtime caused by component wear, and ensuring continuous production.
Significant Energy Savings: By optimizing the power system and mechanical structure, energy consumption is significantly reduced while maintaining grinding efficiency. Compared to traditional grinding equipment, this can significantly save companies significant electricity costs, aligning with the production trend of energy conservation and consumption reduction.
