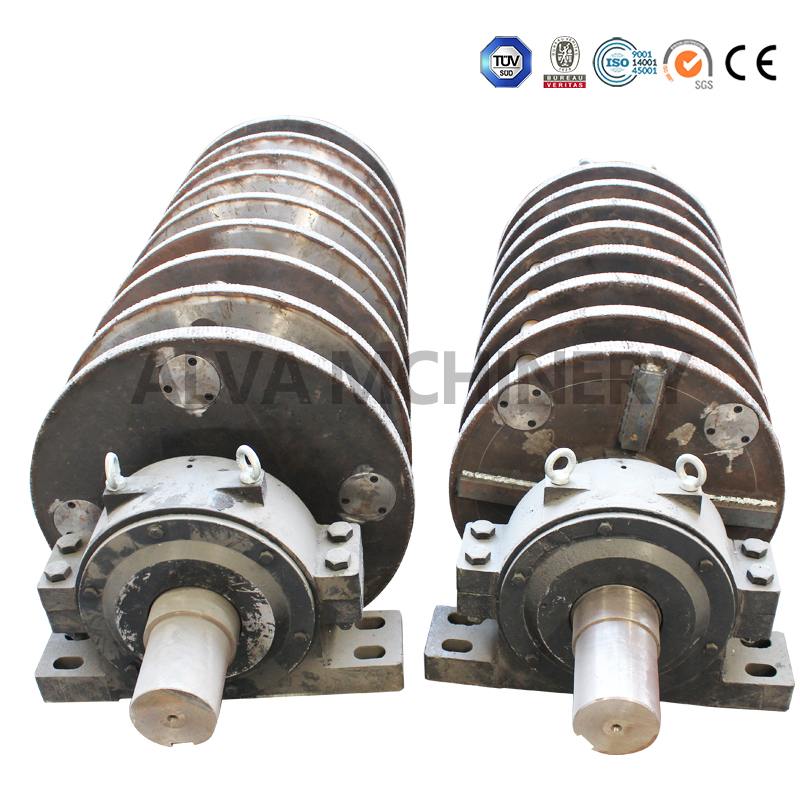

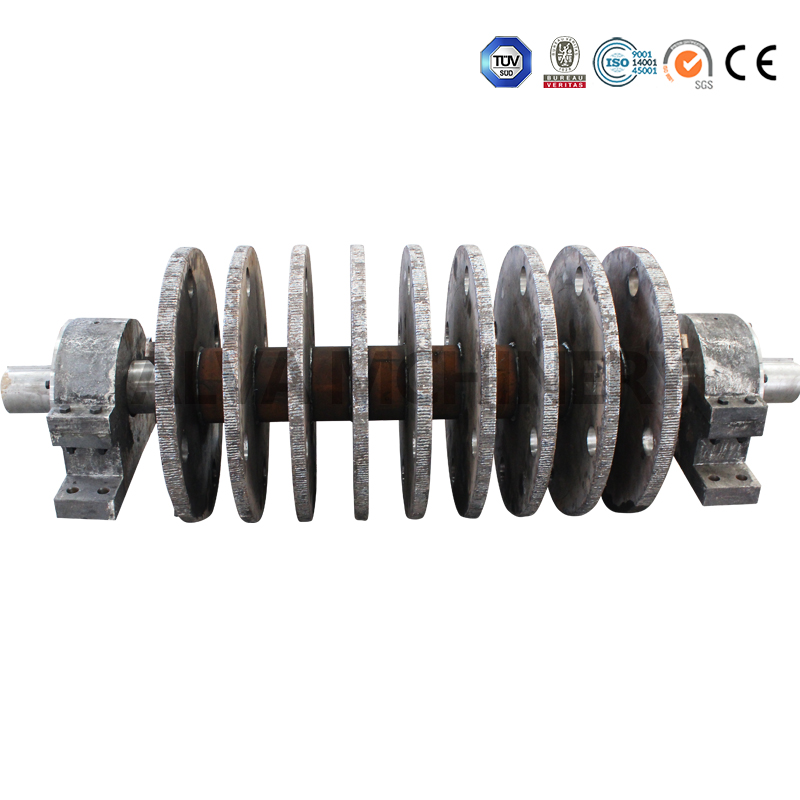

The Crushing Machinery Hammer stands as a cornerstone of high-performance crushing systems, engineered to deliver exceptional impact resistance and wear longevity in the most demanding material processing environments.
| Availability: | |
|---|---|
| Quantity: | |
As a critical component in primary and secondary crushers, it is specifically designed to handle hard, abrasive materials—including limestone, granite, basalt, and cement clinker—without compromising on efficiency or durability. Constructed from alloyed high manganese steel (Mn 12–14%) with a hardness rating of 62–65 HRC, this hammer outperforms conventional carbon steel or low-alloy alternatives by 50% in abrasive wear scenarios. Its success lies in a combination of advanced material science and optimized geometric design, ensuring consistent particle size reduction while minimizing downtime for replacements. The hammer’s modular architecture allows seamless integration with leading crusher brands such as Hazemag, Kurimoto, and Metso, making it a versatile upgrade for existing crushing systems.
Base Alloy: High manganese steel (Mn 12–14%) with controlled additions of chromium (1.5–2.0%), molybdenum (0.5–1.0%), and nickel (0.3–0.5%) to enhance hardenability
Heat Treatment: Solution annealing at 1050°C followed by water quenching to achieve austenitic microstructure with work-hardening properties
Surface Hardening: Optional tungsten carbide (WC) hard-facing with 60–65 HRC hardness for extreme wear applications (e.g., granite crushing)
Impact Toughness: ≥20 J/cm² at -20°C, ensuring resistance to brittle fracture in cold environments
Weight: 5–50 kg (customizable to match rotor balance requirements, with ±50g precision for vibration reduction)
Dimensions: Lengths from 200 mm to 1,600 mm; widths up to 1,000 mm; head thickness varying by application (25–150 mm)
Attachment System: Bolt-on (M20–M36 high-tensile bolts) or pin-mounted designs, compatible with standard crusher rotor configurations
Profile Optimization: Curved or flat impact surfaces tailored to material type (curved for brittle materials, flat for ductile ores)
Rotor Speed: 500–2,300 RPM (synchronized with crusher power rating; 1,500 RPM optimal for medium-hard rock)
Impact Energy: Up to 1,500 J per strike (calculated based on rotor kinetic energy and material hardness)
Service Life: 800–1,500 operating hours (varies by material; 30% longer life in limestone vs. granite applications)
Balancing Tolerance: G2.5 dynamic balance class to minimize rotor vibration and bearing stress
The hammer's duplex microstructure is the result of precise alloying and heat treatment, creating a wear-resistant head that work-hardens during impact while maintaining a tough, ductile shank. This dual-property design minimizes breakage in high-impact operations, where sudden material overloads are common. The one-piece casting process eliminates welds or joints—traditional weak points in hammer design—ensuring uniform material properties across the entire component. In field tests, this construction has reduced hammer failure rates by 45% compared to welded or segmented alternatives, particularly in applications involving mixed material streams (e.g., construction debris with metal reinforcements).
Optimized Mass Distribution: Computer-aided design (CAD) simulates impact dynamics to position mass at the hammer’s impact zone, reducing energy loss by 15% and lowering overall crusher power consumption.
Self-Sharpening Edges: Precision-machined impact surfaces maintain sharp angles even after prolonged use, ensuring consistent particle size reduction (P80 <50 mm) and reducing the need for frequent regrinding.
Controlled Fragmentation: Strategic head geometry directs impact energy to fracture materials along natural cleavage planes, reducing over-crushing and improving product uniformity.
Quick Replacement: Bolt-on designs feature captive fasteners and alignment pins, allowing rotor-side replacement in under 30 minutes without full crusher disassembly—a 60% time savings over traditional hammer systems.
Dynamic Balancing: Each hammer is pre-balanced with its counterparts to ensure rotor stability, extending bearing life by 30% and reducing maintenance intervals for crusher drivetrains.
Wear Monitoring: Optional wear indicators (visual or sensor-based) alert operators to replace hammers before performance degrades, preventing costly damage to crusher liners or rotors.
Primary Crushing: Breaks oversized boulders (up to 1.5m in diameter) of granite and basalt into manageable feed sizes for secondary processing, reducing downstream equipment stress.
Ore Processing: Efficiently crushes iron ore, copper ore, and bauxite, producing uniform particle sizes that improve beneficiation efficiency in flotation or magnetic separation stages.
Aggregate Production: Processes limestone, gravel, and sandstone into graded aggregates (0–5mm, 5–10mm, 10–20mm) for concrete, asphalt, and road base construction, meeting ASTM C33 and EN 12620 standards.
Recycled Concrete: Breaks down demolition waste into reusable aggregates, removing reinforcing steel and achieving particle uniformity comparable to virgin materials.
Cement Production: Crushes clinker and gypsum in vertical roller mills and hammer crushers, ensuring optimal particle size distribution for efficient cement grinding and strength development.
Power Generation: Handles coal and biomass (e.g., wood chips, agricultural waste) in pulverizers, reducing fuel particle size to enhance combustion efficiency in boilers.
Hazardous Waste: Processes contaminated soil, slag, and asbestos-containing materials into inert fractions for safe disposal or encapsulation.
MSW Recycling: Breaks down municipal solid waste (MSW) into recyclable fractions, separating metals, plastics, and organic matter for resource recovery.
With its unrivaled combination of material durability, design precision, and operational efficiency, the Crushing Machinery Hammer sets the standard for high-performance crushing in industries where reliability and productivity are critical to success.
