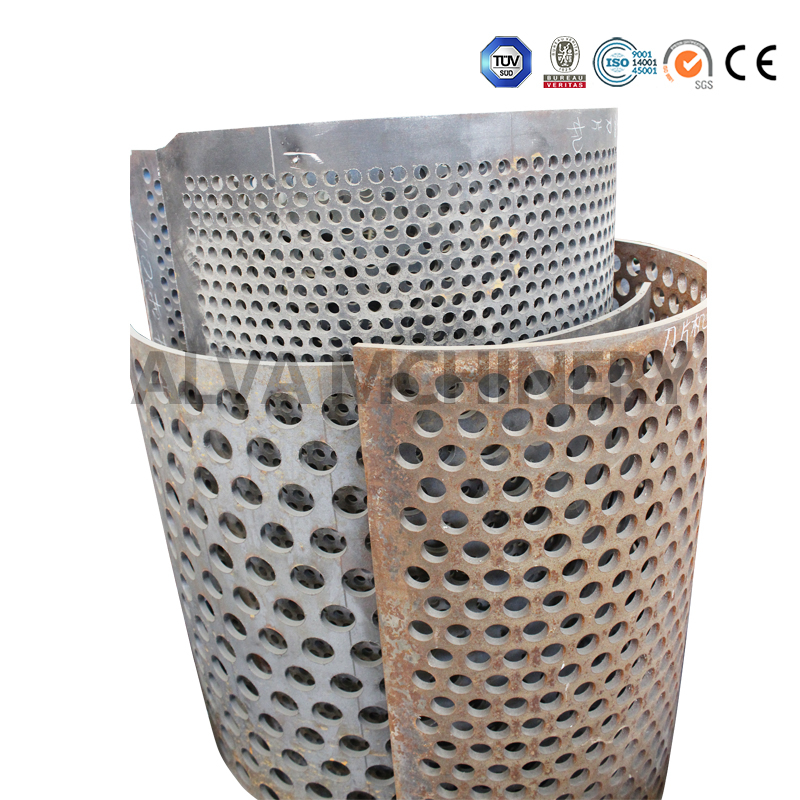

The Crushing Machine Screen is the unsung hero of material processing systems, responsible for classifying crushed materials into distinct particle sizes with exceptional accuracy.
| Availability: | |
|---|---|
| Quantity: | |
Beyond simple separation, these screens determine product quality, process efficiency, and downstream equipment performance in industries ranging from mining to waste management. Available in polyurethane, rubber, and high chromium steel variants, each material is engineered to address specific challenges: abrasion, adhesion, corrosion, or high impact. Modern screens integrate innovative designs—from self-cleaning apertures to modular panels—that reduce clogging, extend service life, and simplify maintenance. In aggregate production alone, a high-performance screen can increase yield by 10-20% by minimizing oversize and undersize particles.
Parameter | Range/Details |
Material | Polyurethane (Shore A 85-95), rubber (Shore A 60-80), high chromium steel (HRC 55-60), manganese steel (Mn13) |
Mesh Size | 0.5mm to 150mm (customizable); aperture tolerance: ±0.1mm for fine screens, ±1mm for coarse screens |
Aperture Shape | Square, rectangular, round, or custom patterns (slotted, hexagonal) based on material flow characteristics |
Thickness | 3mm to 50mm (polyurethane/rubber); 5mm to 20mm (steel) |
Temperature Resistance | -40°C to 80°C (rubber); -20°C to 120°C (polyurethane); -40°C to 300°C (steel) |
Wear Resistance | Polyurethane: 3-5x longer than steel in wet applications; rubber: 2-3x longer than steel in low-temperature environments |
Panel Size | 500×500mm to 2000×3000mm (modular); customizable for screen box dimensions |
Polyurethane Screens: Elastomeric material with high elasticity (elongation at break ≥300%) resists impact and prevents material sticking, ideal for clay-rich soils and wet sand. Lifespan is 8-10 times longer than steel in aggregate washing plants.
Rubber Screens: Natural rubber compound with 5-10% synthetic rubber blend offers superior flexibility, reducing noise by 10-15 dB and absorbing vibration in mobile crushers.

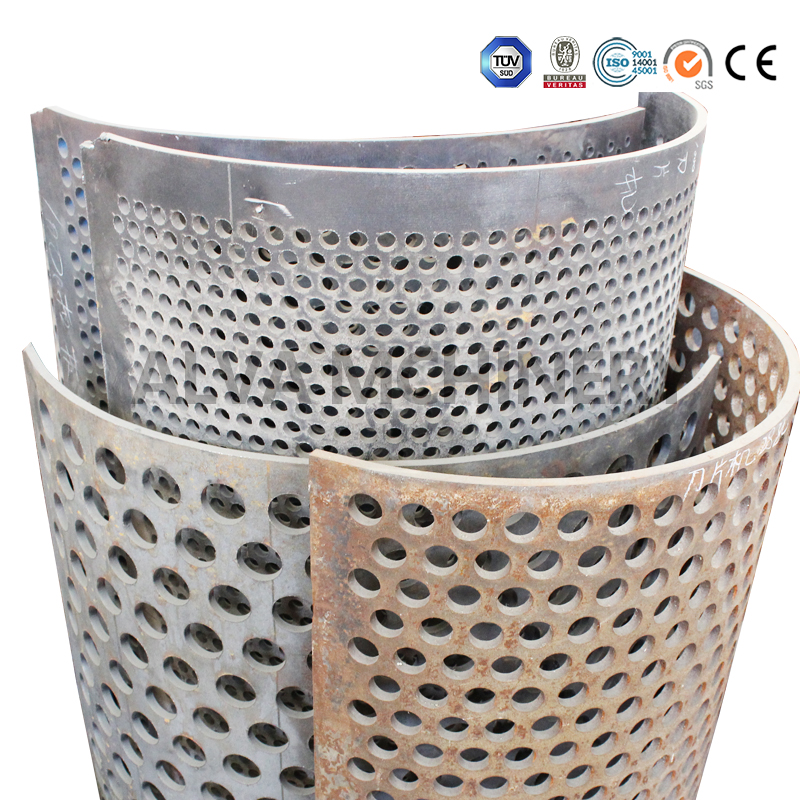

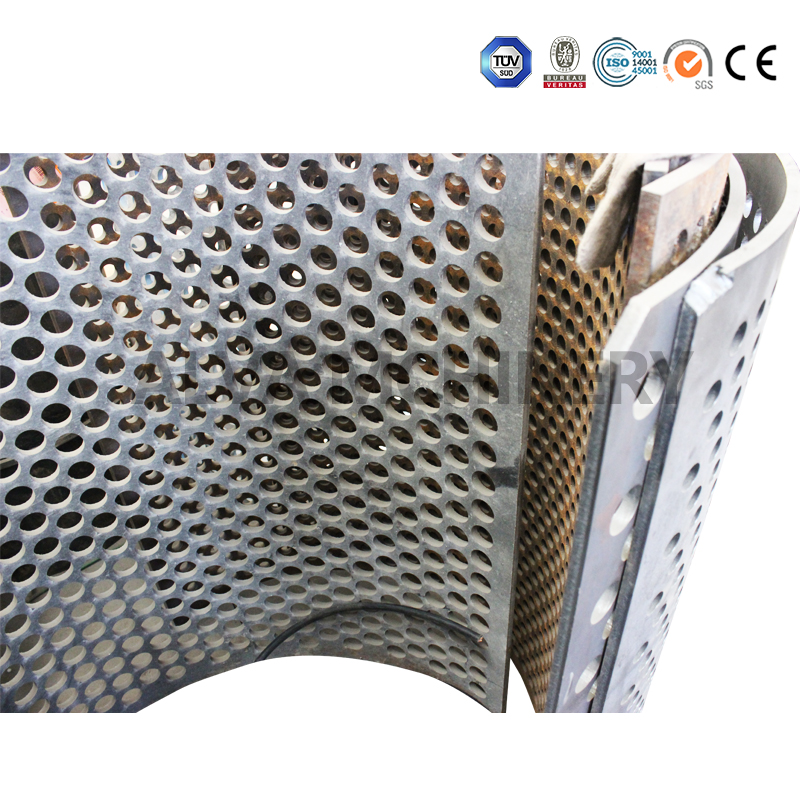

Steel Screens: High chromium steel woven or punched panels provide rigidity for heavy-duty applications, such as screening iron ore and granite with particle sizes exceeding 50mm.
Optimized Aperture Design: Computational fluid dynamics (CFD) simulations ensure uniform material flow, with aperture patterns tailored to prevent pegging (particle trapping) in angular materials.
Self-Cleaning Properties: Polyurethane screens feature 3°-5° inclined apertures and flexible edges that vibrate freely, reducing clogging by 60% in coal and limestone processing.
Vibration Transmission: Steel-backed polyurethane screens enhance energy transfer from the screen box, increasing screening efficiency by 15% compared to standalone rubber screens.
Modular Design: Individual panels (2-4 per m²) connect via quick-release clips, allowing replacement of worn sections in 30 minutes without disassembling the entire screen.
Corrosion Resistance: Polyurethane and rubber screens resist acids, alkalis, and saltwater, making them suitable for coastal quarries and chemical processing plants.
Wear Indicators: Color-coded layers in polyurethane screens signal when 70% of wear life is reached, enabling proactive maintenance scheduling.
Tailored to Application: Punched steel screens for large aggregate (50-150mm), woven wire for medium particles (5-50mm), and fine mesh polyurethane for sand (0.5-5mm).
Noise Reduction: Rubber and polyurethane screens dampen impact noise, meeting OSHA standards (<85 dB) in urban construction zones.
Specialized Coatings: Optional ceramic particle embedding in polyurethane increases wear resistance by 30% in silica sand processing.
Ore Sorting: Separates crushed gold ore (1-10mm), copper ore (5-20mm), and iron ore (10-50mm) into grades for beneficiation, ensuring optimal recovery rates.
Coal Processing: Screens run-of-mine coal into size fractions (0-13mm, 13-50mm) for coking, power generation, and industrial use, removing rock impurities.
Sand and Gravel Production: Classifies crushed stone into concrete sand (0-5mm), fine aggregate (5-10mm), and coarse aggregate (10-30mm), meeting EN 12620 standards.
Recycling: Sorts construction and demolition (C&D) waste into reusable aggregates (20-40mm) and fines (<5mm) for road base and backfill.
Chemical Industry: Screens fertilizer granules (2-5mm), pigment powders (50-200 mesh), and catalyst particles, ensuring product uniformity and preventing equipment clogging.
Food Processing: Separates grains (wheat, corn: 2-5mm) and spices (cumin, pepper: 0.5-2mm) in food-grade stainless steel screens, meeting FDA and EU 10/2011 standards.
Municipal Waste: Sorts MSW into recyclables (plastics, paper: 5-50mm) and residual waste, improving material recovery rates in waste-to-energy facilities.
Biomass Processing: Separates wood chips (10-30mm) and biomass pellets (6-10mm) for boiler fuel, ensuring consistent combustion and reducing ash formation.
The Crushing Machine Screen transforms raw crushed materials into market-ready products through precision separation. By combining material science innovation with application-specific design, these screens deliver reliability, efficiency, and cost savings across diverse industrial workflows.
