A textile shredder is a device used to shred various types of waste textiles. It usually has a sturdy shell, sharp knives and an efficient power system, which can break textiles into small pieces or fibers.
| Quantity: | |
|---|---|
The Textile Shredder is a specialized industrial machine designed to address the growing challenge of textile waste management, converting post-consumer and post-industrial textiles into reusable resources. With the global textile industry generating over 92 million tons of waste annually, these shredders play a pivotal role in circular economy practices by transforming garments, carpets, and industrial fabrics into fibers, flakes, or energy feedstock. Equipped with high-torque dual shafts and PLC-controlled automation, modern textile shredders balance high throughput with precision, handling materials ranging from delicate cotton to dense denim and multi-layered carpets. Their ability to reduce textile waste volume by 70-80% makes them indispensable for recycling facilities, garment manufacturers, and waste management companies aiming to minimize landfill dependency.
Parameter | Range/Details |
Material | Frame: Q235B steel; Blades: SKD-11 alloy steel (HRC 58-62) with tungsten carbide coating |
Processing Capacity | 1-5 tons/hour (standard models); up to 10 tons/hour with modular expansion |
Blade Type | Serrated (for fabrics), claw-shaped (for carpets), custom multi-tooth designs for blended textiles |

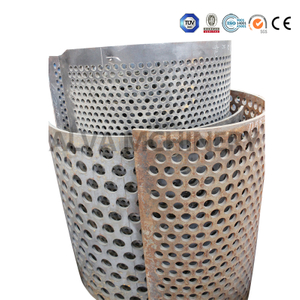

Screen Size | 5mm to 50mm (adjustable via quick-change screen panels); optional 2mm screen for fine fiber production |
Power Supply | 380V/50Hz (3-phase); 220V/60Hz customizable for North American markets; power rating: 15kW–75kW |
Noise Level | ≤85 dB (with sound-dampening enclosure); ≤75 dB in residential-adjacent installations |
Safety Features | Emergency stop buttons, safety interlocks, overload protection, and remote monitoring |

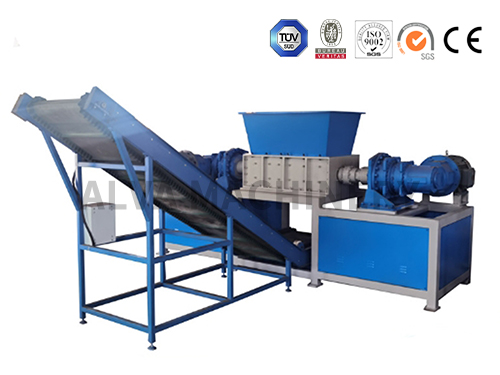

Dual Shaft Design: Counter-rotating shafts with synchronized blade movement ensure 99% material throughput, even for dense items like jeans, blankets, and upholstery.
Hydraulic Pusher: Automated material feeding system with adjustable pressure (0.5-2.0 MPa) prevents jamming, maintaining consistent throughput across varying material densities.
Variable Speed Control: 50-300 RPM adjustable rotor speed allows optimization for different textiles—lower speeds for delicate fibers, higher speeds for tough materials.
PLC Automation: Industrial-grade PLC (Siemens/Schneider) monitors motor current, shaft speed, and material level, automatically adjusting parameters to prevent overloads.
Remote Monitoring: Optional IoT integration enables real-time performance tracking, maintenance alerts, and production reporting via cloud-based platforms.
User-Friendly Interface: 7-inch touchscreen HMI with pre-programmed modes for fabrics, carpets, and mixed textiles simplifies operation for untrained personnel.
Wear-Resistant Blades: SKD-11 steel blades with four reversible cutting edges offer 3,000-5,000 hours of service life; tungsten carbide coating extends life by 50% in abrasive materials.
Heavy-Duty Bearings: Sealed spherical roller bearings (SKF/TIMKEN) with lifetime lubrication resist dust and moisture, ensuring operation in textile recycling’s lint-rich environment.
Reinforced Frame: Welded steel frame with 10mm-20mm thickness withstands vibration and impact, maintaining structural integrity over 10,000+ operating hours.
Low Dust Emission: Sealed shredding chamber with negative-pressure dust collection system reduces airborne particles to <0.1mg/m³, meeting EU ATEX standards.
Energy Efficiency: IE3 premium efficiency motors reduce power consumption by 15-20% compared to standard motors; automatic idle mode cuts energy use during downtime.
Waste Reduction: Achieves 95% material utilization, with minimal residual waste (≤5%) sent to landfill.
Garment Industry: Processes cutting room offcuts (cotton, polyester, blends) and defective garments into 5-20mm fibers for spinning new yarns or stuffing materials.
Carpet Recycling: Shreds post-consumer carpets (nylon, polypropylene) into 10-30mm flakes, which are melted and extruded into new carpet backings or plastic lumber.
RDF Production: Converts non-recyclable textiles (mixed fibers, contaminated fabrics) into 20-50mm refuse-derived fuel (RDF) with calorific value of 15-20 MJ/kg.
Biomass Processing: Shreds natural fibers (cotton, wool, hemp) into 5-10mm pellets for biomass boilers, replacing fossil fuels in heating systems.
Automotive Industry: Processes end-of-life upholstery (leather, synthetic fabrics) and seatbelts into raw materials for automotive insulation or acoustic padding.
Hospitals and Hotels: Securely destroys contaminated textiles (bedding, uniforms) to HIPAA and GDPR standards, ensuring patient and guest data protection.
Baling Waste: Shreds agricultural textile waste (jute bags, greenhouse covers) into compostable fibers, enriching soil organic matter.
Packaging Materials: Processes textile-based packaging (cotton bags, felt wraps) into recyclable fibers for paper production or eco-friendly packaging fillers.
The Textile Shredder embodies sustainability in action, turning textile waste into valuable resources while reducing environmental impact. Its blend of power, precision, and user-centric design makes it a cornerstone of modern recycling operations, supporting industries in their transition to circular economy models.
 |  |  |  |  |  |
 |  |  |  |  |  |
