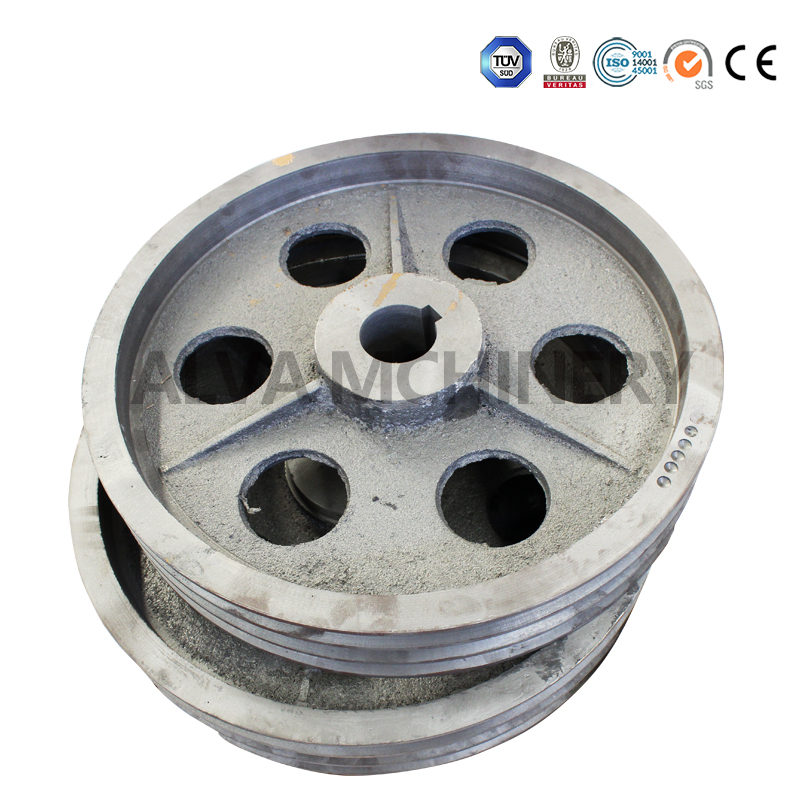

As a high-torque component, it must withstand continuous cyclic loads, variable speed operations, and harsh environmental conditions—from dusty quarries to humid recycling plants. Constructed using HT250 cast iron (a grade renowned for its mechanical properties) and enhanced with a taper-lock bushing design, these pulleys eliminate slippage, reduce vibration, and extend the service life of both the pulley and connected machinery. Their role in maintaining consistent crusher performance cannot be overstated: a well-engineered pulley system can increase overall equipment effectiveness (OEE) by up to 15% by minimizing unplanned downtime.
Parameter | Range/Details |
Material | HT250 cast iron (tensile strength ≥250 MPa); optional 45# steel reinforcement for high-torque applications |
Diameter | Φ500mm to Φ1600mm (customizable in 50mm increments); wall thickness: 15mm–40mm |
Belt Type | Compatible with SPB, SPA, and heavy-duty V-belts (3V, 5V, 8V); multi-groove options for high-power transmission |
Max Torque | Up to 2500 Nm (standard models); 3500 Nm with steel reinforcement |
Speed Range | 500-3000 RPM (continuous); peak speed up to 3500 RPM for short-duration loads |
Surface Treatment | High-temperature phosphating (80-120μm thickness) + electrostatic powder coating for corrosion resistance |
Bushing Size | Taper-lock bushings (1008–5050 series) for shafts of 30mm–150mm diameter |
HT250 Cast Iron: Offers a unique balance of tensile strength (250-350 MPa) and machinability, ensuring precise dimensional accuracy during manufacturing.
Taper-Lock Bushing: Creates a 360° interference fit between pulley and shaft, reducing slippage to less than 0.5% even under maximum torque.
Ribbed Design: Reinforced spoke and hub structures increase rigidity by 40%, preventing deformation under heavy loads.
G6.3 Dynamic Balance Standard: Achieved through computerized balancing machines, ensuring vibration levels below 2.5 mm/s—critical for extending bearing life.
Static Balance Calibration: Each pulley undergoes static balance testing to eliminate eccentricity, reducing motor strain by 10-15%.
Interchangeable Pulleys: Standardized groove profiles and bushing sizes enable cross-compatibility with crushers from leading manufacturers (Metso, Sandvik, Liming).
Heavy-Duty Design: Reinforced hub diameters (1.2x shaft diameter) and thickened sidewalls support high torque in jaw crushers (500-1500 t/h) and cone crushers.
Wide Belt Compatibility: Accommodates 2-8 belts per pulley, with groove spacing optimized to distribute load evenly and prevent belt wear.
Heat Dissipation: Ventilated designs in large models (Φ1200mm+) reduce operating temperatures by 10-15°C, protecting belt integrity.
Self-Aligning Bearings: Integrated with pulley hubs, these bearings compensate for minor shaft misalignment, extending lubrication intervals to 2,000 operating hours.
Corrosion Resistance: Phosphated surface forms a protective layer against moisture and chemicals, suitable for coastal or mining environments with high humidity.
Visual Inspection Points: Clear marking of wear indicators (groove depth, bushing tightness) simplifies routine maintenance checks.
Primary Crushers: Transmits power to jaw crushers (PE 600×900 to PE 1200×1500) and gyratory crushers, handling ore feed sizes up to 1000mm.
Conveyor Systems: Drives belt conveyors in crushing plants, ensuring steady material flow between primary, secondary, and tertiary crushing stages.
Impact Crushers: Powers the rotor in vertical shaft impact (VSI) crushers (VSI5X, VSI6X series) for producing high-quality sand with cubical particle shape.
Recycling Plants: Drives shredders and granulators processing concrete rubble and asphalt waste, with variable speed options for different material densities.
Cement Plants: Transmits power to roller presses (HRM series) and ball mills, crushing clinker and raw meal into fine powders for cement production.
Metal Processing: Drives crushers in scrap metal recycling facilities, breaking down automobile bodies and steel scraps into manageable sizes.
Biomass Processing: Powers hammermills for producing wood chips (5-30mm) and pellets, ensuring consistent particle size for boiler efficiency.
Waste-to-Energy: Drives slow-speed shredders processing municipal solid waste (MSW), with torque-limiting features to handle uncrushable contaminants.
With its robust construction, precision engineering, and adaptability, the Crushing Machinery Pulley ensures uninterrupted power transmission in the most demanding industrial settings. By minimizing energy loss and reducing maintenance needs, it plays a pivotal role in optimizing crusher performance and lowering total operational costs.
