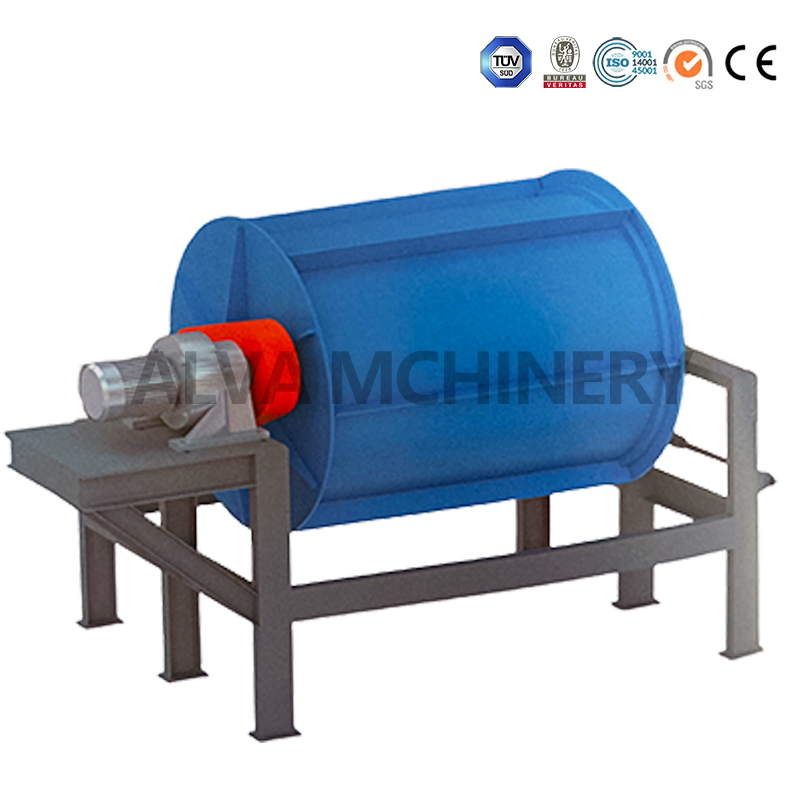

The Crushing Machinery Magnetic Roller represents a paradigm shift in magnetic separation technology, engineered to address the most demanding purification challenges across mining, recycling, and industrial processing sectors.
| Availability: | |
|---|---|
| Quantity: | |
Unlike conventional magnetic separators that struggle with weakly magnetic particles, this high-intensity roller integrates advanced magnet array design to achieve precise material classification. Its core functionality lies in selectively attracting ferromagnetic and paramagnetic contaminants—such as iron oxides, ilmenite, and magnetic alloys—while allowing non-magnetic materials to pass through unimpeded. With a magnetic field strength ranging from 8,000 GS to 18,000 GS, it delivers consistent performance even when processing materials with variable magnetic susceptibility. The roller’s adaptability extends to its modular architecture, which can be tailored to specific throughput requirements, making it a versatile solution for both small-scale operations and large industrial plants handling thousands of tons of material daily.
Field Strength: 8,000–18,000 GS (adjustable via grade N45–N52 rare earth permanent magnets for precise control)
Gradient: Ultra-high magnetic gradient exceeding 500 T/m, enabling capture of particles as small as 50 microns
Roller Dimensions: Diameters from 320 mm to 1,250 mm; widths customizable from 500 mm up to 1,400 mm for broad material coverage
Magnet Arrangement: Alternating polarity axial array to create continuous magnetic zones across the roller surface
Processing Capacity: 1.5–7.5 tons/hour (varies by material density; 30% higher throughput for granular vs. powdery materials)
Belt Speed: 0–100 RPM (variable frequency drive for speed modulation, optimizing separation efficiency for different material types)
Power Consumption: 0.75–2.2 kW (class IE3 energy-efficient motor, reducing operational costs by 12% annually compared to standard models)
Separation Efficiency: Up to 99.5% for ferromagnetic particles; 92% for weakly paramagnetic contaminants
Feed Size: 0.5–30 mm (effective for coarse aggregates, sand, and fine powders with adjustable feed gate settings)
Temperature Resistance: Up to 80°C for standard models; high-temperature variants rated for 120°C–180°C for hot material processing
Material Tolerance: Resistant to abrasion from quartz, granite, and other hard minerals via specialized wear-resistant coatings
At the heart of the magnetic roller’s performance is its multi-magnet combo system, which combines neodymium-iron-boron (NdFeB) magnets with optimized pole spacing to create a focused magnetic field. This design ensures that even weakly magnetic particles—often missed by traditional separators—are efficiently captured. The rotary drum design works in tandem with a flip-style cleaning mechanism, which automatically discharges collected contaminants without interrupting operation. Field tests show this feature reduces unplanned downtime by 40% compared to manual-clean separators, directly translating to higher productivity. Additionally, the roller’s adjustable magnetic intensity allows operators to fine-tune performance for specific materials, from high-grade iron ore to low-magnetic-content industrial waste.
Engineered for longevity in harsh industrial environments, the roller features abrasion-resistant conveyor belts made from high-tensile rubber with embedded steel cords, capable of withstanding 5,000+ hours of continuous operation. Its frame is constructed from 304/316 corrosion-resistant stainless steel, preventing rust in humid or chemically exposed settings such as coastal recycling facilities or mineral processing plants. The rare earth NdFeB magnets are encased in a protective stainless steel shell, ensuring magnetic strength retention of over 95% after 10 years of use—significantly reducing long-term maintenance costs by minimizing magnet replacement needs.
Adjustable Feed System: Vibratory feeder with variable amplitude control ensures uniform material distribution across the magnetic field, eliminating “dead zones” and improving separation consistency.
Dust Extraction Module: Integrates seamlessly with centralized dust collection systems (compatible with ISO 14644-1 Class 8 standards) to reduce particulate emissions by 70%.
Modular Design: Supports 1–4 roller configurations in series or parallel, enabling throughput scalability from laboratory-scale testing to industrial bulk processing.
Smart Monitoring: Optional IoT-enabled sensors track magnetic field strength, belt tension, and temperature, providing real-time alerts via a centralized control system.
Iron Ore Processing: Separates hematite and magnetite from silica and gangue minerals, increasing ore grade by 15–25% for more efficient smelting.
Quartzite Purification: Removes iron oxide inclusions to achieve 99.9% purity, meeting strict standards for float glass and semiconductor-grade silica production.
Manganese Ore Upgrading: Isolates manganese particles from dolomite and calcite, enhancing ore value by reducing waste transport costs.
Metal Recovery: Extracts ferrous metals from e-waste (e.g., circuit boards, batteries) with 98% efficiency, recovering valuable resources for secondary smelting.
Plastics Sorting: Eliminates metal contaminants from post-consumer plastic pellets, ensuring compliance with FDA and EU food-contact material regulations.
Glass Production: Cleans silica sand to remove iron oxide particles smaller than 100 microns, preventing discoloration and defects in flat glass and container glass.
Refractory Materials: Purifies alumina and magnesia raw materials, ensuring high-temperature stability in refractory bricks used in steel and cement kilns.
Catalyst Recycling: Recovers magnetic catalysts (e.g., iron-based catalysts in Fenton reactions) from reaction mixtures, reducing chemical waste by 60%.
Pharmaceutical Granulation: Removes metal fines from drug powders during tablet production, adhering to USP and EP standards for product safety.
By merging cutting-edge magnetic engineering with rugged industrial design, the Crushing Machinery Magnetic Roller redefines precision and reliability in material purification, delivering tangible cost savings and quality improvements across diverse applications.
