Vertical Metal Crusher for Thin Steel, Color Steel Tile & Paint Bucket Recycling
| Quantity: | |
|---|---|
Alva Machinery
Alva Machinery Light Gauge Metal Crusher is a compact vertical secondary crushing equipment specially designed for thin and light metal waste. It adopts multi-layer hammer mill structure, which can efficiently crush various thin metal materials into uniform particles with low investment and operating cost. This machine is widely used in small and medium-sized scrap metal recycling stations, manufacturing workshops and waste packaging processing sites, with processing capacity ranging from 0.3t/h to 8t/h.
Matching Process Note: This machine can directly process all kinds of light gauge metals and compressed metal bales without pre-shredding, which greatly saves equipment investment and production space.
Our double shaft metal scrap shredder can process various ferrous and non-ferrous metal wastes:
Note: Customized configurations are available according to your specific material and output requirements.
Model | Feed Opening Size (mm) | Motor Power (kW) | Hammer Quantity | Processing Capacity (t/h) | Overall Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|---|---|
ALVA-VCM-V600 | 600×500 | 37 | 36 | 0.3-1.5 | 1800×1500×2800 | 4200 |
ALVA-VCM-V800 | 800×600 | 55 | 48 | 1.5-3.5 | 2200×1800×3200 | 6800 |
ALVA-VCM-V1000 | 1000×700 | 75 | 60 | 3.5-6 | 2600×2200×3600 | 9500 |
ALVA-VCM-V1200 | 1200×800 | 110 | 72 | 6-8 | 3000×2600×4000 | 13000 |

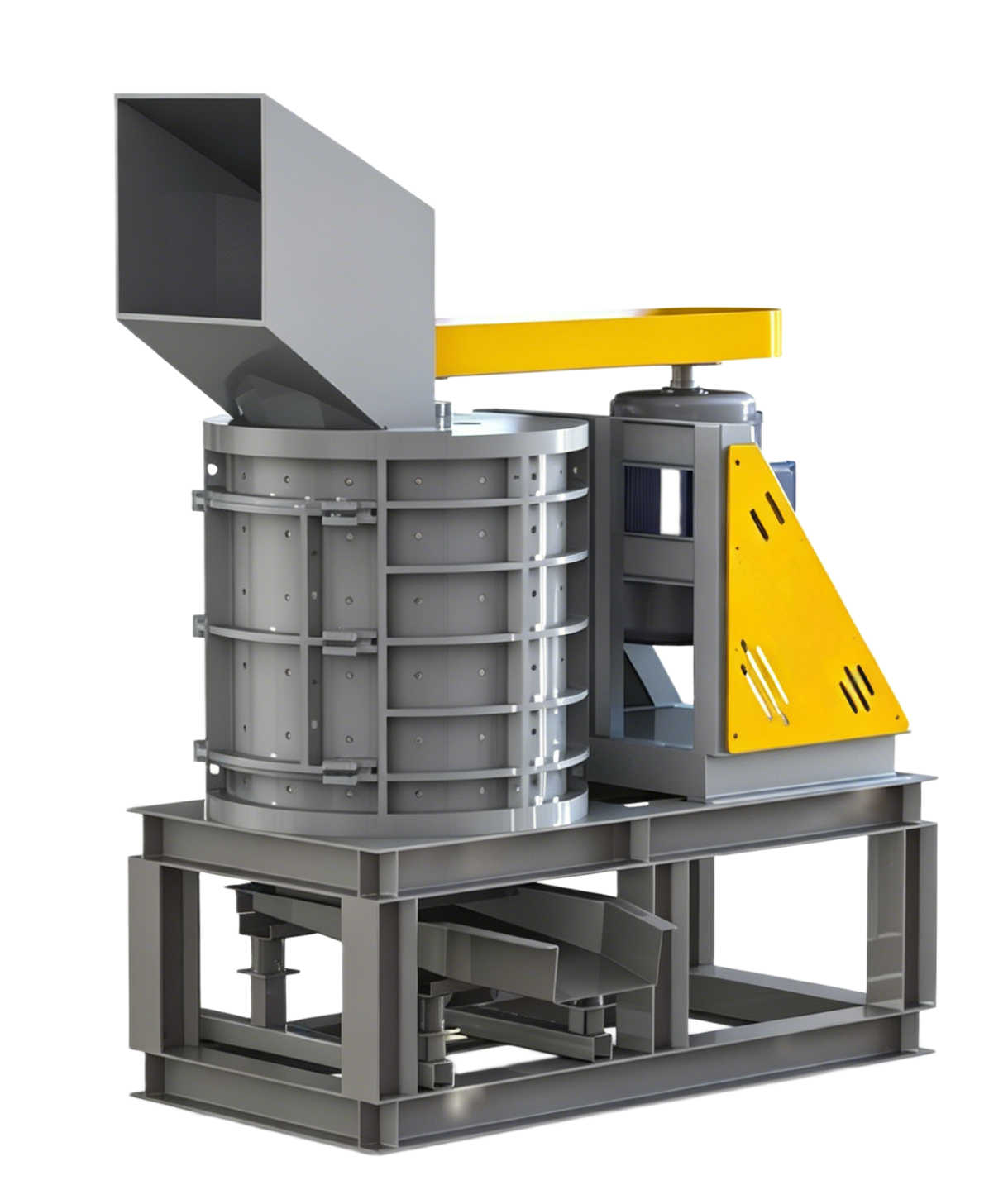

Vertical Compact Structure & Small Footprint
Vertical cylindrical design, covering only 40% of the area of horizontal crushers of the same capacity
No need for large foundation construction, can be installed and put into use quickly
Suitable for factories and recycling stations with limited site space

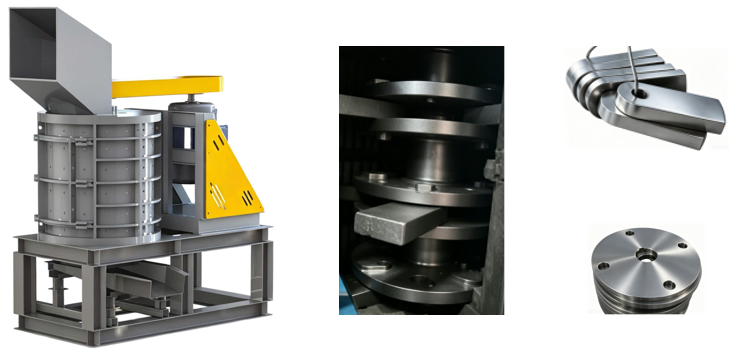

High Efficiency Hammer Mill System
Multi-layer tower rotor with spiral arranged hammer blades, 360° full coverage crushing
42CrMo alloy steel hammers forged from train wheel hubs, strong impact resistance
Hammers can be turned over for use, effectively extending service life
Low Investment & Easy Maintenance
Simple structure, few wearing parts, low daily maintenance cost
Screen mesh aperture is adjustable (3-20mm), can control the finished product size according to demand
Openable body design, convenient for internal inspection and parts replacement
Stable Operation & Environmental Protection
Equipped with vibration damping feet, low noise and small vibration during operation
Fully sealed crushing chamber with dust removal interface, effectively controlling dust spillage
PLC simple control system, one-button start, no need for professional operators
