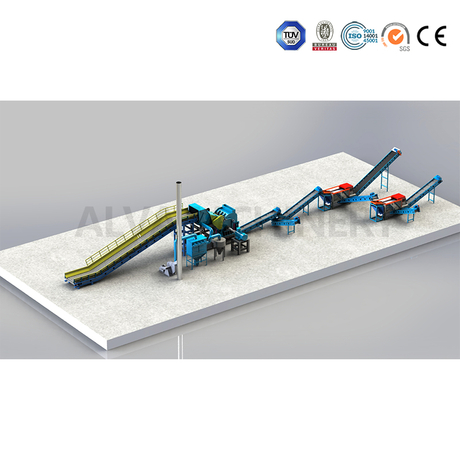

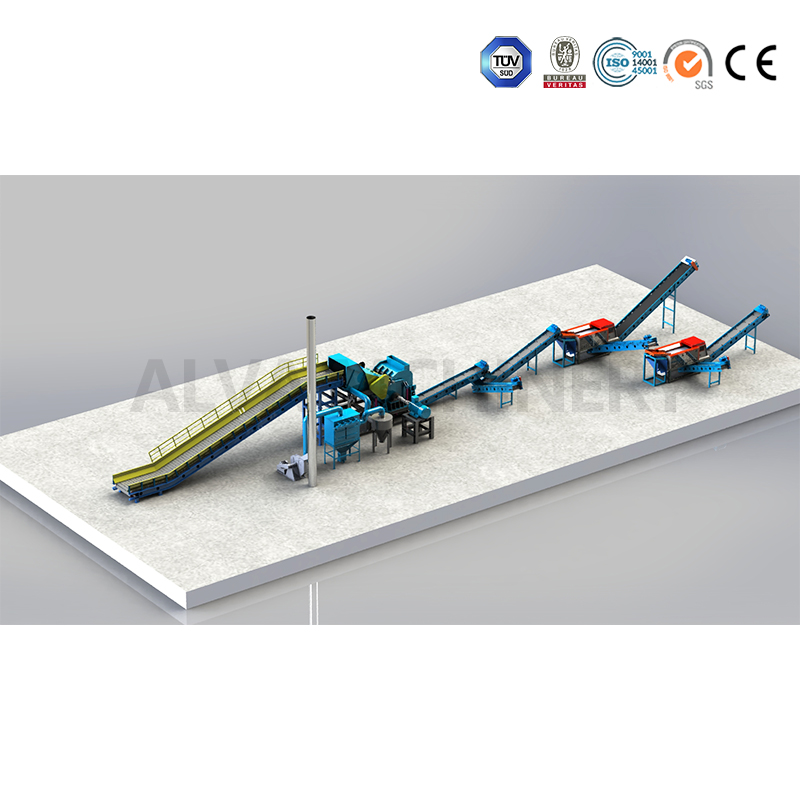

In high-volume recycling and metal processing, the primary bottleneck is rarely the crushing equipment itself. The true limitation is the inability of the material handling system to maintain a consistent, jam-free feed and discharge rate. When dealing with heavy, abrasive, or bulky materials, a poorly designed material flow brings the entire facility to a standstill. The operational costs of poor conveyor layouts manifest quickly. Erratic material feeding causes bridging in the hopper, uneven wear on shredder blades, severe motor overloads, and forced downtime. Mismatched infeed or discharge heights, or the selection of incorrect belt types, lead to catastrophic system failures in a high-capacity Scrap Metal Crusher setup. Operators find themselves manually intervening to clear jams, compromising safety and destroying throughput. You must engineer a cohesive conveyor layout encompassing infeed metering, impact resistance, and automated discharge. This system must be specifically matched to the throughput capacity of the primary processing equipment to ensure continuous, automated operation.
Throughput Synchronization: Continuous operation requires the conveyor system's variable feed rate to perfectly match the processing capacity of the scrap metal crusher, preventing both starvation and overfeeding.
Material-Specific Conveyance: Conveyor selection (e.g., steel hinge, walking floor, vibratory, magnetic) must be dictated by the specific scrap profile, from heavy steel turnings to lightweight aluminum.
Spatial Geometry: Optimal layouts rely on precise calculations of infeed incline angles, low-profile elevation transitions, and drop zones to prevent material rollback and back-ups.
Automated Integration: Modern layouts utilize Variable Frequency Drives (VFDs) and load-sensing automation to dynamically adjust conveyor speeds based on the crusher’s real-time amp draw.
A successful layout requires zero manual intervention during operation. It delivers consistent volumetric feeding, ensures the safe containment of flying debris, and provides seamless integration with downstream sorting equipment. When the material handling system works in harmony with the processing equipment, the entire operation runs smoothly. A metered, continuous feed reduces shock loads on the rotor and bearings. This directly extends the maintenance intervals for wear parts like hammers, grates, and liner plates. Sudden surges of heavy material cause massive spikes in power draw and mechanical stress. These spikes degrade the machine over time and lead to premature component failure. Controlled feeding ensures the equipment operates within its optimal design parameters, maximizing throughput while minimizing wear.
Common layout failures often occur at the discharge point. Inadequate discharge clearance causes processed material to back up directly into the crushing chamber. This leads to severe friction fires or catastrophic rotor jamming, especially when operating a vertical metal crusher. Proper clearance and take-away capacity are non-negotiable for continuous operation. If the discharge belt cannot remove material faster than the shredder produces it, the system will choke. You must design the discharge zone to handle surge volumes and the natural expansion of shredded metal.
We see many facilities struggle because they treat conveyors as an afterthought. They install a massive shredder and feed it with an undersized, standard rubber belt. The belt rips within a week. The structural supports buckle under the impact of dropped engine blocks. The lack of variable speed control means the shredder is either running empty or choking on a massive surge. Engineering the layout requires a deep understanding of material behavior, structural dynamics, and automated control systems.
Handling high-density, abrasive, and sharp-edged materials requires robust engineering. The infeed system must withstand the constant impact of heavy structural steel, white goods, and baled scrap without buckling or tearing. A scrap steel crusher necessitates steel hinge belts, heavy-duty chain edge conveyors, and reinforced impact beds. These components absorb the shock of dropped materials, protecting the underlying structure and ensuring the belt continues to track properly under extreme loads. Standard idler rollers will shatter under these conditions. You need solid steel impact cradles and oversized bearings to handle the dynamic forces.
The pitch of the steel hinge belt is a critical factor. A 6-inch pitch might work for light sheet metal, but heavy structural scrap requires a 9-inch or 12-inch pitch belt with thick, abrasion-resistant steel plates. The side wings must overlap perfectly to prevent sharp edges from catching and tearing the belt apart. Skirtboards must be designed with heavy-duty rubber that seals against the belt without causing excessive drag.
Feeding an aluminum scrap crusher presents unique challenges. The primary issue is the bridging of bulky extrusions or Used Beverage Cans (UBCs) in the hopper. These materials are voluminous but lightweight, requiring specific handling techniques to maintain a steady feed. Operators should evaluate the use of slider bed conveyors with high sidewalls or specialized cleated belts. These features maintain grip on lightweight, high-volume materials on steep inclines, preventing rollback and ensuring a steady feed into the cutting chamber.
When dealing with UBCs, the material tends to flow like a fluid until it suddenly locks together and bridges. Agitators in the hopper or vibratory feed pans can break these bridges. The conveyor itself needs high cleats to scoop the material and carry it up the incline. If the incline is too steep, the aluminum cans will simply tumble backward over the cleats, reducing feed rates and causing spillage.
The layout requirements for an electric motor rotor crusher differ significantly from standard scrap operations. These components are extremely dense and contain unyielding copper and steel composites. Dropping a 50-pound electric motor onto a standard belt will destroy it instantly. This application requires heavy-duty, low-speed, high-torque feed mechanisms. Crawler-type feeders, walking floors, or heavy apron feeders are necessary because they handle the dense material without risking belt puncture or mechanical failure.
Apron feeders use heavy overlapping steel pans bolted to crawler tractor chains. They are virtually indestructible and provide a positive, metered feed of heavy components. The drive systems for these feeders must be oversized, utilizing high-torque planetary gearboxes to overcome the massive static friction of a fully loaded hopper.
Small, sticky, or thin-gauge lamination scrap from stamping presses requires unique handling. Traditional hinge belts often fail here because ultra-thin metal fragments migrate into the belt joints, causing jams and premature wear. The fragments act like razor blades, cutting through pins and rollers. Specialized conveyor geometries are needed. Pivot belt conveyors or systems designed specifically to prevent small fragments from entering the mechanical linkages ensure continuous operation without constant maintenance interruptions.
Interlocking steel plates prevent sharp scrap from piercing the belt, ensuring continuous uptime. The pitch size of the belt directly correlates to its load capacity. Larger pitches are required for heavier, bulkier scrap. This design is foundational for primary infeed lines. The chain edge provides the driving force, pulling the heavy steel plates along the track. Regular lubrication of the chain is mandatory to prevent seizing in dusty environments.
Walking floor systems handle massive bulk loads of unsorted scrap steel or aluminum. They act as high-capacity, live-bottom hoppers that meter heavy, mixed scrap into the primary feeder without bridging. This allows for bulk loading by wheel loaders while maintaining a controlled feed rate. The reciprocating slats move sequentially to convey the material forward. They are excellent for receiving large batches of material and smoothing out the flow to the downstream equipment.
Vibratory feeders act as a buffer, leveling out surge loads and aligning long pieces of scrap before they enter the cutting chamber of a metal crusher. This alignment prevents jamming and ensures the blades engage the material efficiently. They use eccentric weights or electromagnetic drives to create a throwing motion that moves the material forward. They are highly effective for metering heavy, abrasive materials over short distances.
Conveyor Type | Best Suited Material | Primary Advantage | Limitation |
|---|---|---|---|
Steel Hinge Belt | Heavy structural steel, white goods | High impact and puncture resistance | Susceptible to jamming from thin-gauge scrap |
Walking Floor | Bulk mixed scrap, baled materials | Handles massive surge loads, prevents bridging | High initial installation cost |
Vibratory Feeder | Abrasive turnings, heavy castings | Excellent metering and material alignment | Limited to short conveying distances |
Pivot Belt | Thin-gauge lamination, sticky scrap | Prevents material migration into joints | Lower impact resistance than heavy apron feeders |
The integration of belted magnetic conveyors, magnetic drums, or suspended cross-belt magnets on the discharge line immediately separates ferrous from non-ferrous materials. This prevents downstream contamination and automates the scrap sorting process, adding significant value to the final product. Cross-belt magnets hang over the discharge conveyor, pulling ferrous metal up and out of the material stream. Magnetic head pulleys hold ferrous material to the belt as it rounds the discharge point, allowing non-ferrous material to drop in a natural trajectory.
Screw and drag conveyors are effective for managing wet or dry flowable chips and turnings. Pneumatic conveyors are ideal for plant layouts requiring the routing of lightweight, processed scrap over long distances or in overhead configurations, saving valuable floor space. Drag chain conveyors use paddles pulled by a chain through a trough, dragging the material along. They are excellent for handling abrasive fines that would destroy a standard belt.
The geometric constraints of feeding a vertical unit differ from a horizontal shaft impactor. Vertical units often require higher infeed elevations, necessitating longer conveyors or steeper inclines. Maximum incline angles vary by belt type to prevent material rollback. Smooth belts typically fail past 15 degrees, necessitating cleats or buckets. Space-constrained layouts, such as low-profile 3-foot infeed to 4-foot discharge configurations, must interface directly with stamping presses or low-clearance discharge chutes.
When calculating the incline, you must consider the friction coefficient of the specific scrap. Oily steel turnings will slide back down a steel hinge belt at a much lower angle than dry, jagged structural scrap. If facility space forces a steep incline, you must specify tall cleats and overlapping side wings to create pockets that carry the material upward without spillage.
The engineering requirement for the discharge conveyor is to have a higher volumetric capacity than the infeed. We typically design for 1.5x to 2.0x the infeed capacity. This accounts for the "fluffing" or expansion of crushed metal as it exits the machine. Shredded steel takes up significantly more volume than dense, baled scrap. Drop height clearance is critical. There must be enough space to accommodate surge volumes without burying the discharge belt, which leads to immediate backups and potential equipment damage.
Calculate the maximum volumetric output of the shredder in cubic yards per hour.
Apply a fluffing multiplier based on the material type (e.g., 1.5 for steel, 2.0 for aluminum).
Size the discharge belt width and speed to handle the fluffed volume at 75% belt capacity.
Ensure a minimum vertical drop of 24 to 36 inches from the shredder grate to the discharge belt to prevent bridging.
Infeed hoppers act as material buffers, allowing batch loading by cranes or loaders while providing a continuous feed to the belt. Hopper design, including wall angles and liners, prevents material bridging and ensures a continuous, gravity-assisted feed onto the primary conveyor. The valley angles of the hopper must be steep enough to promote flow. We line hoppers with AR400 or AR500 steel plates to withstand the impact and abrasion of heavy scrap.
Facilities face trade-offs between limited floor space, which requires steep, potentially problematic inclines, and the ideal, gradual incline that requires a longer conveyor footprint. Careful planning balances these constraints without compromising material flow. A steep incline saves floor space but increases the risk of material rollback and requires more complex, expensive cleated belts. A gradual incline uses more space but allows for simpler, more reliable belt designs.
Operators must contrast the high initial cost of heavy-duty steel apron and walking floor feeders against the recurring replacement costs and downtime associated with cheaper, standard rubber belts. In a harsh scrap environment, heavy-duty equipment provides a better return on investment. A cheap rubber belt will tear within weeks when hit by sharp steel, leading to constant patching, replacement, and lost production time. Heavy steel apron feeders run for years with minimal maintenance.
Designing modular layouts allows for future capacity increases or the integration of additional automated separation equipment, such as eddy currents or optical sorters. This future-proofing prevents the need for a complete system teardown when upgrading the facility. Leave physical space in the layout for future magnetic separators or screening decks. Design transfer points with bolted chutes rather than welded assemblies to allow for easy modifications.
Belt jamming and sidewall damage from sharp, migrating scrap is a constant risk. Mitigation involves specifying overlapping side wings, Abrasion Resistant (AR) steel liners, and proper skirting design to keep material contained. The skirting must be adjusted regularly to maintain a tight seal against the belt. If scrap gets between the skirtboard and the belt, it will slice the belt like a knife.
Motor overload on either the conveyor or the crusher due to surge feeding causes significant downtime. Implementing closed-loop automation utilizing VFDs allows the conveyor to automatically slow or pause if the crusher's motor amp draw spikes. The PLC monitors the shredder's main drive motor. When the amps reach a predetermined setpoint, the PLC sends a signal to the conveyor VFD to reduce speed. If the amps continue to climb, the conveyor stops completely until the shredder clears the surge, then automatically resumes feeding.
Structural fatigue from continuous heavy impact is another major concern. Utilizing reinforced impact cradles at loading zones rather than standard idler rollers, and ensuring structural supports are engineered for dynamic loads, mitigates this risk. The steel framework supporting the conveyor must be cross-braced and anchored securely to the concrete foundation to absorb the vibrations and shock loads generated by the shredding process.
A scrap processing operation relies entirely on its material handling capabilities. Treating conveyors as an afterthought guarantees operational bottlenecks and reduced profitability. To optimize your system, audit your specific scrap material profile to determine the necessary conveyor type. Measure your spatial constraints carefully to calculate appropriate incline angles and drop clearances. Ensure your conveyor's volumetric capacity and automation features match the maximum output of your processing equipment.
Audit your incoming scrap profile to select the correct belt material and pitch size.
Measure facility constraints to calculate safe incline angles and ensure adequate discharge drop height.
Install VFDs and integrate them with the shredder's PLC for automated load-sensing feed control.
Upgrade loading zones with heavy-duty impact cradles and AR steel liners to prevent structural damage.
A: Steel hinge belts, walking floors, and heavy apron feeders are best due to their puncture resistance and ability to handle high-impact loads from heavy structural steel.
A: Use cleated belts, calculate proper incline angles, and match the belt type to the friction coefficient of the specific scrap being processed.
A: Jamming is likely caused by surge feeding from an unmetered conveyor and the lack of automated VFD communication between the conveyor and the crusher.
A: Sufficient vertical drop is necessary to prevent material buildup, usually requiring custom sub-structures or pit-mounted discharge conveyors to handle the fluffed material volume.
A: Heavy-duty magnetic drums or overbelt magnets are used for primary separation, while lighter belted magnetic conveyors are better suited for secondary chip or fines separation.
A: Ensure smooth transition points with appropriate drop heights and utilize central PLC control systems to synchronize the speeds of different conveyor sections automatically.
