ALVA-1000 PVC Grinding Machine

The Model 1000 PVC Pulverizer is a high-capacity powder processing machine designed for large-scale plastics recycling plants, large chemical companies, and renewable resource parks. It is primarily used for the intensive grinding and recycling of bulk plastics such as PVC, PE, and PP. With its extra-large grinding disc (1000mm diameter) and high-power drive system, this machine can process large waste materials such as PVC pipes, wide plastic-steel profiles, and thick-walled plastic sheets. It is also compatible with pulverizing non-plastic materials such as rubber, wood, and leather, enabling multi-material applications.

Availability:

Quantity:



Inquire Add to Basket

PVC crusher PVC grinder PVC pulverizer PVC grinding equipment PVC crushing and grinding machine PVC powder preparation machine PVC waste pulverizer PVC plastic pulverizer

Product Advantage

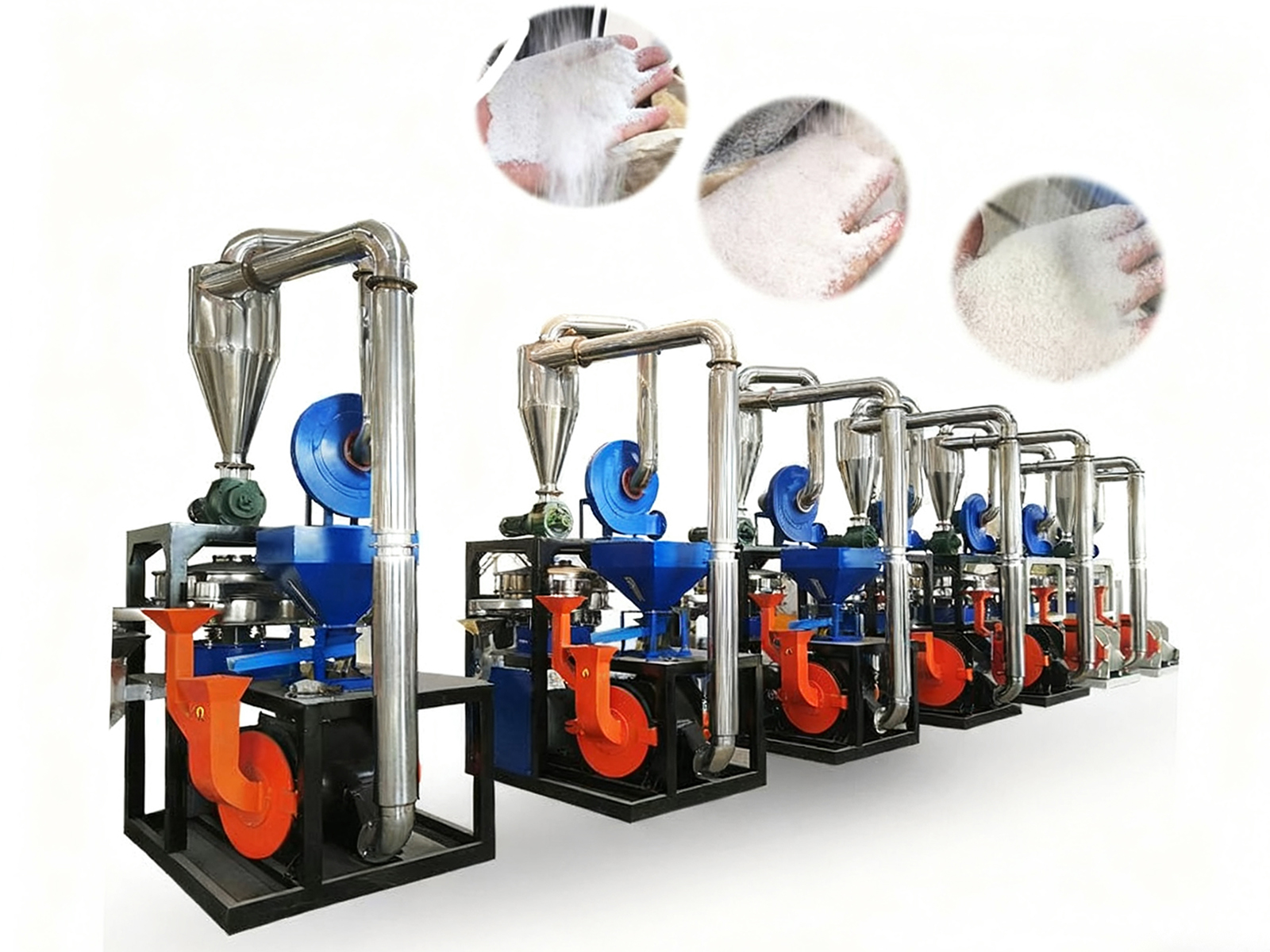

/ Product display /

/ Product Usage /

The Model 1000 PVC Pulverizer is a high-capacity powder processing machine designed for large-scale plastics recycling plants, large chemical companies, and renewable resource parks. It is primarily used for the intensive grinding and recycling of bulk plastics such as PVC, PE, and PP. With its extra-large grinding disc (1000mm diameter) and high-power drive system, this machine can process large waste materials such as PVC pipes,wide plastic-steel profiles, and thick-walled plastic sheets. It is also compatible with pulverizing non-plastic materials such as rubber, wood, and leather, enabling multi-material applications.

The machine boasts a production capacity of 800-1500 kg/h and is equipped with an intelligent control system that optimizes feed rate, grinding speed, and dust removal efficiency, ensuring consistent powder quality during continuous operation. Its reinforced rotor and wear-resistant liner significantly enhance its handling capacity for high-hardness and high-impurity waste. It serves a wide range of applications in waste plastic centralized processing centers, front-end powder preparation at plastic masterbatch production bases, and plastic recycling lines at municipal waste sorting centers.

/ Crushing Range /

/ Product advantages /

01

Precise Classification and High Powder Purity:The equipment's grading device (as evidenced by the complex screening structure in the image) precisely grades and screens the ground PVC powder, effectively separating powders of varying particle sizes and removing impurities. This ensures the high purity of the output powder, meeting the stringent requirements of downstream production processes, such as the raw material preparation for high-end PVC products.

2222

02

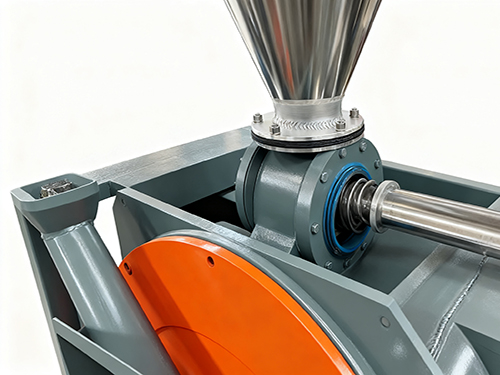

Excellent Heat Dissipation and Reliable Operation: The equipment's structural layout (including appropriate spacing between components and heat dissipation design for power components) demonstrates excellent heat dissipation. This allows for rapid heat dissipation during long, high-speed grinding operations, preventing equipment failures caused by overheating. This ensures reliable and stable operation and reduces the need for maintenance downtime.

03

Smooth Feeding and Excellent Anti-clogging:

Smooth Feeding and Excellent Anti-clogging

The rational design of the feed inlet and associated conveying mechanisms ensures smooth entry of PVC material into the grinding chamber. During the grinding process, the unique chamber design effectively prevents material blockage, ensuring a continuous grinding process, improving overall production efficiency, and reducing cleanup time and material waste caused by blockages.

04

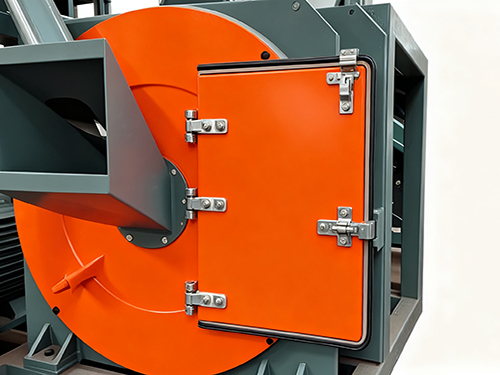

Excellent Sealing Performance and Low Powder Leakage:The equipment's excellent sealing design at all joints (such as pipe connections and the grinding chamber cover) effectively prevents powder leakage during the grinding process. This not only maintains a clean production environment and reduces dust pollution, but also reduces material loss, improves raw material utilization, and saves production costs for enterprises.

/ Technical Parameter /

Mode	Type 400	Type 600	Type 800	Type 1000
Cutter diameter	400mm	600mm	800mm	1000mm
Number of cutter discs	18 piece	28 piece	36 piece	42 piece
Motor power	18 - 30KW	45 - 55KW	75 - 90KW	90 - 110KW
Speed	3900(r/min)	3600(r/min)	2800(r/min)	2600(r/min)
Suction fan	2.2 - 3KW	4.5KW	5.5 - 11KW	7.5 - 15KW
Fan off	0.75(KW)	1.1(KW)	1.5(KW)	1.5(KW)
Vibrating screen	0.55KW600	1.1KW1000	1.1KW1200	1.5KW1500
Mill water	circulating water	circulating water	circulating water	circulating water
Grinding capacity	80 - 150(Kg/h)	200 - 400(Kg/h)	600 - 1000(Kg/h)	800 - 1500(Kg/h)
Installation dimensions	220013003000(mm)	300018003500(mm)	320018003700(mm)	350018003800(mm)

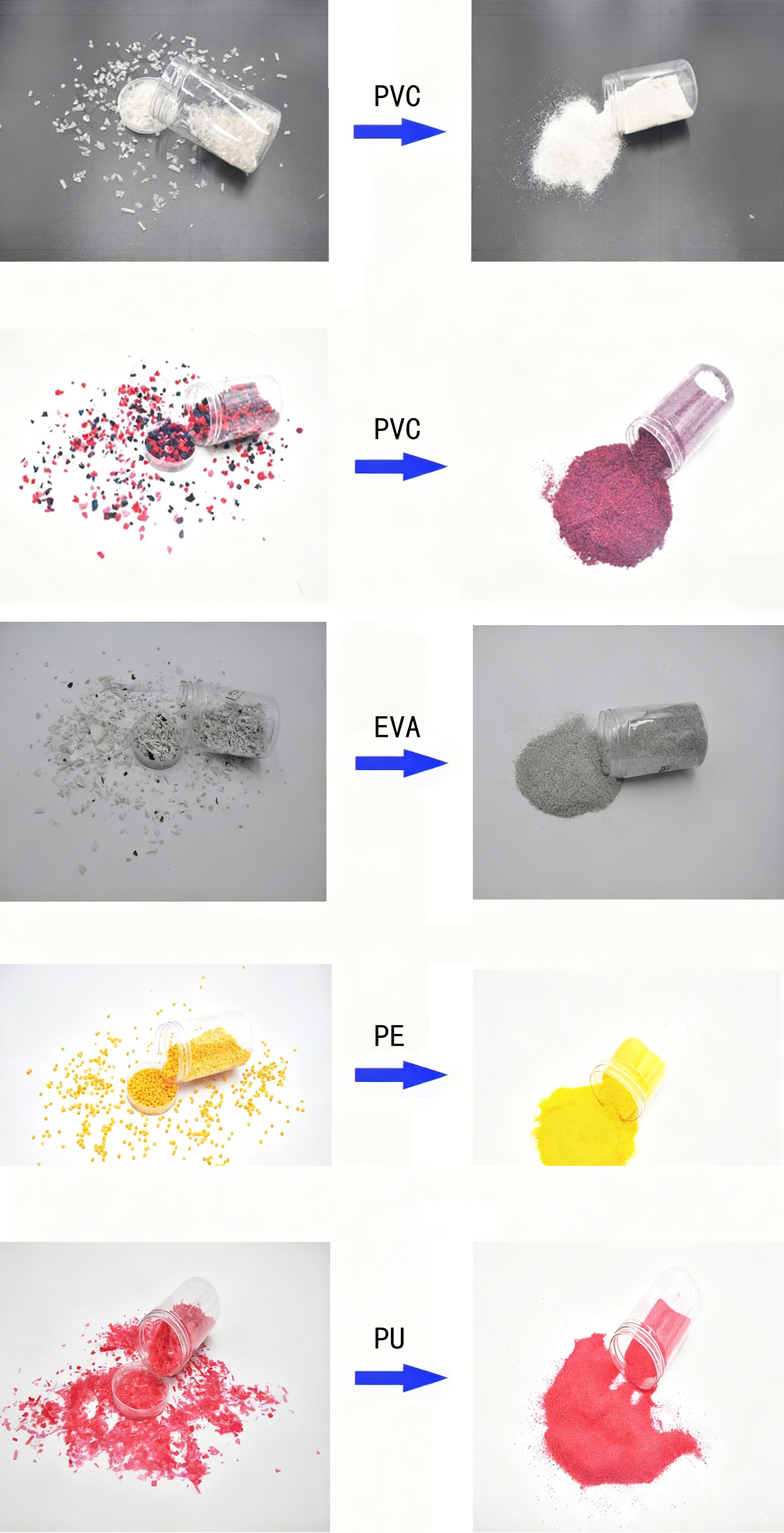

/Product Application Range/

PVC

PU

EVA

SBS

PE

PA

/ Honor Display /

/ Customer Communication /

/ Packaging & Shipping /

/ Company Introduction /

公司门口1

/ FAQ /

Q1: Do you customize products for customers?

A1: Yes, we can customize and produce crushing machinery according to customers' requirements or drawings.

Q2: How about the quality of your products?

A2: We can provide you with samples for quality inspection. If you order, we guarantee the same quality as the sample. If there is a quality problem, we can sign an agreement and let our company perform the duties.

Q3: How can we trust your factory?

A3: We suggest that you come to our factory to see the goods, verify the real situation of the products, and learn more about our factory.

Q4: Why do prices change so often?

A4: The price depends on the latest prices of raw materials.

Q5: What about contract signing?

A5: If you are satisfied with the product and our service, you can sign a contract with us, pay a deposit, and then we will produce the machine as soon as possible. If you are far away, we can sign the contract by fax. We will ensure the quality of products and accessories complete.

Q6: What about delivery?

A6: When the product is ready, it will be delivered to you after full payment. Technical guidance will be provided.
