You see the principle of eddy current in action when a magnetic field moves near a conductive metal. This movement causes electric currents to swirl inside the metal. When you use an eddy current separator, these swirling currents create a force that pushes non-ferrous metals away from other materials.
Eddy current separators operate on two fundamental principles of electromagnetism. When conductive non-ferrous metals pass through a rapidly changing magnetic field, electric currents form inside the metal in circular patterns. These circular currents, called eddy currents, create their own magnetic field that opposes the original field that created them. This results in a repulsive force that effectively separates non-ferrous metals from other materials.
Eddy current separators use powerful magnetic fields to separate non-ferrous metals from waste, making recycling more efficient.
These machines rely on electromagnetic induction, creating swirling electric currents that push metals away from other materials.
Using an eddy current separator helps reduce landfill waste and promotes resource recovery, benefiting the environment.
Regular maintenance of the conveyor belt and rotor is essential for optimal performance and longevity of the separator.
Eddy current separators can process large amounts of material quickly, increasing the value of recycled metals and lowering labor costs.

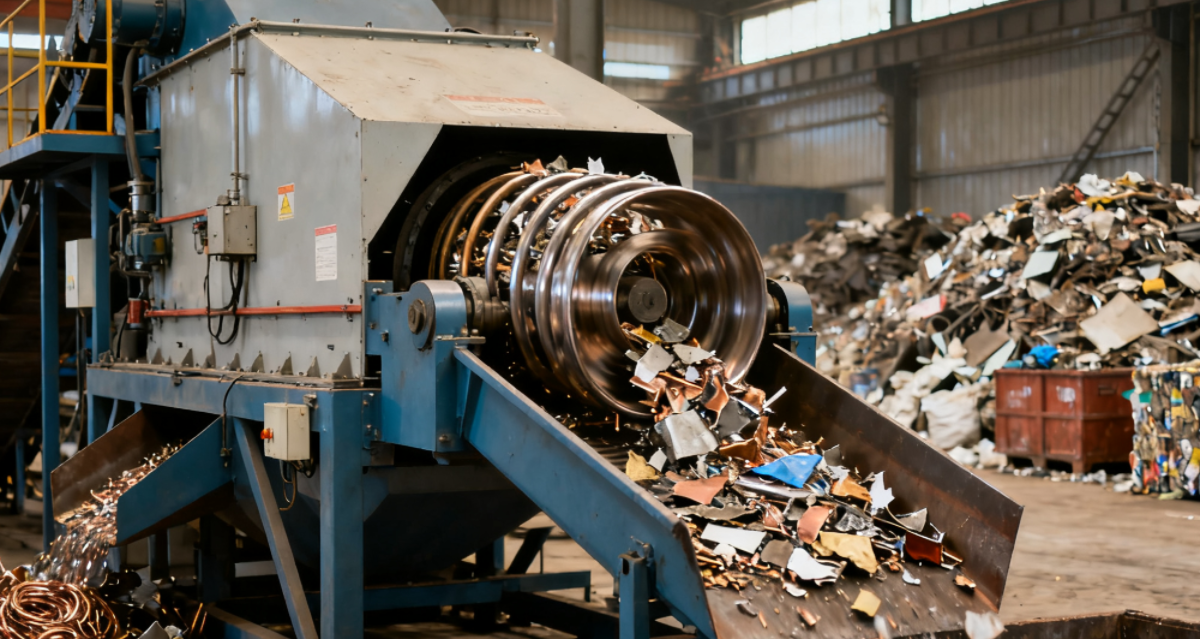

An eddy current separator is a specialized machine that helps you recover valuable metals from mixed waste. You will often find this equipment in recycling plants and waste management facilities. The main function of an eddy current separator is to separate non-ferrous metals from other materials. Non-ferrous metals do not contain iron, so they do not stick to magnets. Instead, the eddy current separator uses powerful magnetic fields to push these metals away from the rest of the waste.
You can see how this works in the table below:
Non-Ferrous Metal | Description |
|---|---|
Aluminum | Commonly separated using ECS |
Copper | Frequently recovered with ECS |
Die-cast metals | Another type separated by ECS |
When you use an eddy current separator, you can separate nonferrous material like aluminum cans, copper wires, and die-cast parts from plastics, glass, and other waste. This process makes recycling more efficient and helps you recover valuable resources.
The purpose of an eddy current separator goes beyond just sorting metals. You use this technology to improve recycling rates and protect the environment. By separating non-ferrous metals from waste streams, you help reduce landfill use and promote resource recovery.
Did you know? Eddy current separators can process up to 10 tons of material per hour, depending on the machine and the type of waste. Some systems handle as much as 20 tons per hour per foot of width, making them ideal for large recycling operations.
Here are some key functions of an eddy current separator in waste management:
Efficient recovery of non-ferrous metals from various waste streams.
Important role in environmental protection and resource recycling.
Enhances competitiveness in the recycling industry.
You will find different types of eddy current separators for specific tasks. For example, some machines focus on small non-ferrous metals as tiny as 3mm, while others are designed for larger items like aluminum cans. This flexibility allows you to choose the right separator for your recycling needs.
If you want to separate nonferrous material quickly and accurately, an eddy current separator is one of the best tools available. It helps you recover valuable metals, supports sustainable practices, and gives your recycling business a competitive edge.
You see electromagnetic induction at the heart of how an eddy current separator works. When you place non-ferrous metals like aluminum or copper near a changing magnetic field, something interesting happens inside the metal. The magnetic field moves and creates swirling electrical currents called eddy currents. These currents form because of Faraday’s law of magnetic induction.
Eddy currents appear in conductive materials when exposed to changing magnetic fields.
The induced voltage inside the metal causes these currents to flow in circular paths.
These currents create their own magnetic fields, which push against the original magnetic field.
The interaction between the two magnetic fields produces a repulsive force. This force helps you separate non-ferrous metals from other materials.
You use this principle in recycling plants to recover valuable non-ferrous metals. The eddy current separator relies on electromagnetic induction to make the separation process fast and efficient. You can see this effect when aluminum cans or copper wires move through the machine. The eddy currents push these items away from the rest of the waste, making it easier for you to collect them.
Tip: Electromagnetic induction does not work on materials that do not conduct electricity. You only see eddy currents in metals like aluminum, copper, and other non-ferrous metals.
The magnetic rotor is the driving force inside every eddy current separator. You find this rotor spinning at high speeds beneath the conveyor belt. The rotor contains powerful magnets arranged in a specific pattern. As the rotor spins, it creates a rapidly changing magnetic field above the belt.
The design of the magnetic rotor, including the number of poles, affects the strength of the magnetic field.
High-grade rare earth magnets boost the effectiveness of the separator.
Different rotor configurations help you optimize the creation of eddy currents in non-ferrous metals.
The units vary essentially in one area, the number of poles. While all of our units do a remarkable job on UBC (Beverage Can) recovery, the standard 8-pole unit was designed just for this job. The 16 pole unit was initially designed for glass clean-up, though it excels in any application where recovery of smaller particles is required.
When you use an eddy current separator, the magnetic rotor creates a strong and dynamic magnetic field. As non-ferrous metals pass over the rotor, the field induces eddy currents inside them. These currents generate a repulsive force that lifts and ejects the metals from the conveyor belt. You can adjust the rotor’s speed and pole configuration to match the type of non-ferrous metals you want to recover. This flexibility allows you to improve the separation process and collect more valuable materials.
You see the magnetic rotor working together with electromagnetic induction to make the eddy current separator a powerful tool in recycling. The combination of these two principles lets you separate non-ferrous metals quickly and efficiently, supporting sustainable waste management and resource recovery.
When you use an eddy current separator, you see the power of repulsive force in action. As non-ferrous metals move through the changing magnetic field, eddy currents form inside each particle. These currents create a magnetic field that pushes against the original field, causing the metal to jump or move away from the rest of the material. This repulsive force depends on several factors, including the mass, conductivity, density, and shape of the non-ferrous metal particles.
Here is a table that shows how these variables affect the force:
Variable | Description | Unit |
|---|---|---|
m | Mass of the material | kg |
σ | Conductivity | S-1·m-1 |
ρ | Density | kg·m-3 |
s | Material shape factor | N/A |
You can use the formula: F = mσ/ρs to estimate the repulsive force. If you increase the conductivity or mass of the non-ferrous metal, the force becomes stronger. For example, aluminum shows a 20.30% increase in radial repulsion distance compared to other metals. Copper and silver also show noticeable differences, with copper increasing by 9.04% and silver by 7.46%. The shape and size of the particles also play a role. Block-shaped scraps have the largest separation distance, followed by rod and slice shapes.
Tip: The greater the conductivity and mass of the non-ferrous metal, the more effective the separation process becomes.
You rely on the conveyor belt system to move materials through the eddy current separator. The belt carries mixed waste over the magnetic rotor, where non-ferrous metals experience the repulsive force and separate from other materials. The design of the conveyor belt system is crucial for efficient separation.
Here is a table showing common specifications:
Specification | Details |
|---|---|
Overall Width | 66” (with 30” rotor) |
Overall Length | 137” (other lengths available) |
Belt | Polyurethane, hot bonded connection and sidewalls |
Belt Speed | 200 feet per minute fixed speed |
Belt Cleats | 2” tall, 18” spacing, high RF welded |
Eddy Current Rotor Diameter | Available in 12", 14", or 16" |
Motor (conveyor drive) | TECO-Westinghouse 3/4 HP, severe duty, TEFC |
Emergency Stop System | Cable-pull switch with cable and rigging |
You see that belt speed affects separation accuracy. If you set the belt speed too high, separation accuracy can decrease for certain shapes. Optimal speeds help you achieve better separation results. High nozzle pressure increases separation distance, while low pressure decreases it. The conveyor belt system is designed for durability and precision, ensuring that you recover high-quality non-ferrous metals from waste streams.
Designed for efficiency in material separation.
Improves the precision of metal separation, enhancing the quality of recycled materials.
Built to last in demanding environments.
When you operate an eddy current separator, you depend on both the repulsive force and the conveyor belt system to achieve fast and accurate separation of non-ferrous metals.
You find the magnetic rotor at the heart of every Eddy Current Separator. This component spins at high speeds and creates the changing magnetic field needed for separation. Manufacturers use rare earth magnets and a fiberglass shell with ceramic tiles to build the rotor. These materials give the rotor both strength and efficiency. The double-layer shell, made of fiberglass and heavy-duty stainless steel, protects the rotor from damage. This design leads to longer equipment life and lower maintenance costs.
The heavy-duty structural steel I-beam frame and oversized shafts in some models add even more durability. You can rely on these features to keep your Eddy Current Separator running smoothly, even in tough recycling environments.
The conveyor belt moves mixed materials through the Eddy Current Separator. You need to keep the belt in good condition to ensure efficient separation. Regular maintenance tasks help you avoid breakdowns and keep your system working at its best.
Inspect the belt for cracks and fraying.
Clean off dust and debris to maintain sorting efficiency.
Lubricate bearings and rollers at set intervals.
Calibrate the magnetic field strength and conveyor speed.
Adjust belt tension to prevent slippage or wear.
Replace worn parts as needed.
Train operators for proper handling and care.
A well-maintained conveyor belt ensures that non-ferrous metals reach the magnetic rotor at the right speed and position for effective separation.
After the Eddy Current Separator ejects non-ferrous metals, you need collection zones to gather the separated materials. The design of these zones plays a big role in maximizing recovery rates.
Magnetic rotors create strong eddy currents for effective separation.
Cantilevered frames allow for quick belt changes and precise splitter placement.
Different rotor configurations, such as eight-pole for large items or 22-pole for small pieces, improve recovery based on material size.
Eddy currents push metals into separate bins, isolating them from non-metallic waste.
This process helps you recover valuable resources like aluminum and copper efficiently.
You can see how each component works together to make the Eddy Current Separator a powerful tool for recycling and resource recovery.
You gain a major boost in efficiency when you use an eddy current separator in your recycling operation. The machine automates the separation of non-ferrous metals from waste, so you do not need to rely on manual sorting. This automation reduces labor costs and minimizes errors, which streamlines your recycling timeline. You can process more material in less time, making your operation more cost-effective.
Eddy current separators can achieve separation rates above 95% in commercial recycling plants, especially in mineral processing and municipal solid waste treatment. In some cases, such as e-waste recovery, efficiency may drop below 85% due to complex particle shapes and tightly bound materials.
You see the benefits of mechanization every day. The separator automatically sorts non-metallic materials from non-ferrous metals, which increases the value of your recycled products. You also notice that the configuration of the separator, such as the number of poles, affects how well it ejects different sizes and weights of metal particles. If the layer of material is too deep, lighter metals like aluminum and copper may get buried and escape separation. You can optimize your system to improve recovery rates and maximize efficiency.
Key efficiency benefits:
High separation rates for most waste streams
Reduced labor costs and fewer errors
Faster recycling timelines
Increased value of recovered metals
You help protect the environment when you choose eddy current separators for recycling. These machines reduce the need for mining new metals, which prevents habitat destruction, soil erosion, and water pollution. By increasing recycling rates and minimizing landfill waste, you lower the demand for raw materials. This process also cuts energy use and greenhouse gas emissions linked to extracting and processing virgin metals.
Manual sorting methods require more labor and energy, which can lead to greater environmental impacts. Eddy current separators offer a cleaner, more sustainable solution.
You see the positive effects in your community. More efficient recycling means less waste in landfills and more resources recovered for reuse. The separator helps you meet environmental goals and supports a circular economy.
Impact Area | ECS Benefit |
|---|---|
Landfill Reduction | Less waste sent to landfill |
Resource Recovery | More metals recycled |
Energy Savings | Lower energy consumption |
Emissions | Reduced greenhouse gases |
You make a difference every time you use advanced separation technology in your recycling process.
You see the eddy current principle at work every time you use an Eddy Current Separator to recover non-ferrous metals. This technology uses electromagnetic induction and a magnetic rotor to create a repulsive force, making recycling faster and more accurate. Recent advances show that:
Gas magnetic eddy current separators boost efficiency and help meet environmental standards.
Smart control systems and sensor-driven automation improve sorting and recycling rates in cities.
New modular designs and AI-driven automation make Eddy Current Separators more accessible and reliable.
You help drive sustainability and resource recovery by using these advanced systems. Eddy current separation stands out as a powerful, effective solution for modern recycling challenges.
You can separate non-ferrous metals like aluminum, copper, and die-cast metals from mixed waste. Eddy Current Separator technology works best with conductive metals that do not contain iron.
Eddy Current Separator machines automate the sorting process. You recover valuable metals faster and reduce manual labor. This technology increases the purity of recycled materials and boosts your overall recycling rates.
You operate an Eddy Current Separator safely by following manufacturer guidelines. Most machines include emergency stop systems and protective covers. Regular maintenance keeps your equipment running smoothly and protects you from accidents.
You can adjust the Eddy Current Separator’s rotor speed and pole configuration. These changes help you recover both small and large non-ferrous metal pieces. You select settings based on your recycling needs.
You inspect the conveyor belt, clean the rotor, and check for wear on moving parts. Lubricate bearings and replace damaged components. Routine maintenance ensures your Eddy Current Separator works efficiently and lasts longer.
