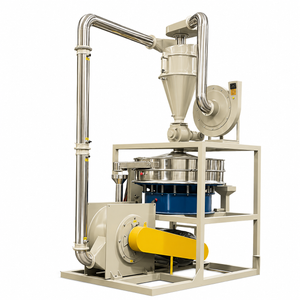

ALVA-PVC Grinding Machine

Our 600 / 800 / 1000 / 1200 Model PVC Pulverizers are high-capacity powder processing machines designed for large-scale plastic recycling plants, chemical enterprises, and renewable resource parks. They are mainly used for the intensive grinding and recycling of bulk plastics including PVC, PE, and PP.
Equipped with large-diameter grinding discs and high-power drive systems, these machines can efficiently process large-sized waste materials such as PVC pipes, wide plastic-steel profiles, and thick-walled plastic sheets. They are also compatible with pulverizing non-plastic materials like rubber, wood, and leather, realizing multi-material recycling applications.

Availability:

Quantity:



Inquire Add to Basket

PVC crusher PVC grinder PVC pulverizer PVC grinding equipment PVC crushing and grinding machine PVC powder preparation machine PVC waste pulverizer PVC plastic pulverizer PVC crusher machine

Product Details

1. Core Positioning

ALVA 600/800/1000/1200 Series PVC Pulverizers are high-capacity powder processing machines designed for large-scale plastics recycling plants, chemical companies, and renewable resource parks. They are mainly used for the intensive grinding and recycling of bulk plastics such as PVC, PE, and PP.

With large-diameter grinding discs and high-power drive systems, ALVA PVC pulverizers can efficiently process large waste materials including PVC pipes, wide plastic-steel profiles, and thick-walled plastic sheets. They are also compatible with pulverizing non-plastic materials like rubber, wood, and leather, enabling multi-material recycling applications.

This series offers a production capacity of 800–1500 kg/h and is equipped with an intelligent control system that optimizes feed rate, grinding speed, and dust removal efficiency, ensuring consistent powder quality during long-term continuous operation. The reinforced rotor and wear-resistant liners significantly enhance its ability to handle high-hardness and high-impurity waste materials.

ALVA PVC pulverizers are widely used in waste plastic centralized processing centers, plastic masterbatch production bases, plastic powder preparation facilities, and plastic recycling lines at municipal waste sorting centers.

2. Technical Parameters

Mode	Type 400	Type 600	Type 800	Type 1000
Cutter diameter	400mm	600mm	800mm	1000mm
Number of cutter discs	18 piece	28 piece	36 piece	42 piece
Motor power	18 - 30KW	45 - 55KW	75 - 90KW	90 - 110KW
Speed	3900(r/min)	3600(r/min)	2800(r/min)	2600(r/min)
Suction fan	2.2 - 3KW	4.5KW	5.5 - 11KW	7.5 - 15KW
Fan off	0.75(KW)	1.1(KW)	1.5(KW)	1.5(KW)
Vibrating screen	0.55KW600	1.1KW1000	1.1KW1200	1.5KW1500
Mill water	circulating water	circulating water	circulating water	circulating water
Grinding capacity	80 - 150(Kg/h)	200 - 400(Kg/h)	600 - 1000(Kg/h)	800 - 1500(Kg/h)
Installation dimensions	220013003000(mm)	300018003500(mm)	320018003700(mm)	350018003800(mm)

3. Crushing Range

4. Core Advantages

Precise Classification and High Powder Purity:The equipment's grading device (as evidenced by the complex screening structure in the image) precisely grades and screens the ground PVC powder, effectively separating powders of varying particle sizes and removing impurities. This ensures the high purity of the output powder, meeting the stringent requirements of downstream production processes, such as the raw material preparation for high-end PVC products.

Excellent Heat Dissipation and Reliable Operation: The equipment's structural layout (including appropriate spacing between components and heat dissipation design for power components) demonstrates excellent heat dissipation. This allows for rapid heat dissipation during long, high-speed grinding operations, preventing equipment failures caused by overheating. This ensures reliable and stable operation and reduces the need for maintenance downtime.

Smooth Feeding and Excellent Anti-clogging:

Smooth Feeding and Excellent Anti-clogging

The rational design of the feed inlet and associated conveying mechanisms ensures smooth entry of PVC material into the grinding chamber. During the grinding process, the unique chamber design effectively prevents material blockage, ensuring a continuous grinding process, improving overall production efficiency, and reducing cleanup time and material waste caused by blockages.

Excellent Sealing Performance and Low Powder Leakage:The equipment's excellent sealing design at all joints (such as pipe connections and the grinding chamber cover) effectively prevents powder leakage during the grinding process. This not only maintains a clean production environment and reduces dust pollution, but also reduces material loss, improves raw material utilization, and saves production costs for enterprises.

5. Product Application Range
